Product Overview

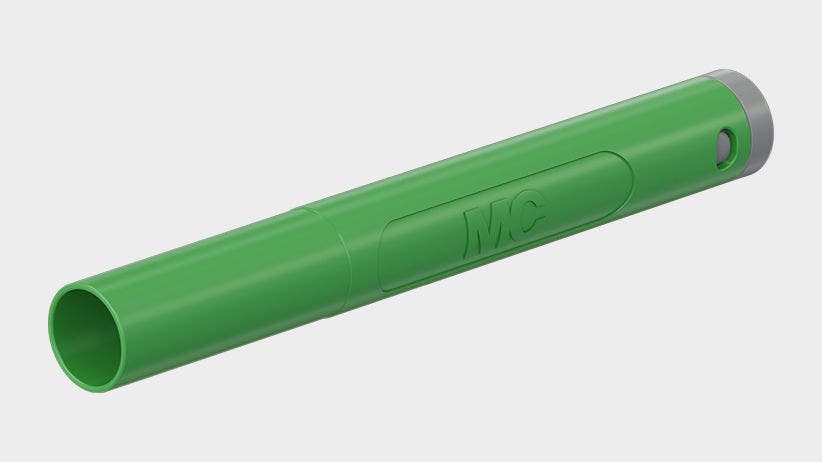

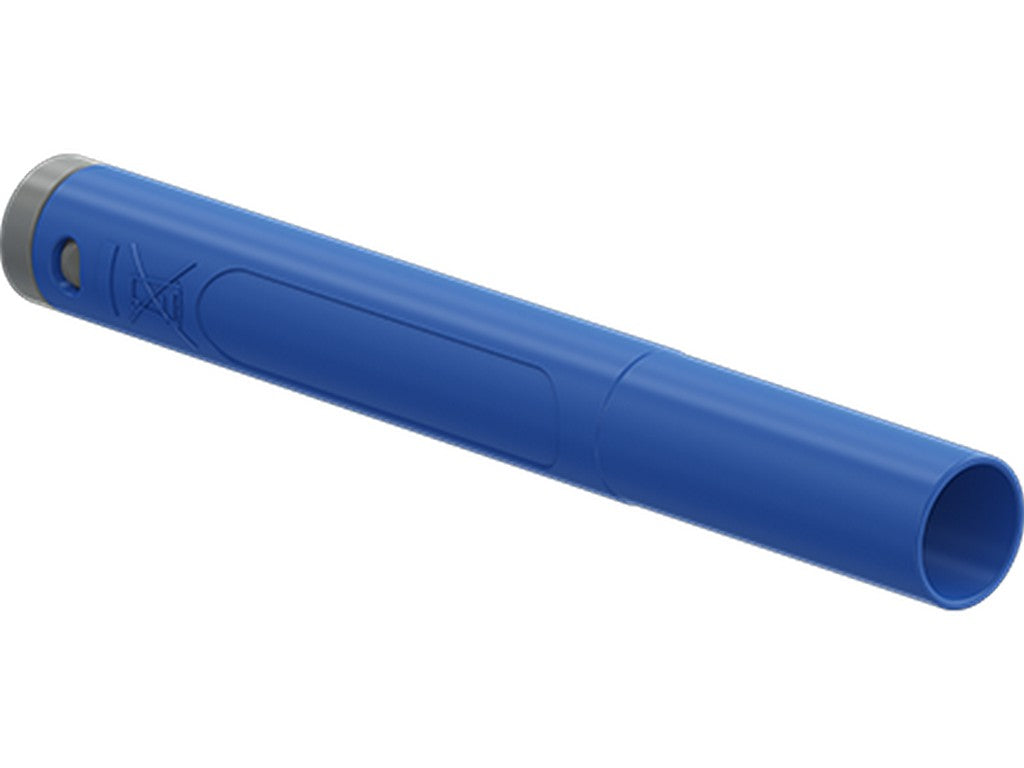

This in-line 4 mm plug, SACR25-4N-39-TW from STAUBLI, is an extra-slim test accessory designed for self-assembly of test leads. The SACR25-4N-39-TW features a spring-loaded MULTILAM contact, a rigid insulating sleeve, and uses crimp connection for conductor termination.Functional Features
- In-line, extra-slim design with plug system diameter: 4 mm.
- Spring-loaded MULTILAM contact for contact pressure and electrical connection.
- Rigid insulating sleeve for mechanical support and insulation.
- Crimp connection for conductor termination.
Documentation
The manufacturer's technical datasheet contains the verified details and the date of the document (08.2024).
View datasheet from the manufacturer
Typical Applications
The SACR25-4N-39-TW is intended for self-assembly of test leads and is specified as a test accessory according to IEC EN 61010-031. The product is used where an extra-slim, 4 mm in-line plug connection for test leads is required.
Specifications
- Product name: SACR25-4N-39-TW (item number 66.2044-*)
- Diameter of plug system: 4 mm
- Outer diameter: 8.0 mm
- Max. cable diameter: 3.9 mm
- Max. conductor cross-section: 2.5 mm²
- Contact material (base): CuZn
- Surface treatment contact: Ni (nickel)
- Rated values: 1000 V, CAT II / 32 A and 600 V, CAT III / 32 A
- Connection type: Crimp
- Contact principle: Spring-loaded MULTILAM
- Insulating sleeve: Rigid
- Standard: Test accessory acc. to IEC EN 61010-031
- Approval: UR
- Datasheet date: 08.2024
Sources
- Manufacturer's datasheet: View datasheet from the manufacturer
