STAUBLI 662044-25

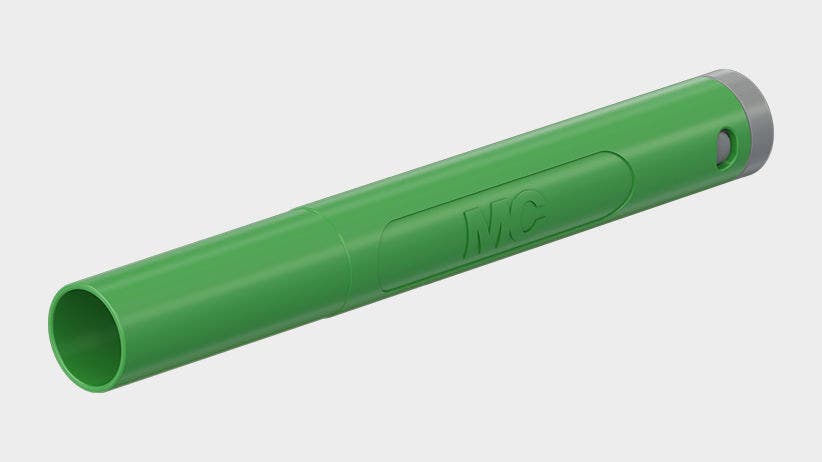

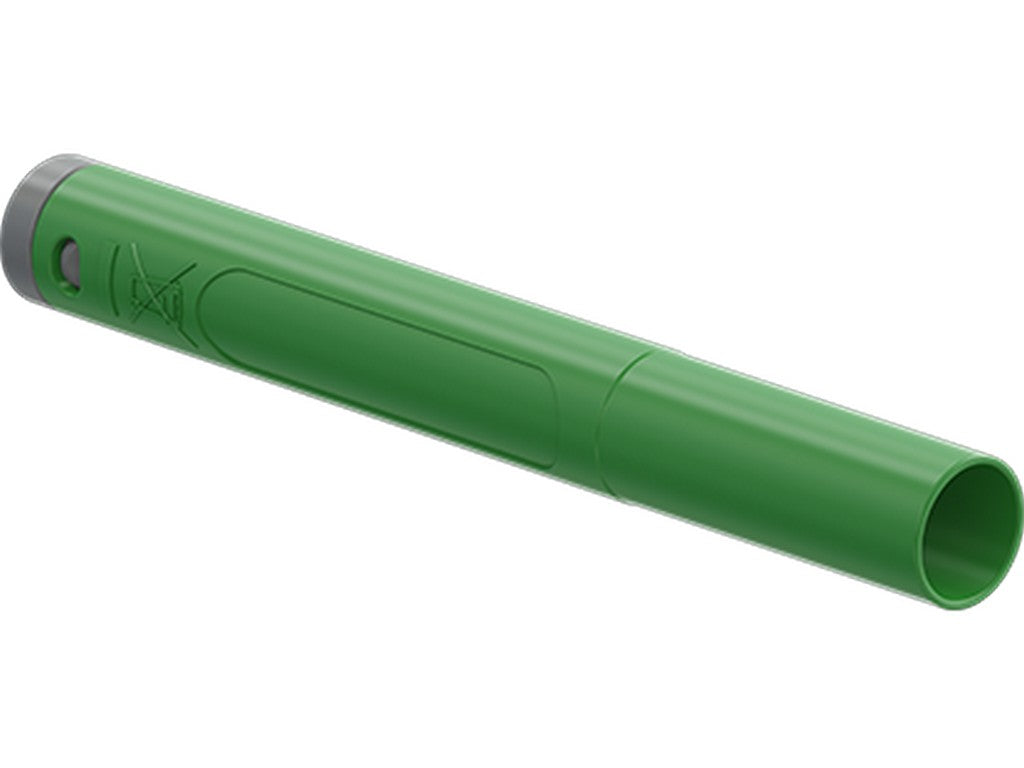

The STAUBLI 662044-25 is an extra slim 4 mm plug for building test leads. It is used when assembling test leads yourself in a professional test setup, and where a secure, crimped connection is desired instead of a loose or temporary connection.
The plug features a spring-loaded MULTILAM contact, which provides stable electrical contact during use. At the same time, it has a rigid insulating sleeve, so the finished lead has a more robust and shielded construction. The outer diameter is 8.0 mm, and the contact surface is nickel-plated copper-zinc.
In practice, it is a spare part and component for test and measurement leads, where high demands are placed on safety and reliability. It is classified as test accessory according to IEC EN 61010-031 and is rated for 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A. This makes the relevant information easy to read when the plug is to be used in a specific measurement task.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 662044-25
- Item type: In-line, extra slim Ø4 mm plug for self-assembly of test leads
- Contact: Spring-loaded MULTILAM
- Connection: Crimp connection
- Insulation: Rigid insulating sleeve
- Diameter of plug system: 4 mm
- Outer diameter: 8.0 mm
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Contact material: CuZn
- Surface treatment: Ni
- Standard: IEC EN 61010-031
- Approval: UR
