STAUBLI 662044-24

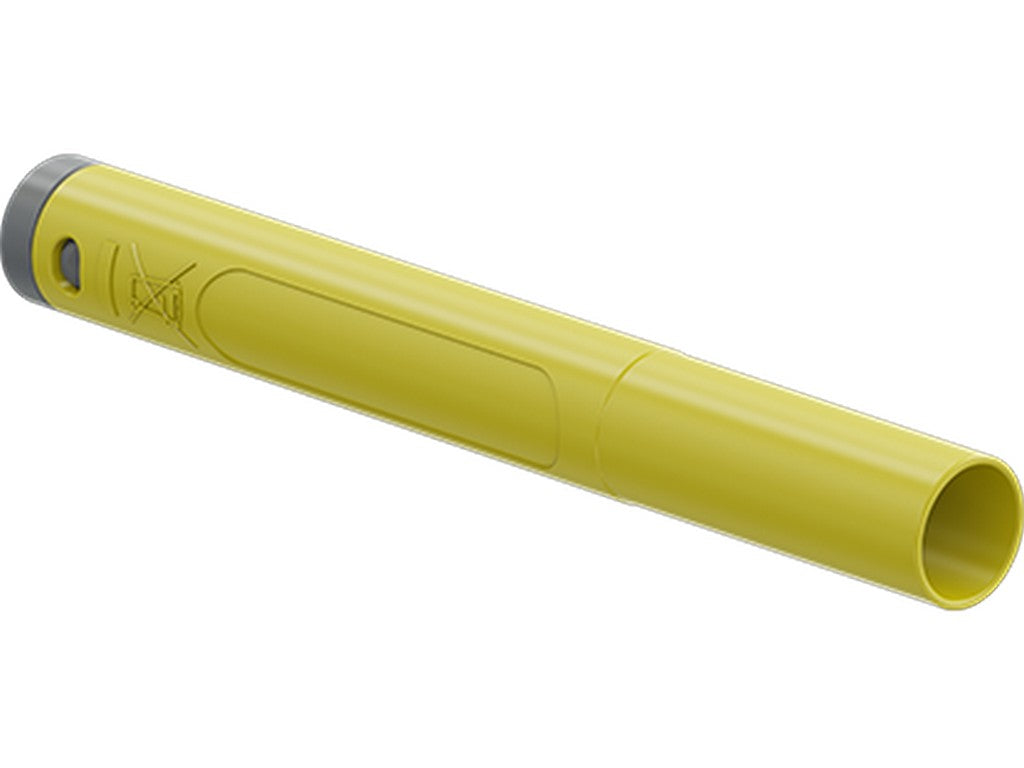

The STAUBLI 662044-24 is an extra slim 4 mm plug for test leads, designed for assembling measurement leads in your own setup. It is an in-line plug, meaning the connection is built directly into the wire, and the rigid insulation sleeve provides a robust termination around the contact.
Internally, the plug uses a spring-loaded MULTILAM contact, which is the part that provides the actual contact surface. For the installer, it is relevant that the connection is made with crimp, so the wire can be terminated in a controlled and consistent manner. This is well suited when working with test equipment where both mechanics and electrical contact must be in order.
The plug is rated for 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A and is specified according to IEC EN 61010-031. The contact material itself is CuZn with a nickel surface treatment, and the outer diameter is 8.0 mm.
Typical applications
Used for building test leads and measurement leads in professional environments where a 4 mm connection with solid mechanical execution and standardized termination is desired.
Specifications
- Manufacturer: STAUBLI
- MPN: 662044-24
- 4 mm plug, in-line and extra slim
- Spring-loaded MULTILAM
- For self-assembly of test leads
- Crimp connection
- Rigid insulation sleeve
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Contact material: CuZn
- Surface treatment: Ni
- Outer diameter: 8.0 mm
- Standard: IEC EN 61010-031
- UR indicated in datasheet
See datasheet from the manufacturer
