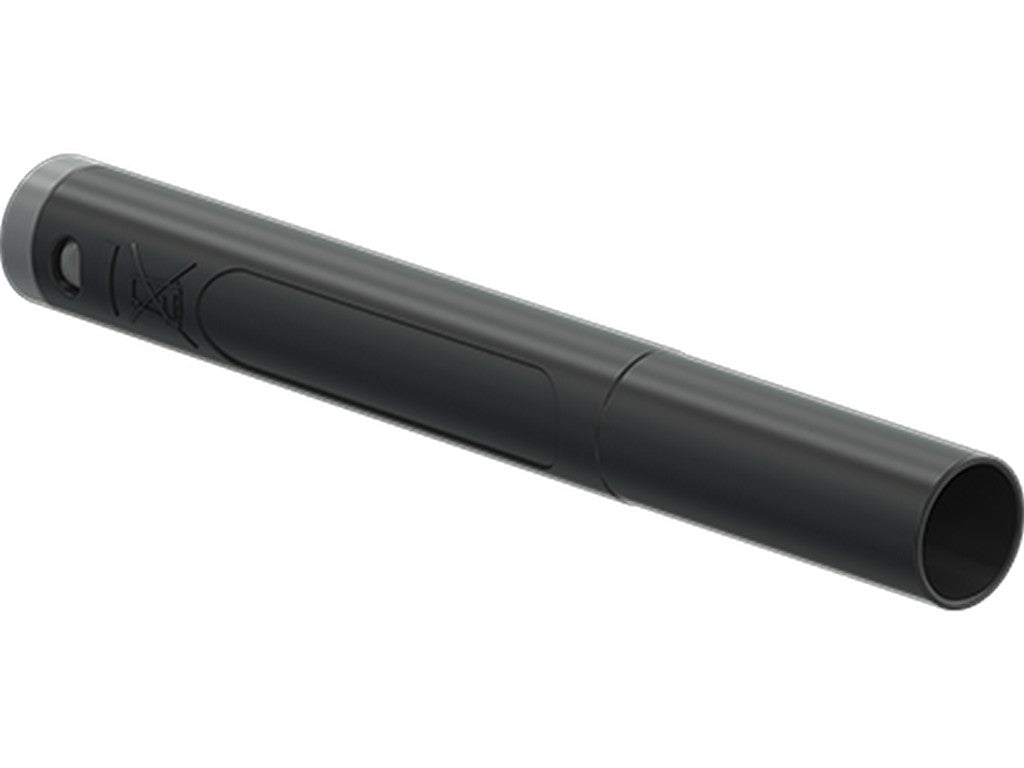

STAUBLI SACR25-4N-39-TW
The STAUBLI SACR25-4N-39-TW is an extra-slim 4 mm plug for building test leads. It is used when you want to make your own measuring leads with a compact and robust plug connection, and where a crimp connection is needed at one end.
The plug has a spring-loaded MULTILAM contact and a rigid insulating sleeve. In practice, this means that you get a technical design made for test and measurement tasks where safe handling and a stable electrical contact are required. The slim design makes it suitable when space around the connection is limited.
It is rated for 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A. The cable diameter can be up to 3.9 mm, and the conductor cross-section can be up to 2.5 mm². The outer diameter is 8.0 mm. The base material of the contact is CuZn with nickel surface treatment.
The item is part of Stäubli's 4 mm test accessories according to IEC EN 61010-031.
Typical Applications
Typically used for self-assembly of test leads in measurement tasks where a 4 mm plug with crimp connection and compact design is required.
Specifications
- Manufacturer: STAUBLI
- MPN: 662044-21
- Datasheet item number: 66.2044-*
- Plug system: 4 mm
- Type: in-line, extra slim
- Contact: spring-loaded MULTILAM
- For self-assembly of test leads
- Insulation: rigid insulating sleeve
- Connection: crimp connection
- Rated voltage/current: 1000 V, CAT II, 32 A
- Rated voltage/current: 600 V, CAT III, 32 A
- Max. cable diameter: 3.9 mm
- Max. conductor cross-section: 2.5 mm²
- Outer diameter: 8.0 mm
- Contact base material: CuZn
- Contact surface treatment: Ni
- Standard: IEC EN 61010-031
See datasheet from the manufacturer
