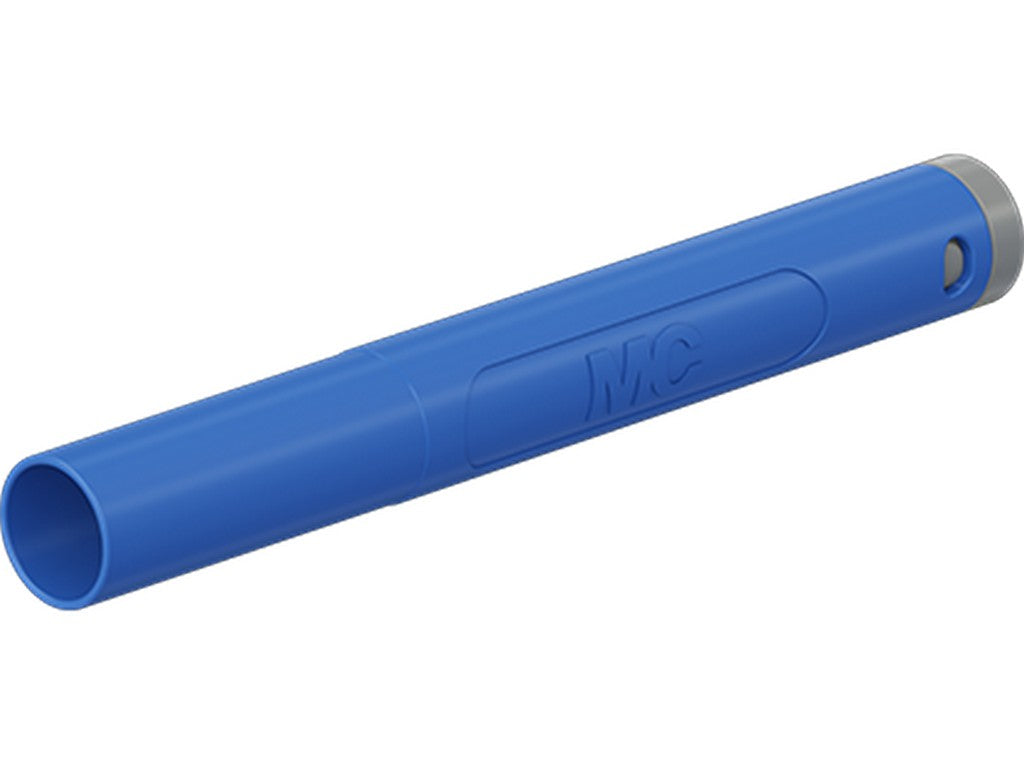

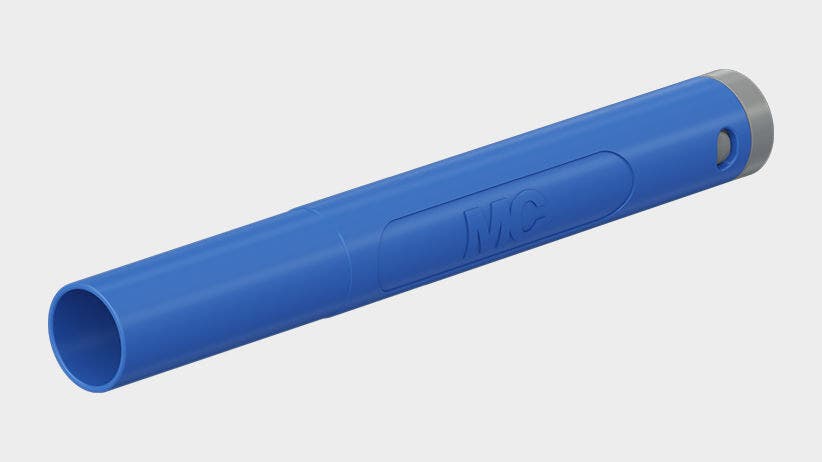

STAUBLI SAL-4N-39-TW
The SAL-4N-39-TW is an extra slim 4 mm plug for assembling test leads. It is an in-line model, meaning the wire passes straight through the connector, making it suitable for creating a simple and robust test lead assembly. The spring-loaded MULTILAM contact is the part that provides the actual contact surface, and it is chosen for test equipment where a secure and stable connection is desired.
The plug has a rigid insulation sleeve and solder connection, making it suitable for professional cable assembly where the wire is built manually. It accepts cables up to Ø 3.9 mm and 2.5 mm², and its outer diameter is 8.0 mm. The base material of the contact is CuZn with a nickel surface treatment.
In practice, it is used where custom test leads are assembled for measurement tasks. It is rated for 1000 V, CAT II and 600 V, CAT III, with a current rating of 32 A, so it is designed for testing and measurement under demanding electrical conditions.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 662040-23
- Product: SAL-4N-39-TW
- In-line, extra slim 4 mm plug
- Spring-loaded MULTILAM contact
- For self-assembly of test leads
- Rigid insulation sleeve
- Solder connection
- Rated voltage: 1000 V, CAT II
- Rated voltage: 600 V, CAT III
- Rated current: 32 A
- Max. cable diameter: Ø 3.9 mm
- Cross-section: 2.5 mm²
- Contact material: CuZn
- Contact surface: nickel
- Outer diameter: 8.0 mm
