STAUBLI SAL-4A-39-TW

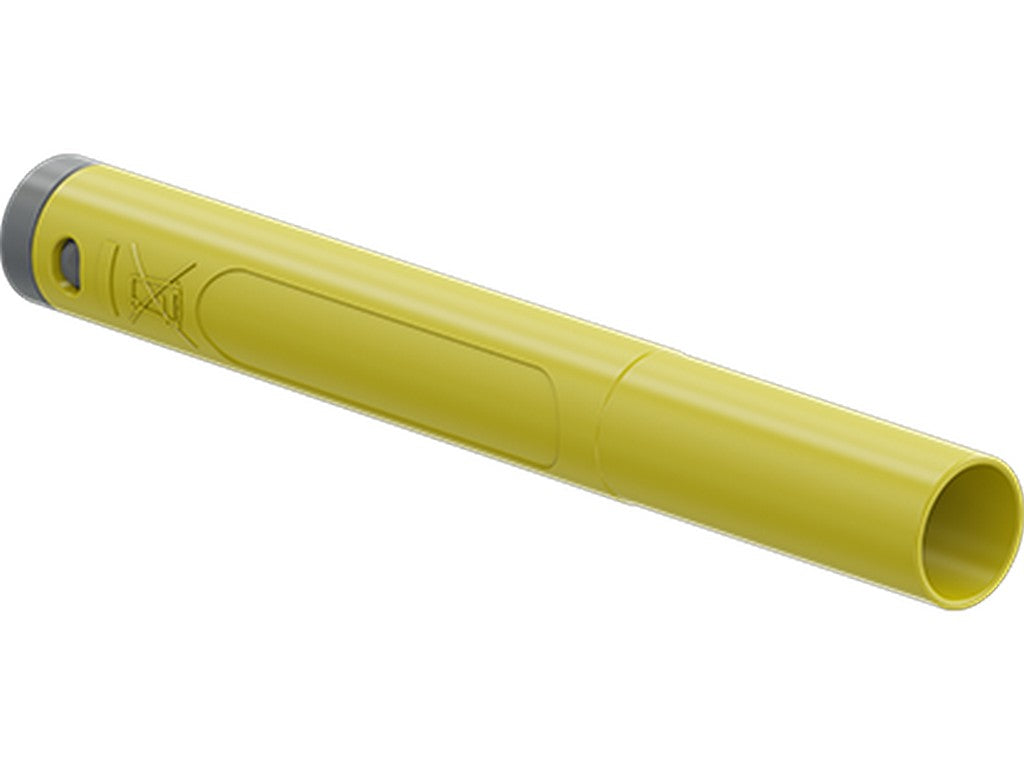

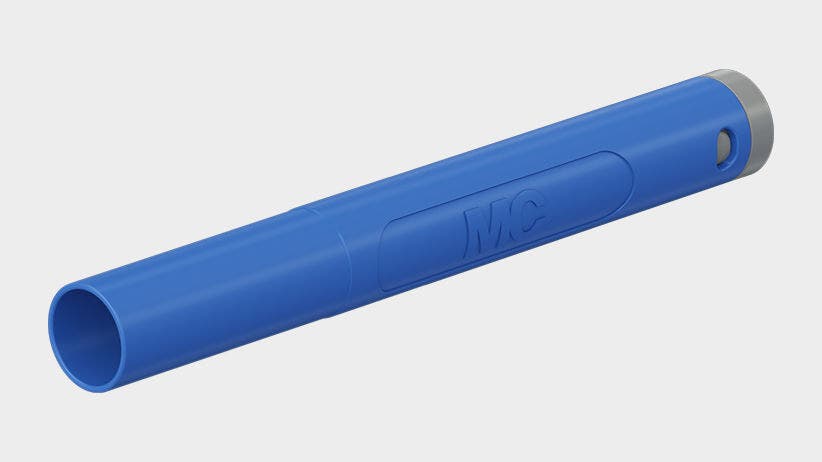

The STAUBLI SAL-4A-39-TW is an extra-slim 4 mm plug for self-assembly of test leads. It is used when building a test lead with a compact plug that is still intended for professional measurement technology and fixed workflows in the workshop or production.
Inside, there is a spring-loaded MULTILAM contact, which is an important part of the plug's contact principle. Together with the rigid insulating sleeve, this provides a robust construction, designed with both handling and electrical connection in mind. The connection is made by soldering, so the conductor is mounted directly in the plug.
The plug is rated for 1000 V in CAT II and 600 V in CAT III, as well as 32 A. This means that it can be used in test and measurement tasks where clear requirements are placed on both voltage and current. For the conductor, the maximum outer diameter is 3.9 mm, and the maximum cross-sectional area is 2.5 mm². The contact surface of this variant is gold-plated.
If you want to assemble your own test leads, this is a spare part and component that provides a compact and standardized 4 mm connection for professional use.
Specifications
- Manufacturer: STAUBLI
- MPN: 662041-24
- Product: SAL-4A-39-TW
- Type: in-line, extra-slim Ø4 mm plug for self-assembly of test leads
- Contact principle: spring-loaded MULTILAM
- Connection: soldering
- Insulation: rigid insulating sleeve
- Rated voltage: 1000 V CAT II / 600 V CAT III
- Rated current: 32 A
- Max. outer diameter of conductor: 3.9 mm
- Max. conductor cross-section: 2.5 mm²
- Contact surface treatment: Au
- Plug system diameter: 4 mm
- Outer diameter: 8.0 mm
- Test accessories according to IEC EN 61010-031
- Datasheet: See datasheet from the manufacturer
