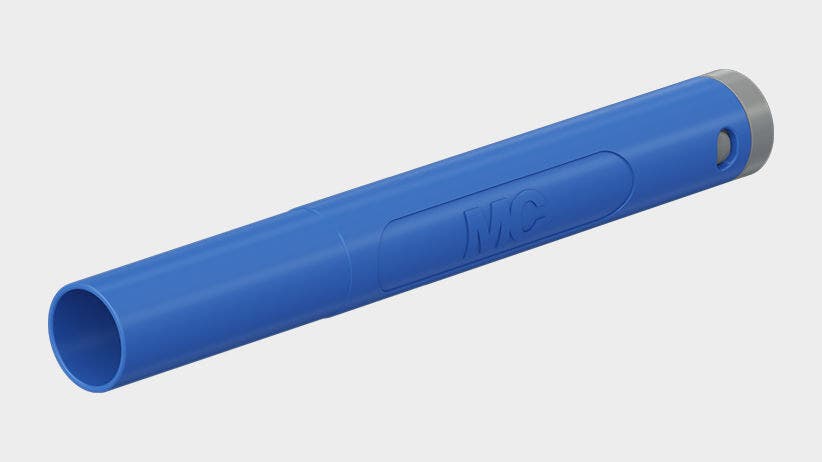

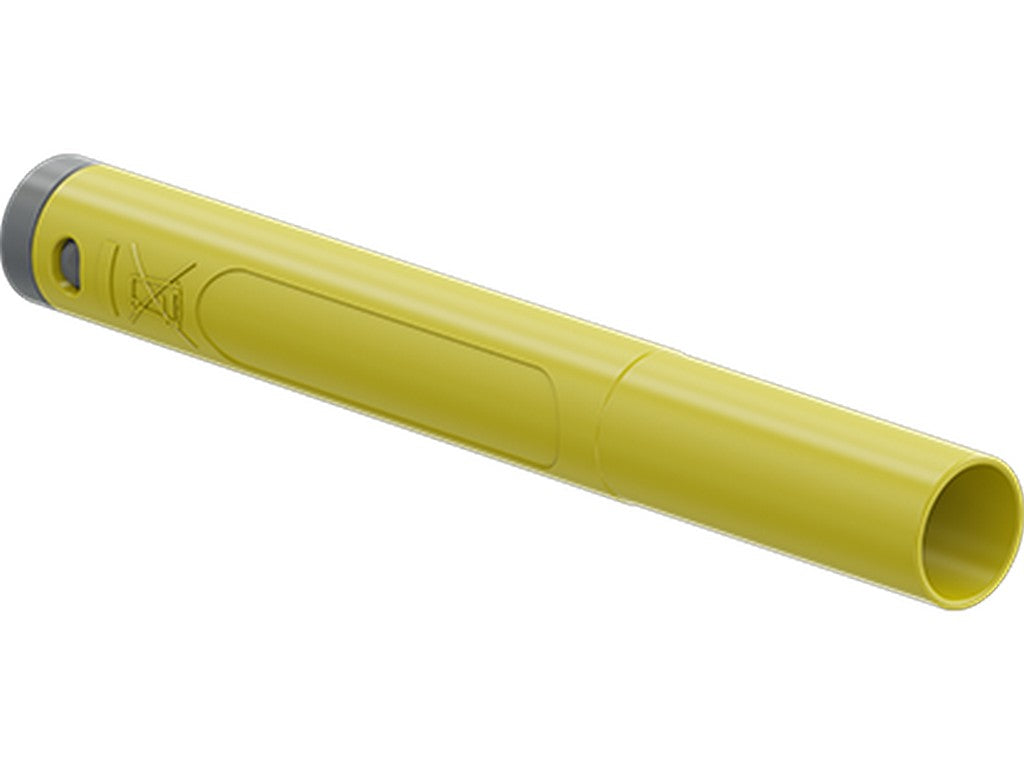

STAUBLI SAL-4N-39-TW
The STAUBLI SAL-4N-39-TW is an extra-slim 4 mm plug for test leads, assembled manually. It is used when making a test lead or a measuring lead with a soldered connection at one end. The fixed insulation sheath provides a robust construction, and the spring-loaded MULTILAM contact is part of how the plug achieves a stable electrical connection.
It is intended as a test accessory for professional measurement work where both safety and a compact design are required. With rated values of 1000 V in CAT II and 32 A, and 600 V in CAT III and 32 A, it fits into many common test and measurement situations where equipment for test leads and connections is used.
The plug is designed for soldered connection and can be used with cable diameters up to 3.9 mm and conductor cross-sections up to 2.5 mm². The contact material is CuZn with nickel surface treatment, and the outer diameter is 8.0 mm. As a test accessory according to IEC EN 61010-031, it is placed in the category typically chosen when the solution is to be part of measuring equipment used in a professional environment.
See datasheet from the manufacturer
Typical applications
- Self-assembly of test leads
- Creation of measuring leads for professional test equipment
- Connections where an extra-slim 4 mm plug is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 662040-24
- Product name: SAL-4N-39-TW
- Description: In-line, extra-slim Ø 4 mm plug for self-assembly of test leads
- Connection: Solder connection
- Contact: Spring-loaded MULTILAM
- Rated value: 1000 V CAT II / 32 A
- Rated value: 600 V CAT III / 32 A
- Max. cable diameter: 3.9 mm
- Max. conductor cross-section: 2.5 mm²
- Outer diameter: 8.0 mm
- Contact material: CuZn
- Surface treatment: Nickel
- Standard: IEC EN 61010-031
- GTIN/EAN: not specified
