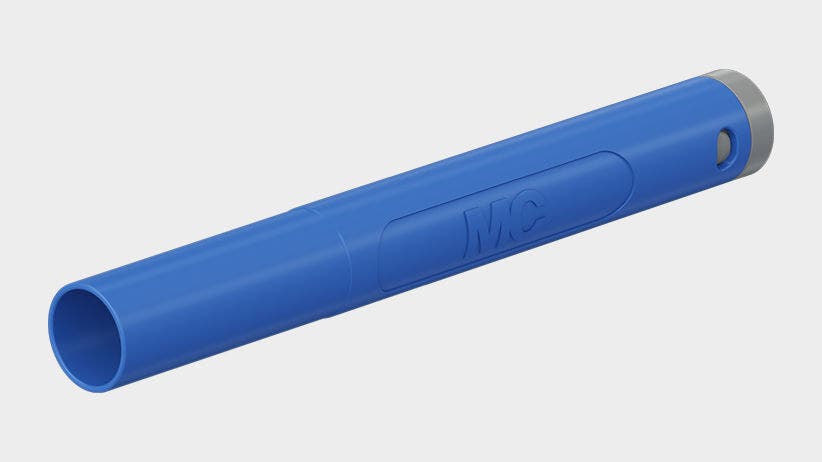

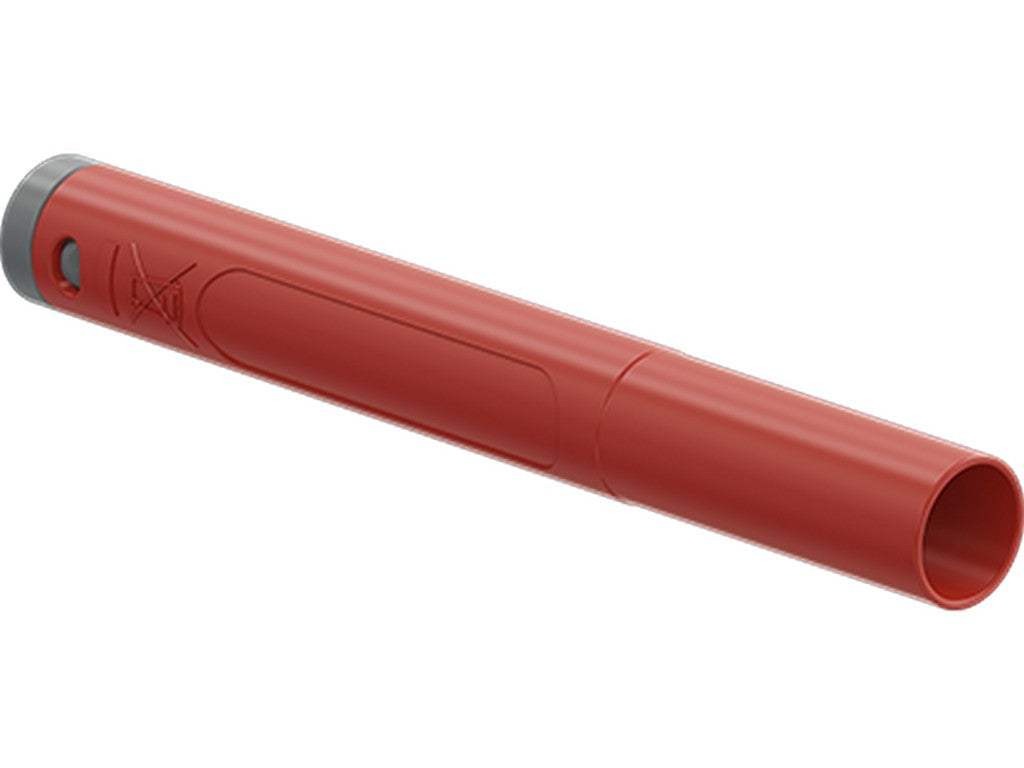

STAUBLI SAL-4N-39-TW
The STAUBLI SAL-4N-39-TW is an extra-slim 4 mm plug for building your own test leads. It is used when you want to create a test lead with a solder connection and also have a compact plug end that fits professional test equipment.
The plug features a spring-loaded MULTILAM contact, which provides a secure contact surface, and it comes with a rigid insulating sleeve. The outer diameter is 8.0 mm, and it can be used with cables up to Ø 3.9 mm / 2.5 mm². This makes it suitable as a component in custom-built test leads where requirements for space, contact, and handling are all critical.
The electrical ratings are 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A. This means it is designed for testing and measurement tasks within the specified categories and loads. The product is designated as a test accessory according to IEC EN 61010-031.
Typical applications
The plug is typically used in the self-assembly of test leads for electrical measuring equipment, where a soldered connection and a compact 4 mm plug are required.
Specifications
- Manufacturer: STAUBLI
- MPN: 662041-22
- Part number at Stäubli: 66.2040-*
- Type: In-line, extra-slim Ø 4 mm plug
- Contact: Spring-loaded MULTILAM
- Connection: Solder connection
- Insulation: Rigid insulating sleeve
- Outer diameter: 8.0 mm
- Max cable: Ø 3.9 mm / 2.5 mm²
- Rated voltage / current: 1000 V CAT II / 32 A
- Rated voltage / current: 600 V CAT III / 32 A
- Contact material: CuZn
- Contact surface: Ni
- Standard: IEC EN 61010-031
- Product category: Test accessory
