Product Overview

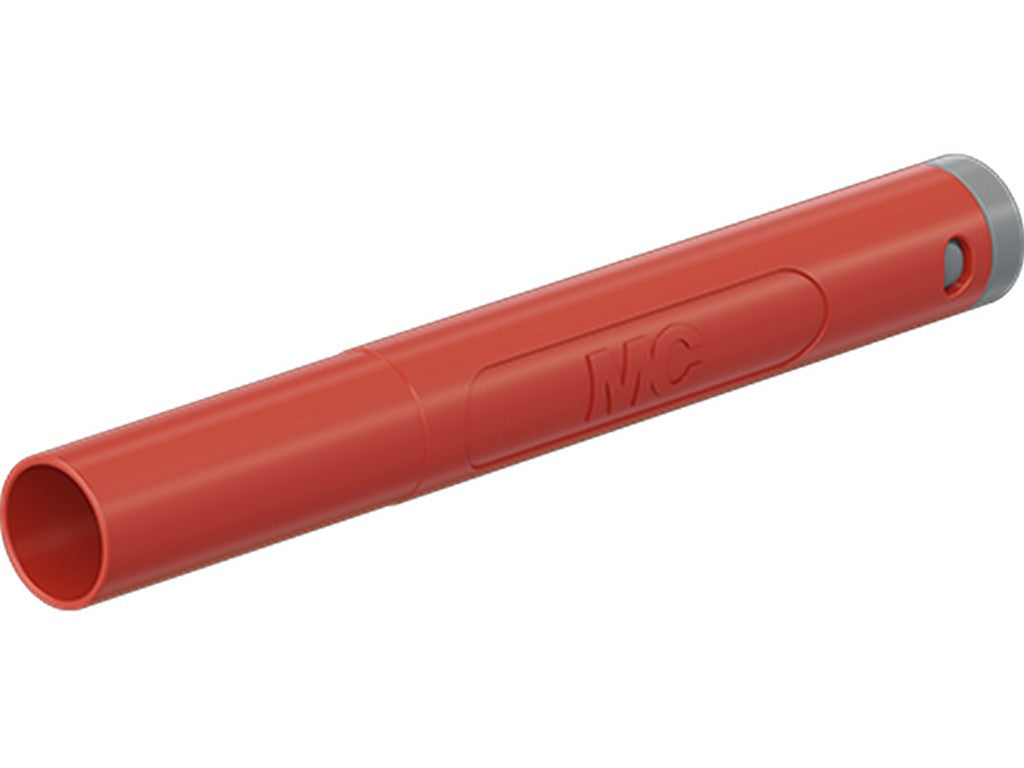

The SAL-4N-39-TW from STAUBLI is an in-line, extra-slim 4 mm plug designed for self-assembly of test leads. The product features a spring-loaded MULTILAM contact and a rigid insulating sleeve construction. Connection is made by soldering.Technical Description
- In-line design with ø 4 mm plug system.
- Spring-loaded MULTILAM contact for electrical connection.
- Rigid insulating sleeve.
- Solder connection.
Documentation
For technical details and official documentation, please refer to the manufacturer's datasheet:
View datasheet from manufacturerTypical Applications
The SAL-4N-39-TW is specified for the self-assembly of test leads, as indicated in the manufacturer's documentation. The description in the datasheet explicitly states its use for the self-assembly of test leads.
Specifications
- Product Name: SAL-4N-39-TW
- Item Number: 66.2040-*
- Plug system diameter: 4 mm
- Rated values: 1000 V (CAT II), 32 A / 600 V (CAT III), 32 A
- Surface treatment, electrical contact: Ni (nickel-plated)
- Base material, electrical contact: CuZn
- Outer diameter: 8.0 mm
- Acceptable cable outer diameter: up to 3.9 mm (max. 2.5 mm²)
- Connection type: solder connection
- Test accessories in accordance with: IEC EN 61010-031
- Approvals: UR (indicated in datasheet)
- Datasheet date: 08.2024
