STAUBLI SAL-4N-39-TW

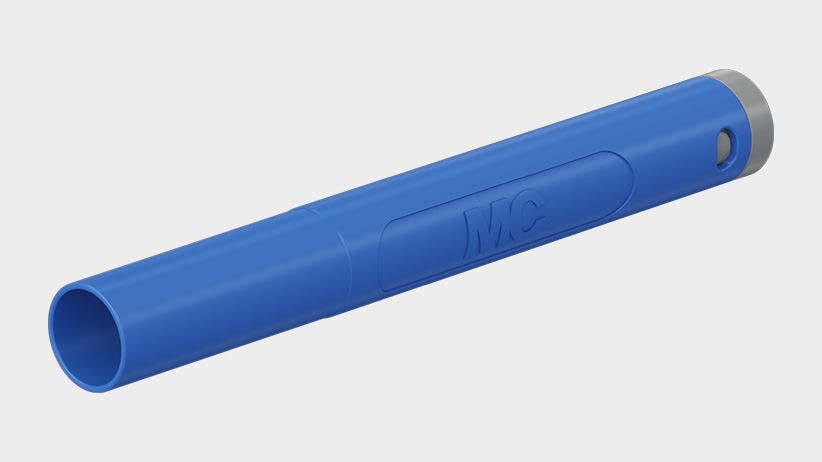

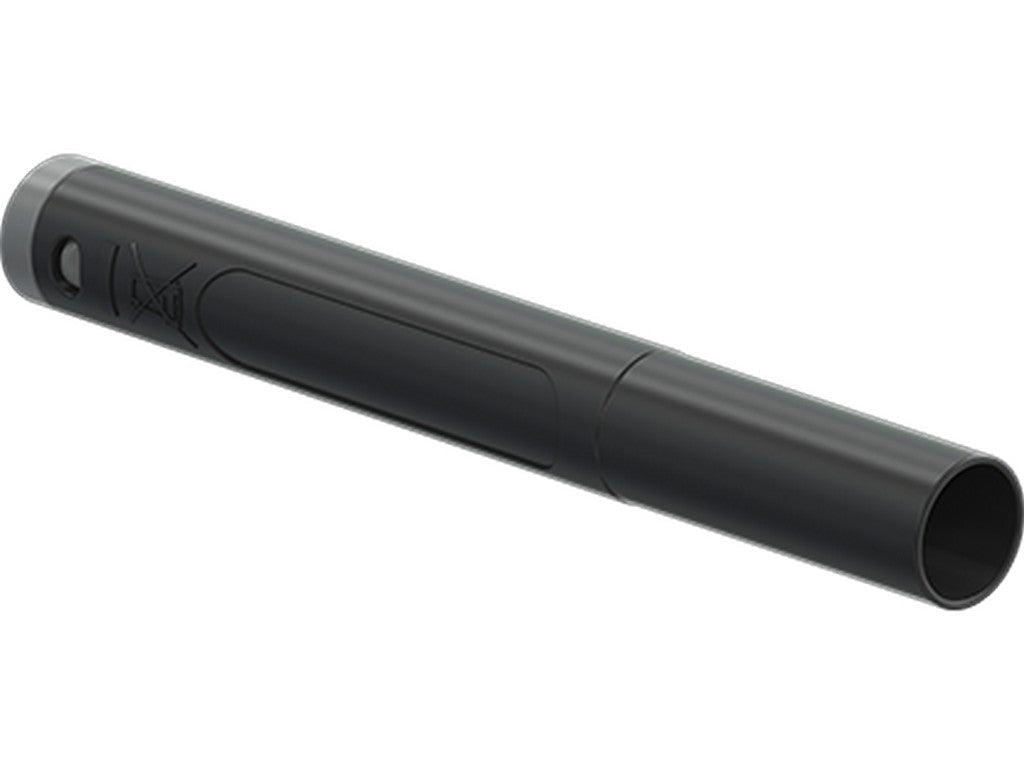

The STAUBLI SAL-4N-39-TW is an extra slim 4 mm plug for DIY test lead assembly. It is used when assembling a test lead with a robust, permanently mounted connection, and where a compact solution is also required.
Inside, there is a spring-loaded MULTILAM contact, which provides a secure electrical contact in the 4 mm system. The plug has a rigid insulating sleeve and a solder connection, so it can be used in a professional test lead that is assembled manually. The outer diameter is 8.0 mm, and the contact surface is nickel-plated. The contact material is CuZn.
It is specified as test accessory according to IEC EN 61010-031 and is UR approved. The rated values are 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A. This makes it relevant for measurement tasks where requirements are placed on both insulation, load, and correct classification of the accessories.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 662041-21
- Product designation: SAL-4N-39-TW
- Type: In-line, extra slim Ø 4 mm plug
- Application: DIY test lead assembly
- Contact: Spring-loaded MULTILAM
- Connection: Solder connection
- Insulation: Rigid insulating sleeve
- Outer diameter: 8.0 mm
- Rated voltage/current: 1000 V, CAT II, 32 A
- Rated voltage/current: 600 V, CAT III, 32 A
- Contact surface: Nickel
- Contact base material: CuZn
- Standard: IEC EN 61010-031
- Approval: UR
