Product Overview

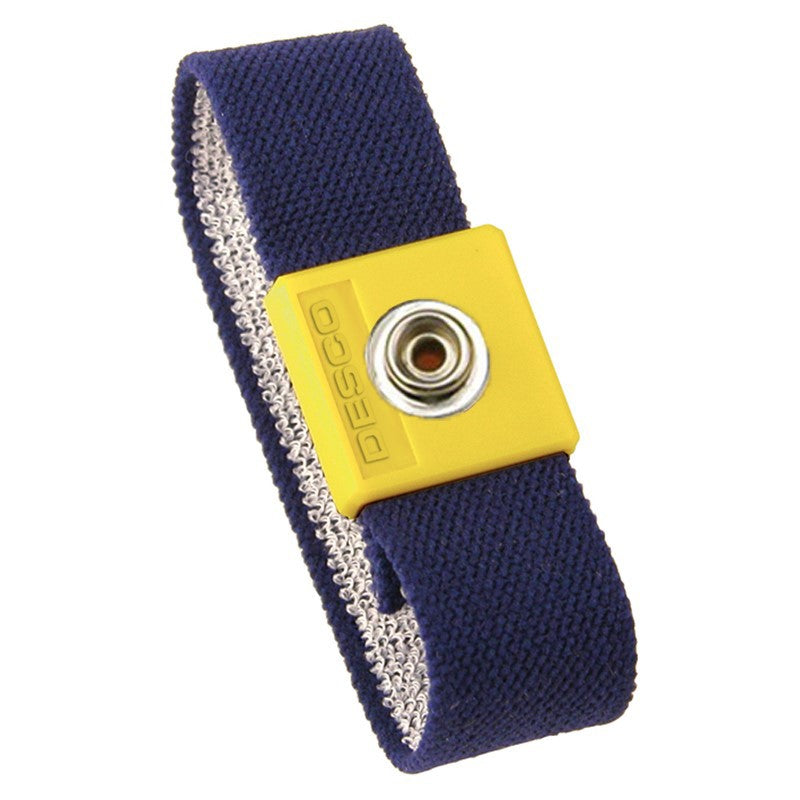

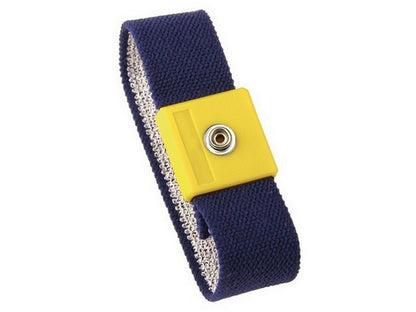

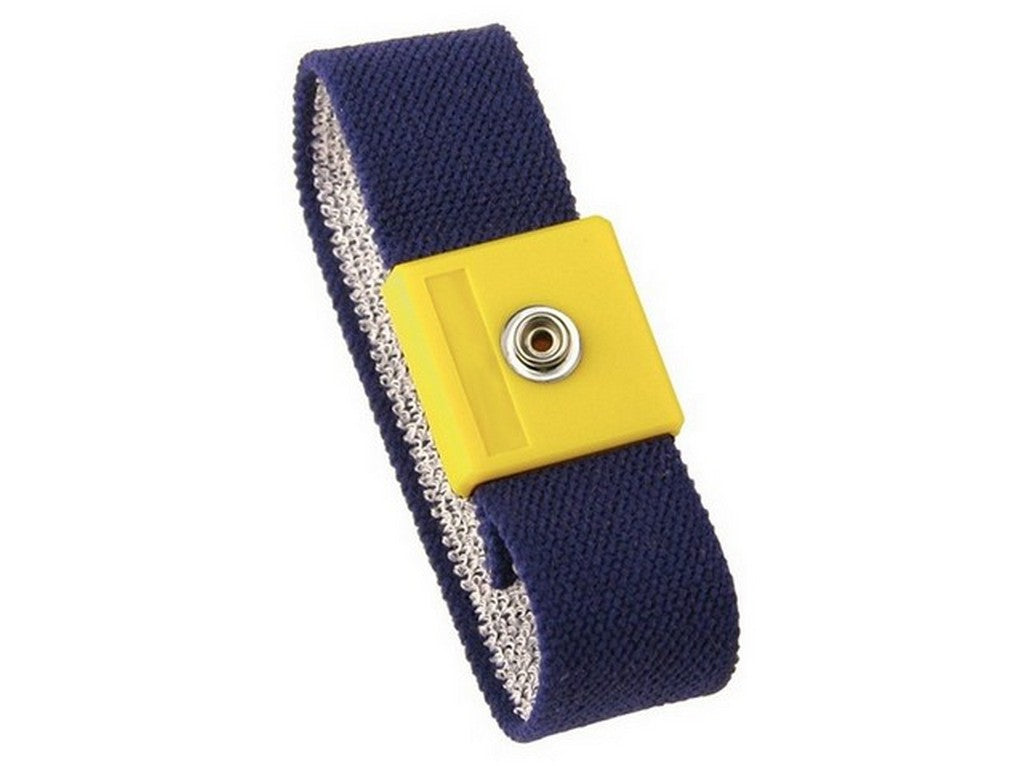

This Adjustable Elastic Wristband (DESCO part 229978) is a wrist strap for personnel ESD grounding. The product is designed as an elastic, widely adjustable textile wristband with conductive fibers on the inside and a 10 mm stud mounted. The wristband is dark blue and is designed without metal in contact with the skin as an alternative for people with skin allergies.Documentation
View manufacturer's datasheetTypical Applications
- Used for personnel ESD grounding in connection with handling ESDS (electrostatic discharge sensitive devices) as specified in the manufacturer's documentation.
Technical Notes
The Adjustable Elastic Wristband (DESCO part 229978) is intended to function as part of a wrist strap system consisting of the wearer, ground cord, and person. The wristband is intended to be used with a coiled cord that includes a 1 megohm current limiting resistor to meet requirements related to EN 61340-5-1, as mentioned by the manufacturer.
Specifications
- Manufacturer: DESCO
- Product Name / Part Number: Adjustable Elastic Wristband (DESCO part 229978)
- Color: Dark Blue
- Stud: 10 mm stud mounted
- Contact material: No metal in skin contact (option for people with skin allergies)
- Inner surface resistance: < 1 x 10^5 ohm (Test method: ANSI/ESD S1.1 (5.2))
- Outer surface resistance: > 1 x 10^7 ohm (Test method: ANSI/ESD S1.1 (5.2))
- Circumference: Adjustable from 120 mm to 200 mm
- Inner material: Conductive fibers on the inside
- Design requirements: Intended for use with coiled cord with 1 MΩ resistance to meet EN 61340-5-1 requirements
- Other: Desco logo molded into the buckle
Source: Manufacturer's datasheet (see documentation above).
