This heating element from WELLER

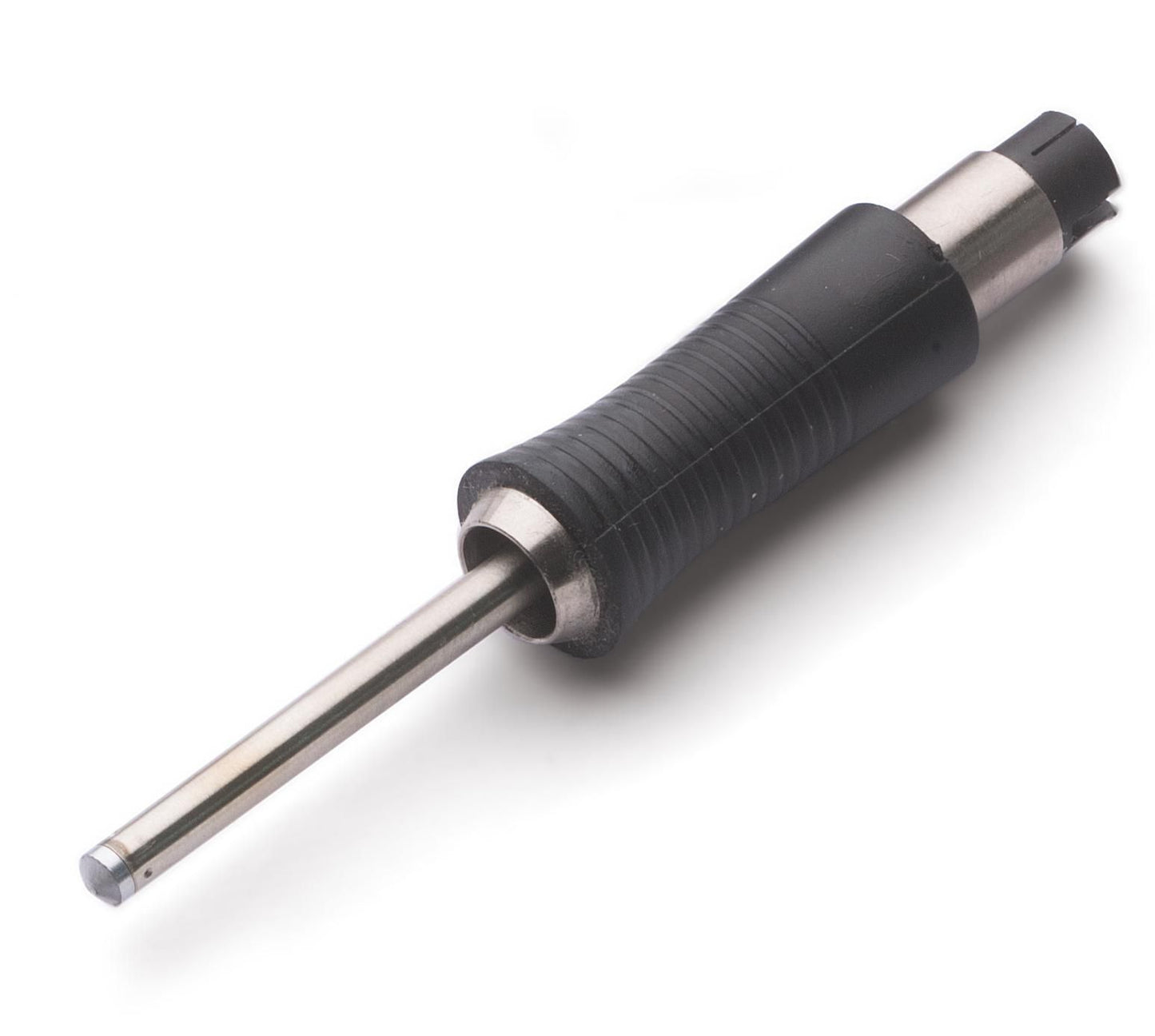

The Weller Heating Element WTP/WXP 90 is a replaceable heating element designed for use in Weller WTP and WXP 90 soldering irons. The product is identified on the manufacturer's website under part number T0058768725N and is specified as a 90 W element with a chisel-tip (tip type THM WT XNT). The description below is based on information published by the manufacturer.
Technical overview
- Manufacturer: WELLER
- Part number / Manufacturer part number: T0058768725N
- Power: 90 W
- Length: 0.9 in (24 mm)
- Diameter: 3.0 mm
- Heating time (approximate): 7 seconds (50–350 °C)
- Usable temperature range (tool-dependent): 50–450 °C
- Temperature accuracy: ±9 °C
- Tip shape: Chisel
- Tip type: THM WT XNT
- Compatible barrel: T0058768724
- ESD-safe: Yes
- Quantity per package: 1
- Integrated Direct Extraction reference: T0052918599 (stated by manufacturer)
- UPC: 037103311856 (stated by manufacturer)
- Product family: Heating Elements for Soldering Tools
- Weight (catalogue): 15.00 kg (stated in manufacturer's catalogue data)
Typical applications
The Weller Heating Element WTP/WXP 90 is used as a replacement heating element in Weller WTP 90 and WXP 90 soldering irons. The element is intended to restore or maintain heat delivery in these specific tools and can be inserted into the compatible barrel T0058768724.
Notes
All stated parameters are taken from the manufacturer's product information. No additional features, approvals, or applications are assumed or added beyond what is explicitly stated by the manufacturer.
Specifications
- Part number: T0058768725N
- Power: 90 W
- Length: 0.9 in (24 mm)
- Diameter: 3.0 mm
- Heating time: approx. 7 s (50–350 °C)
- Temperature range: 50–450 °C (tool-dependent)
- Temperature accuracy: ±9 °C
- Tip shape: Chisel — Tip type THM WT XNT
- Compatible barrel: T0058768724
- ESD-safe: Yes
- Quantity per package: 1
