Hipot Tester from SPS-ELECTR: HA 1800M

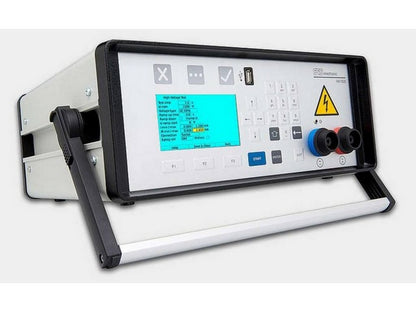

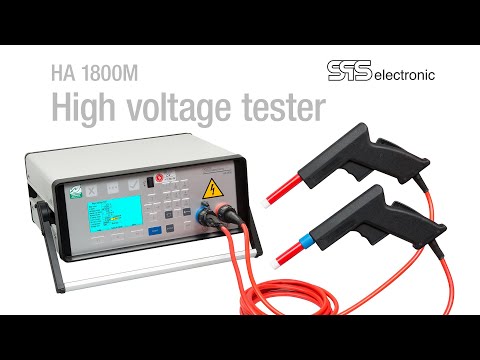

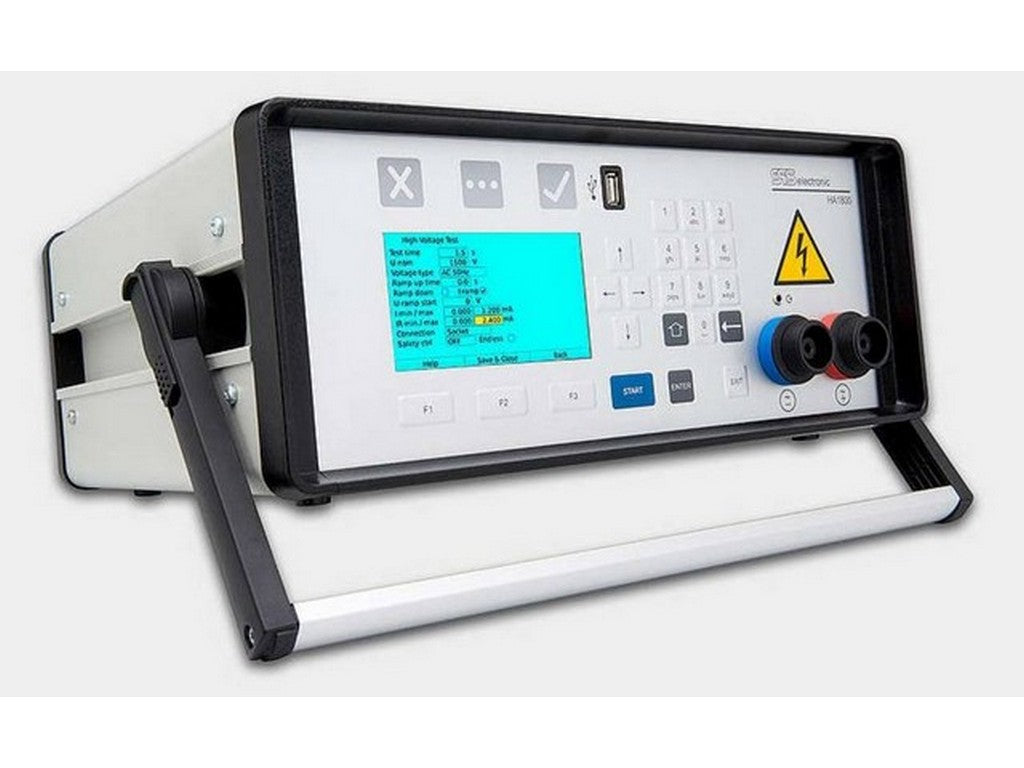

The HA 1800M is a desktop hipot tester from SPS-ELECTR, combining AC and DC high-voltage testing as well as DC insulation measurement in one instrument. The description below is based solely on provided manufacturer data and datasheet.
Function and Operation
The device provides both AC and DC high voltage as well as insulation testing with a digitally controlled HV generator and a 4.3" TFT color display for viewing and programming. The instrument features programmable test sequences, memory for test programs, and the ability to define inputs/outputs for automation.
Typical Applications
- Performing high-voltage tests (AC and DC) and DC insulation measurements as part of safety testing (hipot testing), according to the manufacturer's product text.
- Setting up fully automated test programs using the built-in, programmable functions and memory.
Operation and Safety Information
- 4.3" TFT color display for viewing and entering parameters.
- The unit is safety current-limited; the manufacturer states short-circuit current as 3 mA AC / 10 mA DC in connection with EN 50191.
- Wide mains voltage range: 90–253 V, 50/60 Hz.
Documentation
For complete technical information and detailed measurement values, please refer to the manufacturer's datasheet.
Sources
Specifications
- Product Name: HA 1800M
- Manufacturer: SPS-ELECTR
- AC High Voltage Test: 100–5,500 V
- AC Current Range: 0–3 mA
- AC Short-Circuit Current (table): < 3 mA
- DC High Voltage Test: 100–6,000 V
- DC Current Range: 0–10 mA
- DC Short-Circuit Current (table): < 12 mA
- DC Insulation Measurement: 100–6,000 V
- Measurement Resistance Range (Insulation): 250 kΩ – 1 GΩ
- Residual Ripple: < 3 %
- Display: 4.3" TFT Color Display
- Mains Supply: 90–253 V, 50/60 Hz
- Interface: 2 x USB, RS-232, Ethernet / LAN
- Digital I/O: 8 input + 8 output
- Memory: approx. 180 MB
- Dimensions (approx.): 155 mm (H) × 361 mm (W) × 328 mm (D)
- Weight (approx.): 10 kg
