STAUBLI 31.0046-46

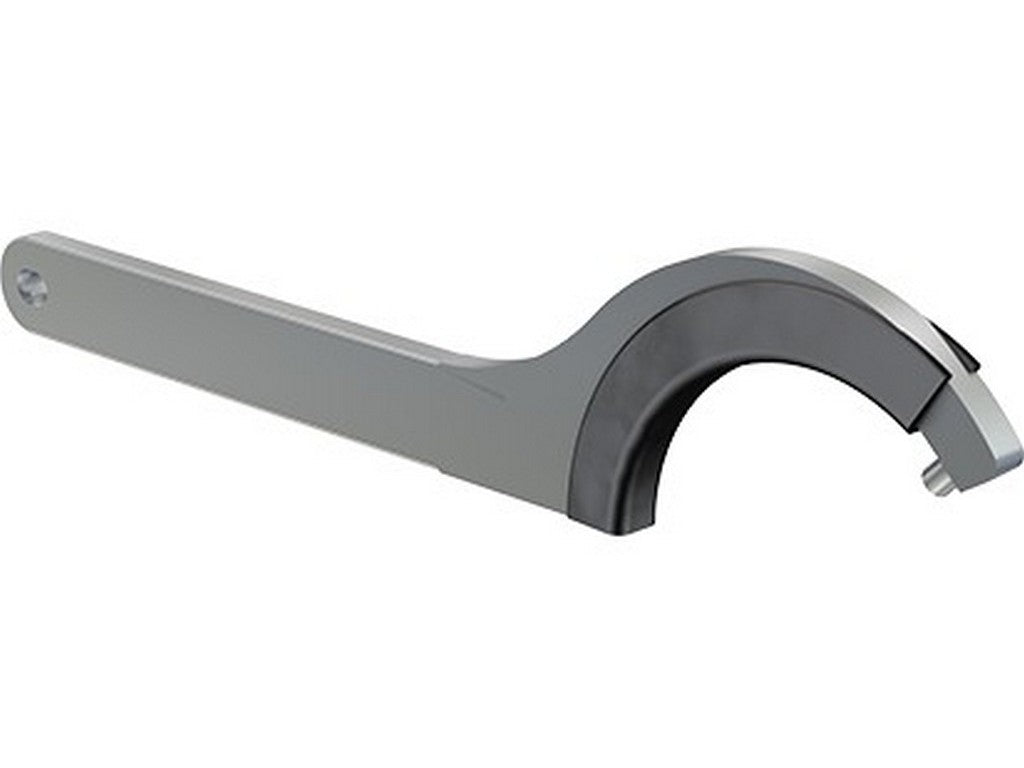

This is a hook wrench for Stäubli's insulated circular connectors in the ID/B16BV-GS-NS and ID/S21BV-GS series. The tool is used to tighten and loosen the anodized fastening nuts in a way that prevents damage to the parts. This is precisely why a wrench like this is chosen instead of a general-purpose tool.
For this type of connector, the surface and engagement are very important for safe and precise work. Here, the contact surfaces are designed softly, allowing you to work with the nut without unnecessary wear. At the same time, the tool is designed with pins according to DIN 1810B in size 80–90, making it suitable for the task it was made for.
It is a special tool for assembly and service of Stäubli's single-pole, insulated round connectors. In practice, it is relevant when connectors need to be correctly mounted or dismounted again, without damaging the fastening. The tool is mentioned in the catalog See datasheet from the manufacturer and is related to assembly instructions MA095 and MA096.
Typical applications
- Mounting and dismounting anodized fastening nuts on compatible Stäubli connectors
- Service work on ID/B16BV-GS-NS and ID/S21BV-GS connections
- Tasks where connectors need to be loosened or tightened without surface damage
Specifications
- Manufacturer: STAUBLI
- MPN: 31.0046-46
- Part number: 31004646
- Designation: hook wrench HKS-ID/B16BV-GS-NS
- Fits: ID/B16BV-GS-NS and ID/S21BV-GS connectors
- Compatible with: 16BV-GS and 21BV-GS
- Pins according to: DIN 1810B
- Size: 80–90
- Description: enables gentle tightening and loosening of anodized fastening nuts
