STAUBLI 69.0012 – Fuse Insert for Measurement Equipment
STAUBLI 69.0012 is designated as type DMI-0.5A in Stäubli's test accessories. It is a high-break-capacity fuse for measurement and testing tasks where equipment and circuits need to be protected without the fuse itself affecting the measurement more than necessary.
It is particularly relevant for resistance and current measurements, where the catalog describes DMI/FLU HBC fuses as having low internal resistance and UL approval. In practice, this means it is designed for use in professional measurement situations where both safety and measurement accuracy are important.
The fuse has a rated current of 0.5 A and measures 6.3 x 32 mm. It is specified with a breaking capacity of 30 kA at both AC 1000 V and DC 1000 V.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 69.0012
- Type: DMI-0.5A
- Main function: high-break-capacity fuse for test accessories
- Rated current: 0.5 A

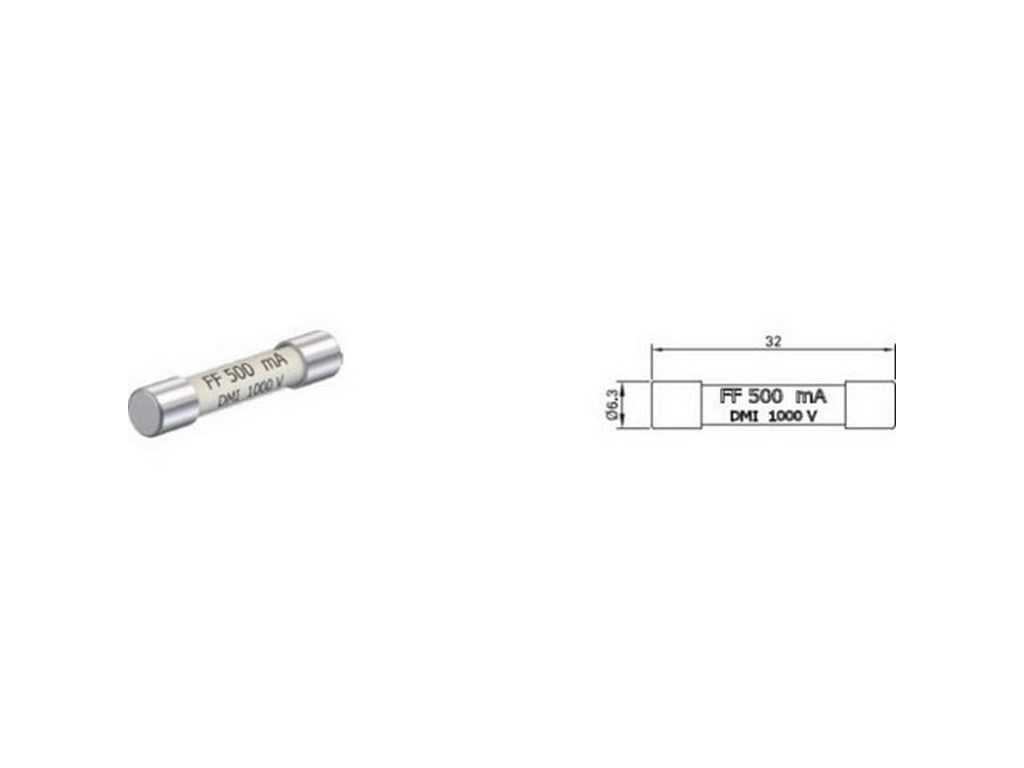

- Dimensions: 6.3 x 32 mm
- Breaking capacity: 30 kA
- Voltage: AC 1000 V
- Voltage: DC 1000 V
- Low internal resistance
- UL approved
- Suitable for resistance and current measurements
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
