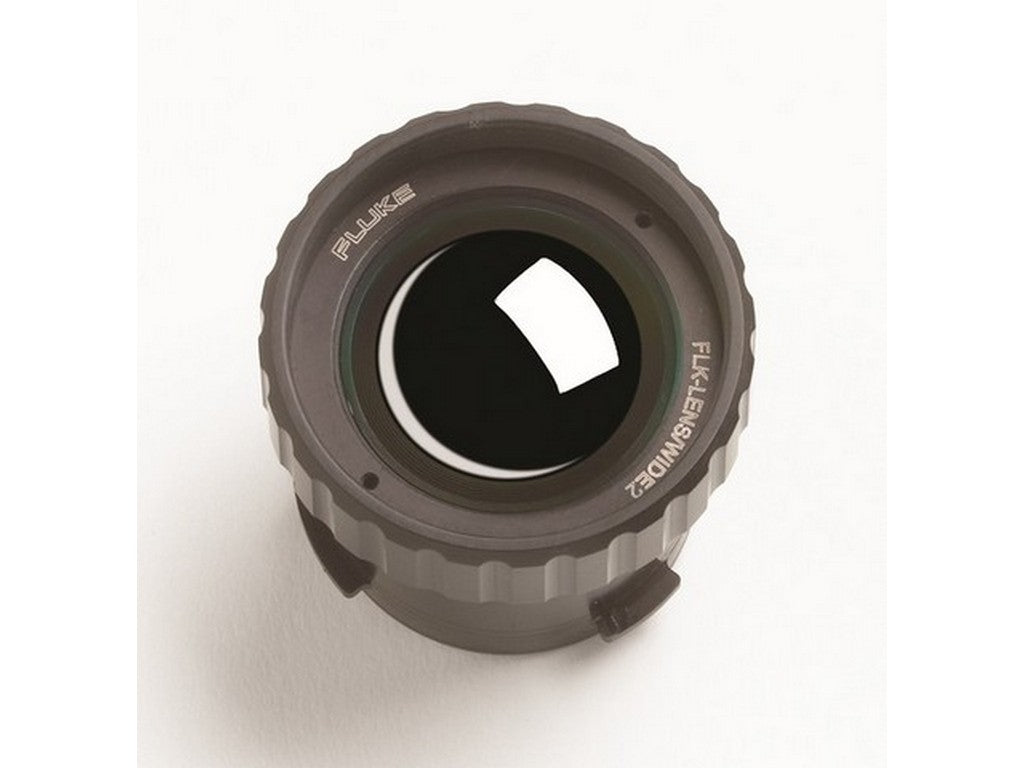

FLUKE FLK-LENS/WIDE2
The FLUKE FLK-LENS/WIDE2 is a wide-angle infrared lens for Fluke thermal cameras. It is used when a larger section of the area needs to be included in the image, making it easier to survey installations, systems, or other objects during inspection. In practice, this means the camera "sees" wider than with a standard lens, which can make it easier to work in situations where you are close to the object being measured or inspected.
The lens is compatible with Fluke TiX560, TiX520, TiX500, Ti400, Ti300, and Ti200. It has a field of view of 46° horizontally and 34° vertically, as well as a minimum focusing distance of 15 cm. This makes it relevant when the subject needs to be viewed at a short distance, but still with a good overview angle. The optics are made of 100% diamond-turned germanium with an engineered coating, which is the type of material choice used for infrared optics.
According to the instruction sheet, the lens has an IFOV of 2.62 mRad when used with a 320 × 240 camera. This information helps to understand the spatial resolution in the specific use case.
Typical applications
- Thermal inspection where a wider view of the installation is needed
- Tasks with Fluke thermal imagers where the subject is close to the camera
- Inspection and troubleshooting where an overview is more important than telephoto
Specifications
- Manufacturer: FLUKE
- MPN: 4335361
- Product name: FLK-LENS/WIDE2
- Compatible with: TiX560, TiX520, TiX500, Ti400, Ti300 and Ti200
- Field of view: 46° horizontal x 34° vertical
- Minimum focusing distance: 15 cm
- IFOV: 2.62 mRad
- Optics: 100% diamond-turned germanium with engineered coating
