Product Overview

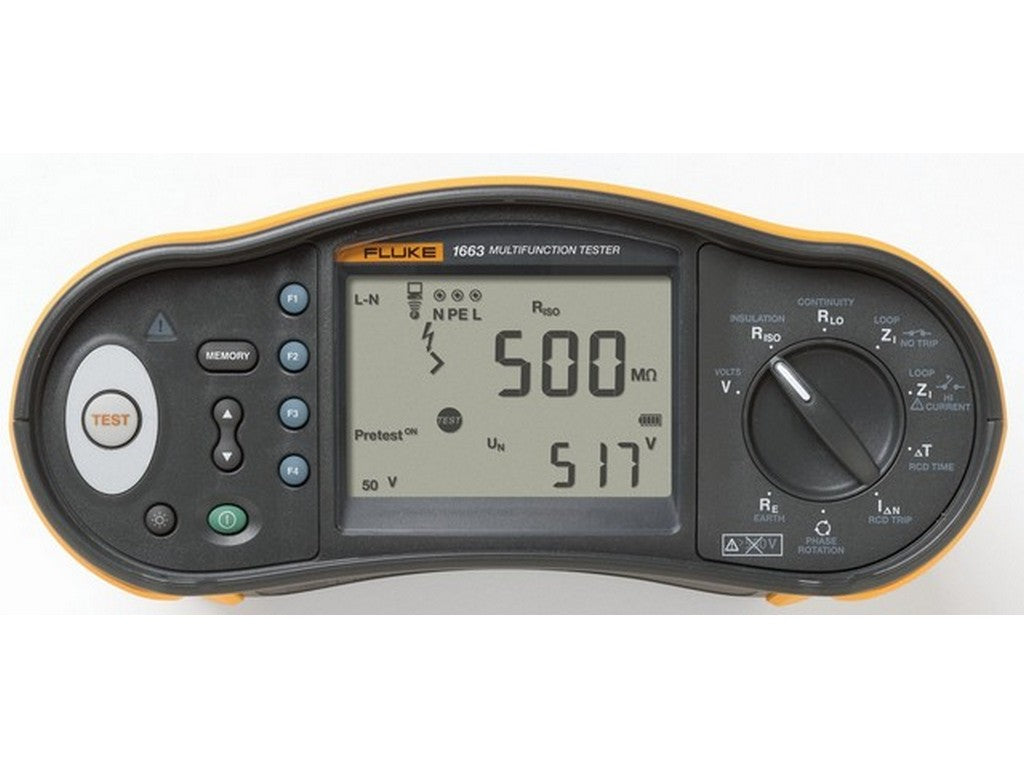

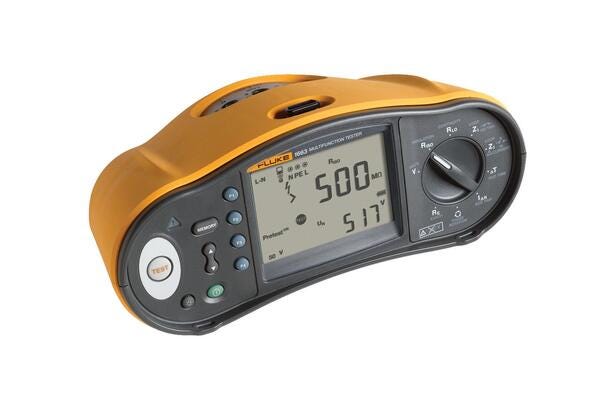

This handheld multifunctional installation tester, the Fluke 1663, is designed for the verification of electrical installations. The Fluke 1663 performs a range of measurements and tests specified by the manufacturer, including continuity, earth resistance, AC voltage and frequency, as well as tests of Type B residual current devices (RCDs).Features
- Continuity test at L-N and N-PE inputs.
- Earth resistance measurement.
- AC voltage and frequency measurement.
- Testing of smooth DC-sensitive Residual Current Devices (RCDs) of Type B.
- VAR mode for EV/RDC-DD testing with settings 6/60/200 mA and ramp <2 to 6 mA.
- Multiple insulation test voltage levels: 50, 100, 250, 500, and 1000 V.
- Loop/line impedance measurement and calculation of prospective earth fault current (PEFC).
Typical Applications

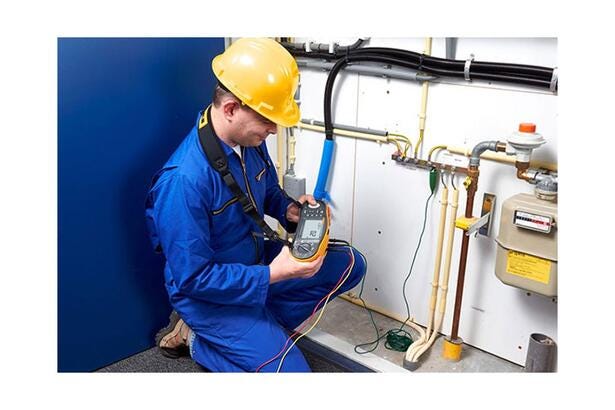

The Fluke 1663 is used for the verification of electrical installations and for documenting test results, as indicated by the manufacturer's information. The features and test functions of the Fluke 1663 enable:- Continuity testing on L-N and N-PE connections.
- Determination of earth resistance and measurement of AC voltage/frequency.
- Verification of RCD Type B and EV/RDC-DD using VAR mode.
Documentation
The manufacturer's product page and available manuals/brochures are provided by Fluke. For further manufacturer documentation and illustrations, please refer to the manufacturer's product page or the manufacturer's product video:Specifications
- Product Name: Fluke 1663.
- Manufacturer: FLUKE.
- Model specified on product page: FLK-1663 (Part#: 4884274).
- Manufacturer part number: 4547005.
- Functions (excluding details): continuity L-N and N-PE; earth resistance; AC voltage; frequency.
- RCD test: Type B (smooth DC-sensitive) and VAR mode for EV/RDC-DD (6/60/200 mA, ramp <2 to 6 mA).
- Insulation test voltage levels: 50, 100, 250, 500, 1000 V.
- Loop/line impedance measurement and PEFC calculation.
- Additional documentation: manuals and brochure specified on Fluke product page.
