Product Overview

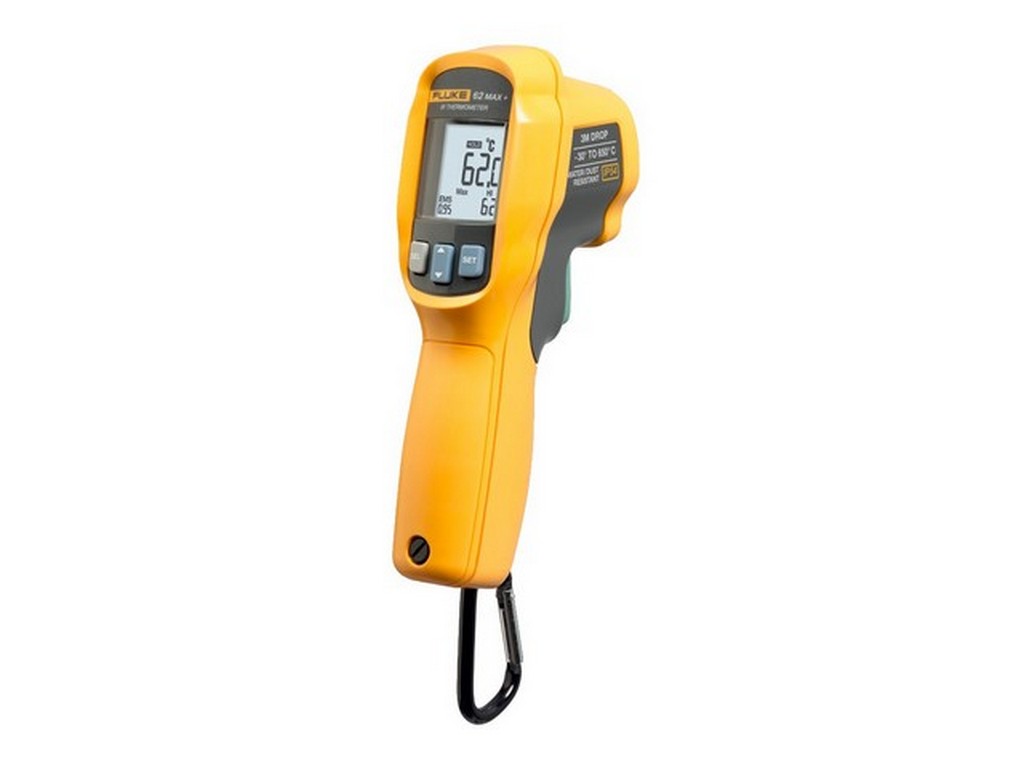

This mini contactless infrared thermometer Fluke 62 MAX (item no. 5065894) is designed for surface temperature measurement. The primary function of the instrument is rapid, non-contact measurement of surface temperatures with a measurement range of -30 °C to 500 °C (-22 °F to 932 °F).Function and Design
The Fluke 62 MAX uses a single laser for aiming and offers a distance-to-spot ratio of 10:1, which indicates the relationship between measurement distance and the measured area. The instrument is IP54-rated for protection against dust and water splashes and has been drop-tested to 3 meters. Power is supplied by one AA battery.Typical Applications
- Used for non-contact surface temperature measurement.
Documentation
Refer to the manufacturer's documentation for detailed technical information and user manual. See manufacturer's datasheet.Specifications
- Manufacturer: FLUKE
- Item number / Manufacturer part number: 5065894
- Product name: Fluke 62 MAX
- Measurement range: -30 °C to 500 °C (-22 °F to 932 °F)
- Accuracy: ±1.5 °C or ±1.5 % of reading (whichever is greater)
- Distance-to-spot ratio: 10:1
- Sighting technology: Single laser for targeting
- Protection class: IP54
- Power supply: 1 x AA battery
- Drop-test: 3 meters
- Response (95 %): < 500 ms (95 % of reading)
- Spectral response: 8–14 µm
- Emissivity: 0.10 to 1.00
- Display resolution: 0.1 °C (0.2 °F)
- Repeatability: ±0.5 % of reading or ±0.5 °C (whichever is greater)
- Battery life: Approx. 10 hours with laser and backlight on
