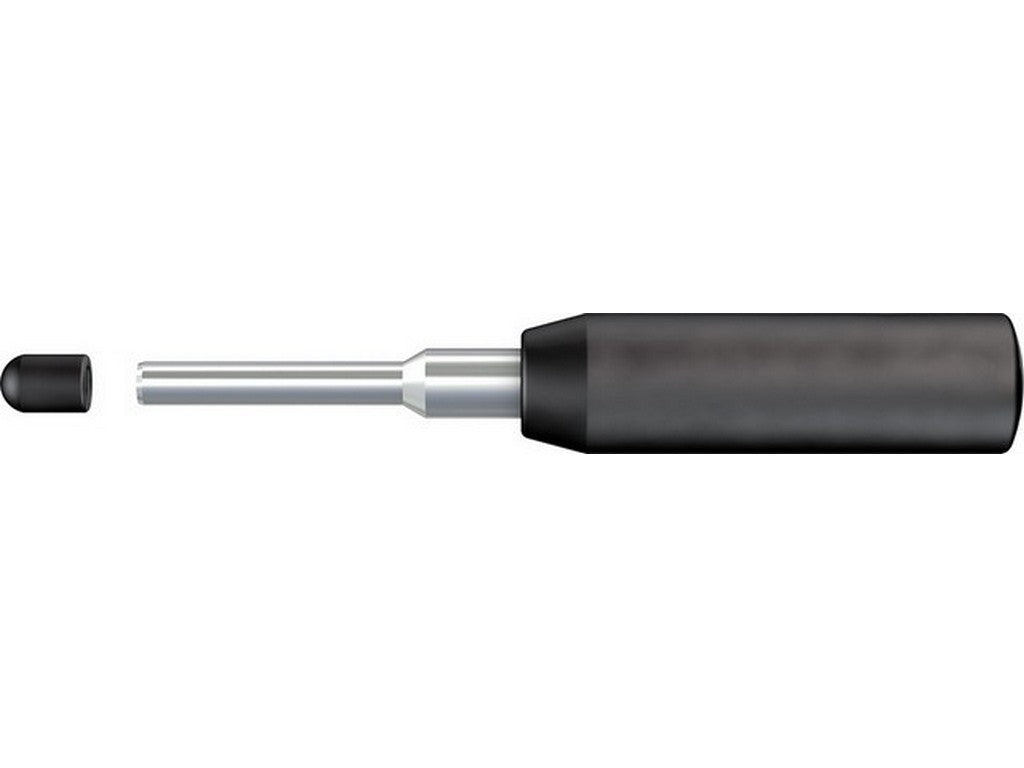

STAUBLI 18.3013
The STAUBLI 18.3013 is an insertion tool for Stäubli contacts, type ME-WZ5. It is used when a contact needs to be pressed correctly into place in a Stäubli insert, so that assembly can be performed with the right tools and according to the manufacturer's instructions.
The tool is specified for a nominal pin/socket diameter of 5 mm. In practice, this means it belongs to the contact size that Stäubli itself has documented in the assembly instructions for the DuraDock multi / ME series. Therefore, it is not a general universal tool, but a tool linked to a specific contact size and a specific assembly process.
For this type of assembly, it is important to use the tools specified by the manufacturer. This ensures that the contact can be inserted correctly into the contact carrier and that the work follows Stäubli's documented procedure. For technicians and assemblers, this is precisely the kind of detail that makes a difference in everyday work when connectors need to be handled safely and consistently.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3013
- Type: ME-WZ5
- Function: Insertion tool
- Specified for nominal pin/socket diameter: 5 mm
- Documented in Stäubli assembly instructions AT_MA202-en.pdf
The content is generated using AI - we reserve the right for errors.
Contact HIN for further product information.
