Insulation resistance tester kit 10kV

Product Overview

This insulation resistance tester kit from FLUKE, Fluke 1555/Kit (Part#: 3665111), is a digital insulation resistance tester capable of performing tests up to 10 kV. The Fluke 1555/Kit comes as a complete set with test leads and accessories specified by the manufacturer and is designed for documented insulation measurements, capacitance and leakage current measurements, as well as ramp/breakdown tests.

Features and Specifications

• Digital insulation measurement up to 10 kV (1555 model).
• Selectable test voltages in 50 V steps from 250 V to 1000 V, and in 100 V steps above 1000 V.
• Resistance measurement up to 2 TΩ (1555).
• Capacitance and leakage current measurements, as well as ramp/breakdown function.
• Timer settings for timed tests up to 99 minutes.
• Safety ratings: CAT IV 600 V and CAT III 1000 V.

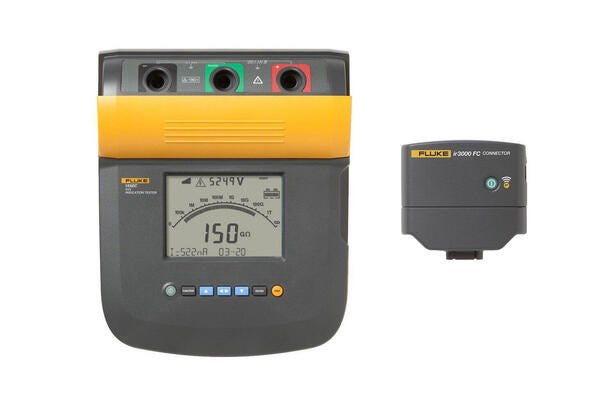

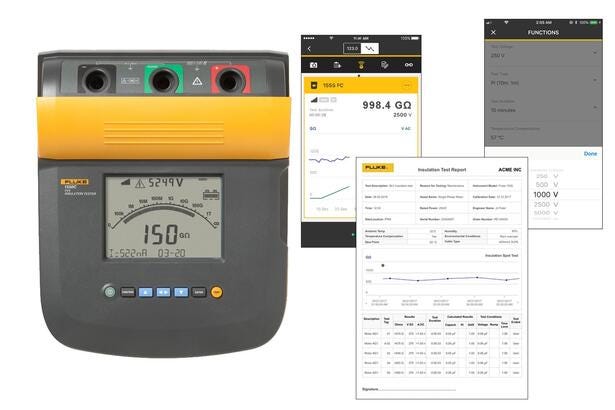

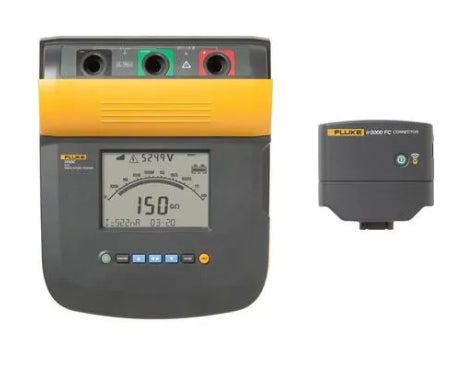

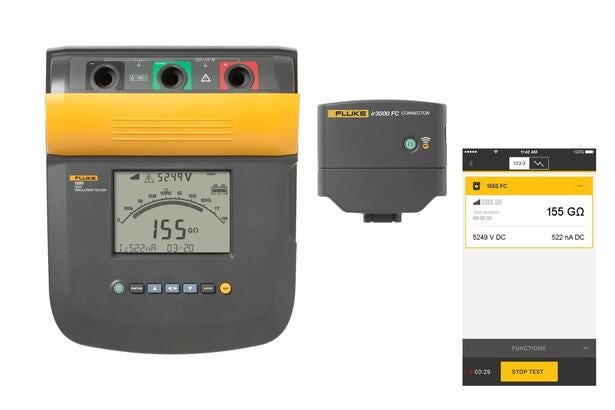

• Wireless compatibility via ir3000 FC-connector for start/stop and data transfer to the Fluke Connect app.

Typical Applications

The Fluke 1555/Kit is listed in the manufacturer's documentation for insulation testing on high-voltage equipment. Examples explicitly mentioned in the manufacturer's material include:

• Switchgear.
• Motors.
• Generators.
• Cables.

Documentation

Source and technical details can be verified in the manufacturer's datasheet: See manufacturer's datasheet

Specifications

• Product: Fluke 1555/Kit (Part#: 3665111)
• Test Voltage: Up to 10 kV (1555)
• Selectable Test Voltages: 50 V steps from 250 V to 1000 V; 100 V steps above 1000 V
• Resistance Measurement: Up to 2 TΩ (1555)
• Capacitance Measurement: 0.01 μF to 15.00 μF (stated in manufacturer data)
• Leakage Current: 1 nA to 2 mA (stated in manufacturer data)
• Timer Setting: 0 to 99 minutes
• Safety: CAT IV 600 V, CAT III 1000 V
• Compatibility: Fluke Connect via ir3000 FC-connector

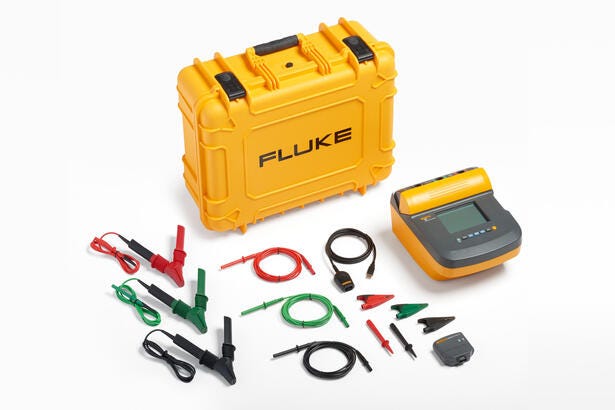

• Included in Kit: Test leads with alligator clips (red, black, green), infrared adapter with interface cable, AC power cord, USB-IR cable installation guide, IP67 hard case, and calibration certificate (according to manufacturer's equipment list)
• Warranty: 3 years (stated in manufacturer material)
• Power: 12 V lead-acid battery (Yuasa NP2.8-12) and charger input 85–250 V AC 50/60 Hz (stated in datasheet)
• Dimensions and Weight: 269 mm x 277 mm x 160 mm; weight 3.7 kg (stated in datasheet)
• Ambient Temperature (operating): -20 ºC to 50 ºC (stated in datasheet)
