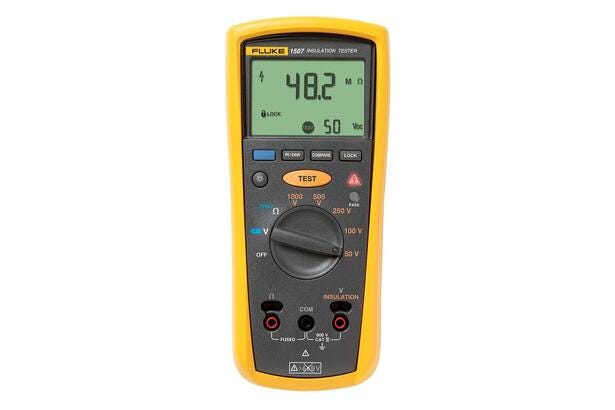

Fluke 1507 — Handheld Insulation Resistance Tester
The Fluke 1507 is a handheld insulation resistance tester from FLUKE. The device is designed to perform insulation measurements at fixed test voltages and includes features to prevent measurements on live circuits as well as automatic discharge of capacitive voltage.
Technical Overview
- Test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V.
- Insulation measurement range: 0.01 MΩ to 10 GΩ.
- Live circuit detection: Tests are inhibited if terminal voltage exceeds 30 V.
- Automatic discharge of capacitive voltage after testing.
- Category rating: CAT IV 600 V.
- Voltage measurement functions: AC/DC 0.1 V to 600 V.
- Resistance measurement function: 0.01 Ω to 20.00 kΩ.
The Fluke 1507 is described in the manufacturer's material as a robust and compact tester suitable for troubleshooting and preventive maintenance.
Typical Applications
- Used for troubleshooting as stated in the manufacturer's text.
- Used for preventive maintenance as stated in the manufacturer's text.
For further manufacturer information and technical details, please see the manufacturer's product page.
See manufacturer's product page
Specifications
- Product: Fluke 1507 (handheld insulation resistance tester).
- Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V.
- Insulation measurement range: 0.01 MΩ – 10 GΩ.
- Live circuit detection: inhibits tests at terminal voltage > 30 V.
- Automatic equalization/discharge of capacitive voltage after testing.
- Category: CAT IV 600 V.
- AC/DC voltage measurement: 0.1 V – 600 V.
- Resistance measurement: 0.01 Ω – 20.00 kΩ.
Content generated using AI – we reserve the right for errors.
Contact HIN for further product information.
