Product Description

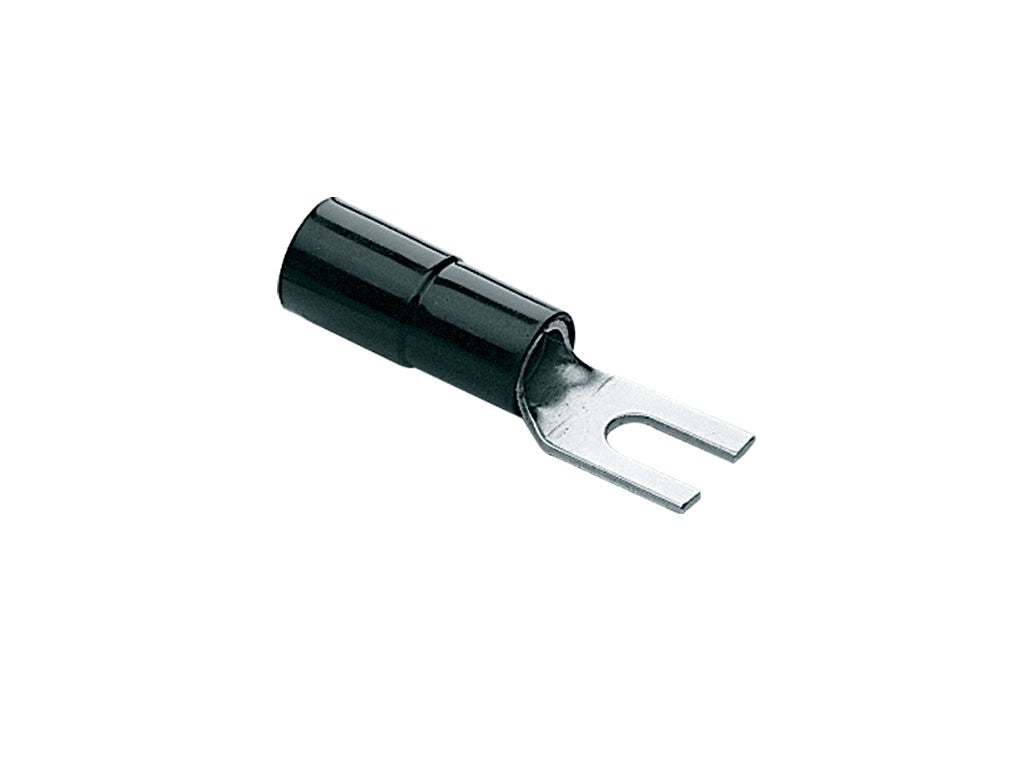

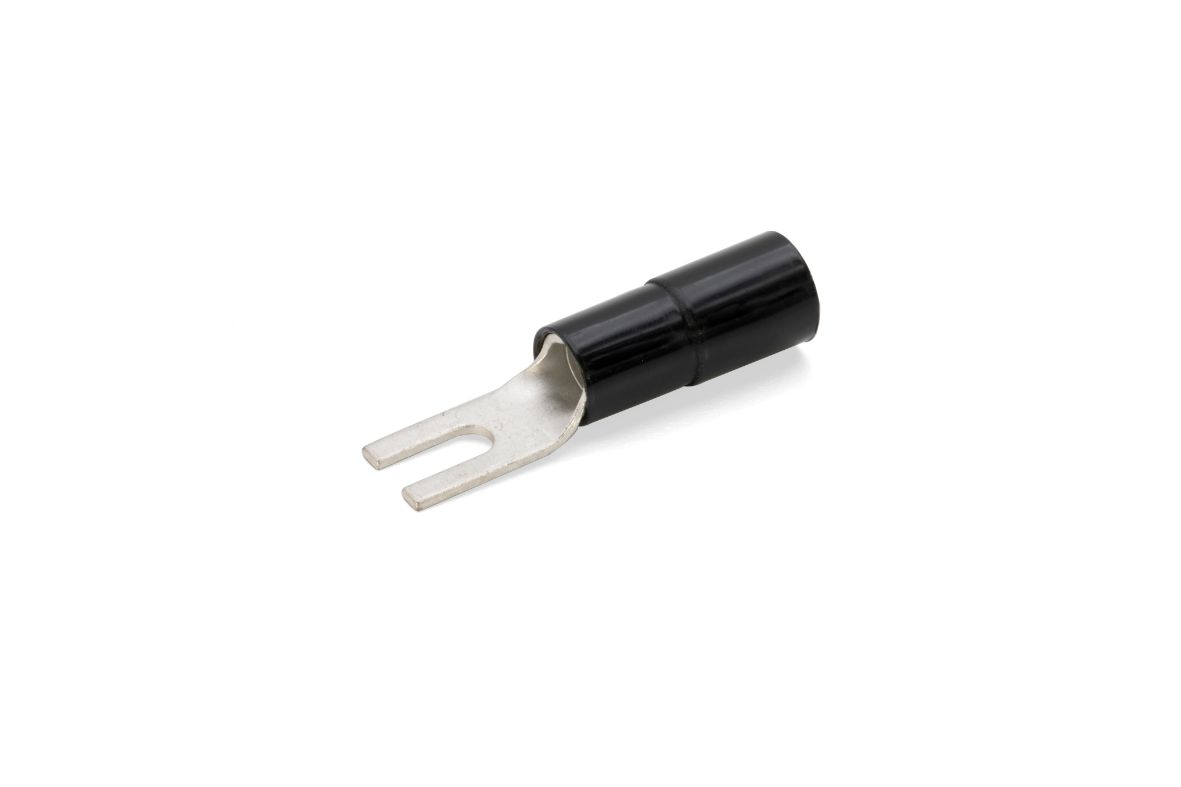

The ANE2-U4 is a pre-insulated fork terminal from Cembre designed for flexible copper conductors. The product features a PA6.6 insulation sleeve and is made from electrolytic copper with tin plating. The ANE2-U4 is specified for a conductor cross-section of 10 mm² and uses screw/stud diameter M4 with a fork diameter (D) of 4.3 mm.Function and Application
The ANE2-U4 is used as an electrical connection between a flexible copper conductor and a screw/stud connection, where the fork shape allows mounting around a bolt or screw without removing the nut. The installation guide from the manufacturer outlines the relevant steps for correct connection: selection of the correct connector relative to the copper conductor, appropriate tools and die, stripping the conductor to the specified length, full insertion of the conductor into the terminal, and a single centrally placed crimping operation.- Material: electrolytic copper, tin-plated
- Insulation: Polyamide PA6.6 (black sleeve)
- Connection type: fork (spade) terminal
Documentation
See datasheet from the manufacturerSpecifications
- Product: ANE2-U4
- Manufacturer: Cembre
- Conductor size: 10 mm²
- Screw/stud diameter: M4

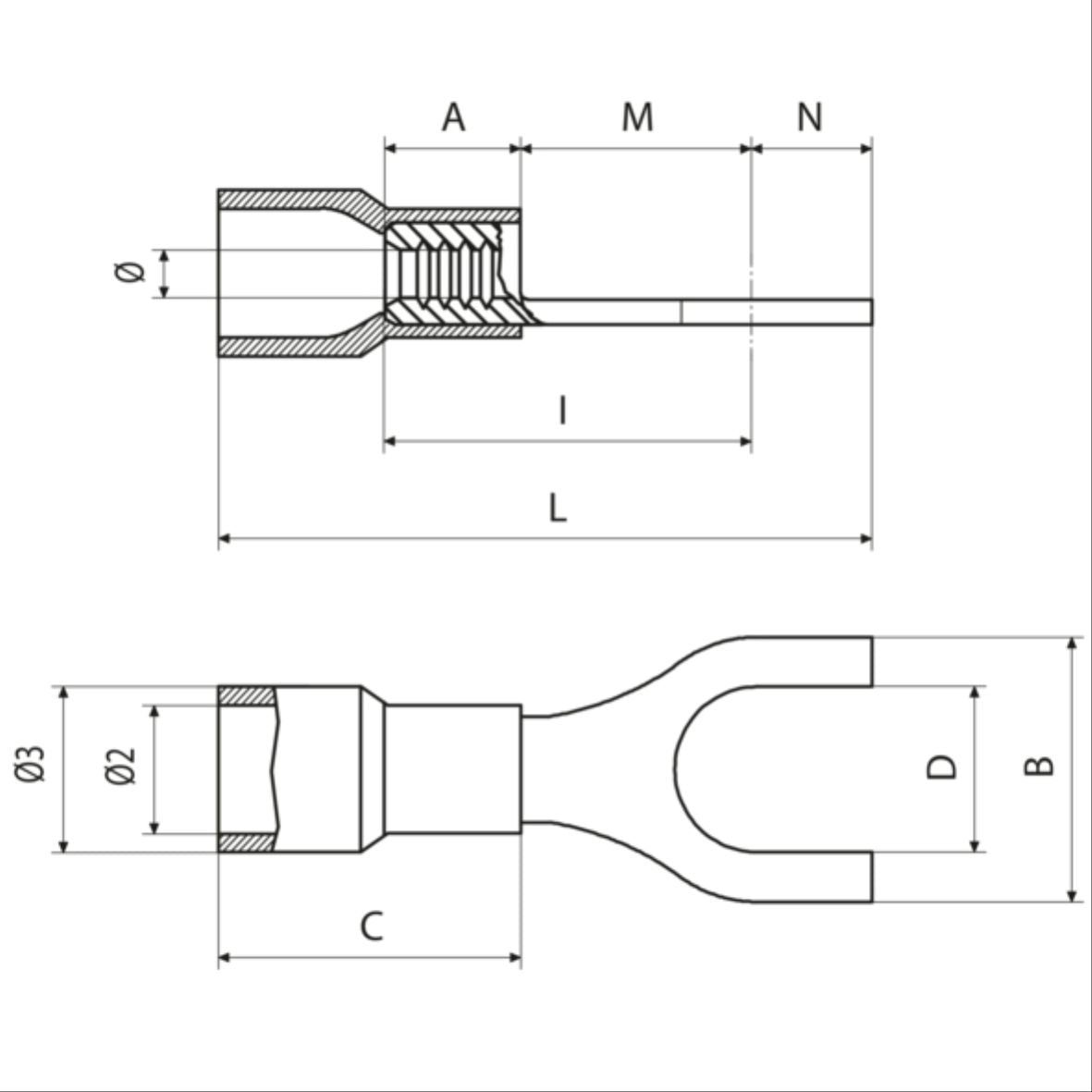

- Fork diameter (D): 4.3 mm
- Material: electrolytic copper, tin-plated
- Insulation material: Polyamide PA6.6, colour black
- Operating temperature: -20 °C to +115 °C (short-term increase up to +130 °C)
- Standard packaging unit: 500 pcs.
- Recommended stripping length: 12 mm (according to manufacturer's table for ANE2)
- Recommended crimp die: NN4-15 (indicated in manufacturer's tool table for ANE2)
