Pre-insulated ring terminal: ANE2-M10

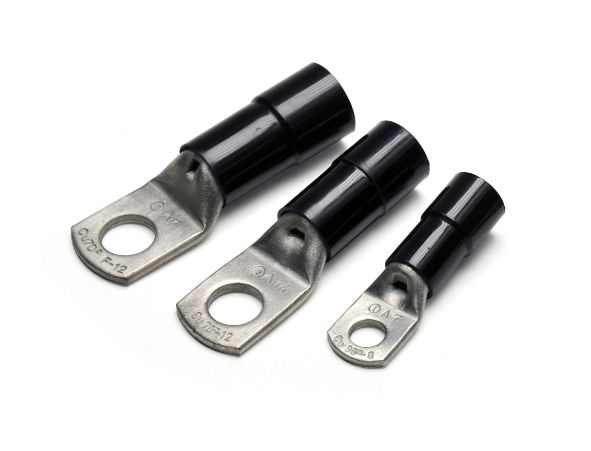

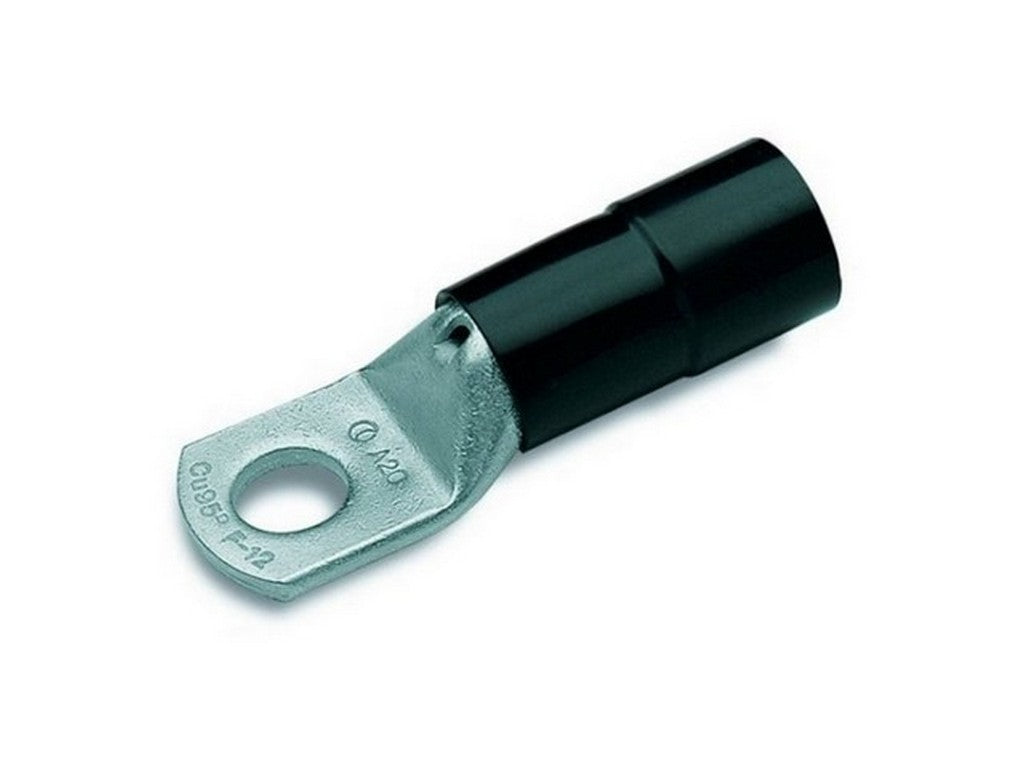

ANE2-M10 is a pre-insulated ring terminal from Cembre designed for copper conductors. The product is part of the ANE-M series and is specified for flexible copper conductors with a cross-sectional area of 10 mm². The ring terminal is designed with a ring opening for an M10 screw (ØD 10.5 mm).
Function and construction

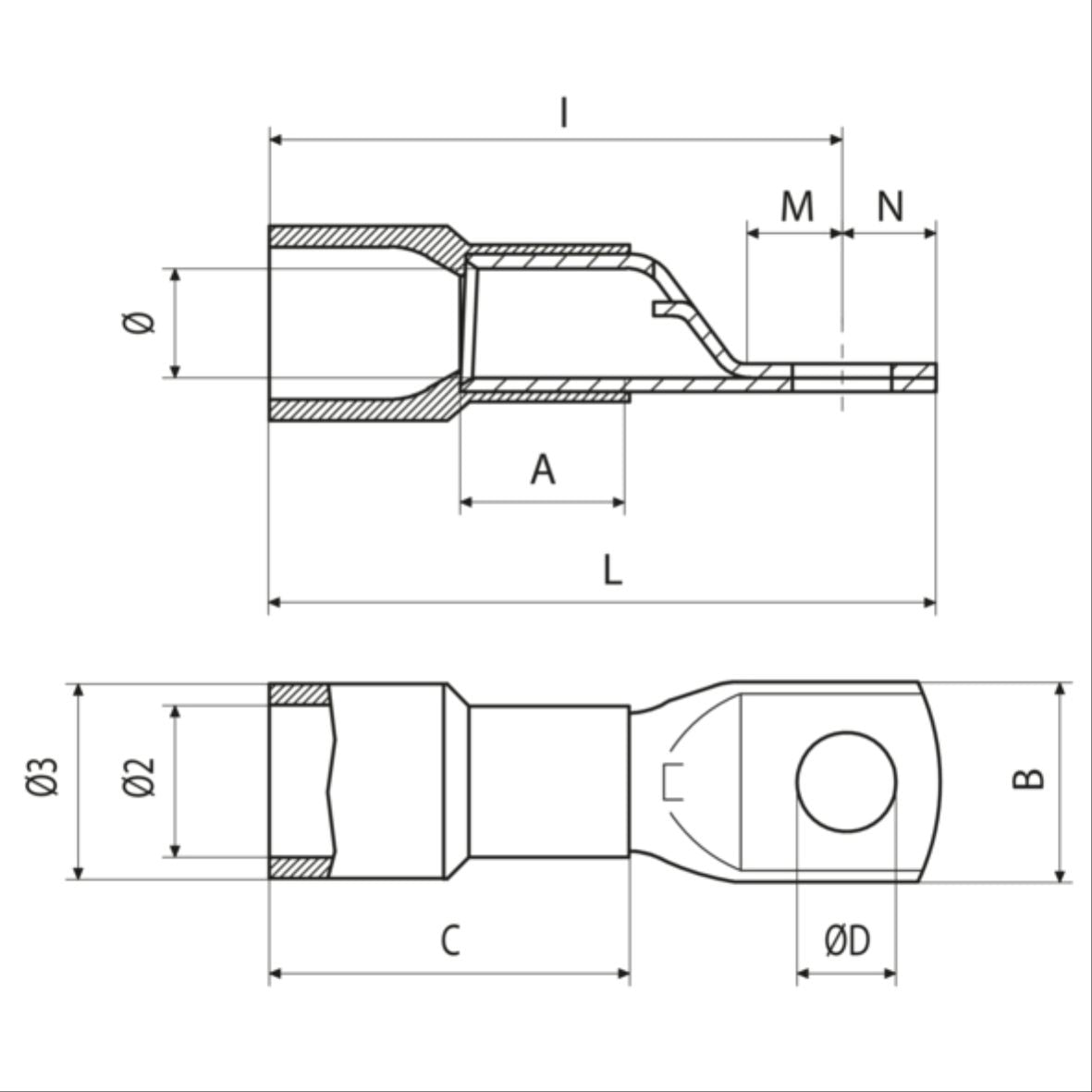

The ANE2-M10 consists of a conductive tubular body element made of electrolytic copper and a partially insulating sleeve made of polyamide (PA6.6). The conductive part is tin-plated; the manufacturer's documentation states a copper quality of a minimum of 99.9% and a minimum tin plating thickness of 3 μm. The insulated sleeve is indicated with the color black in the product description.
Installation and handling

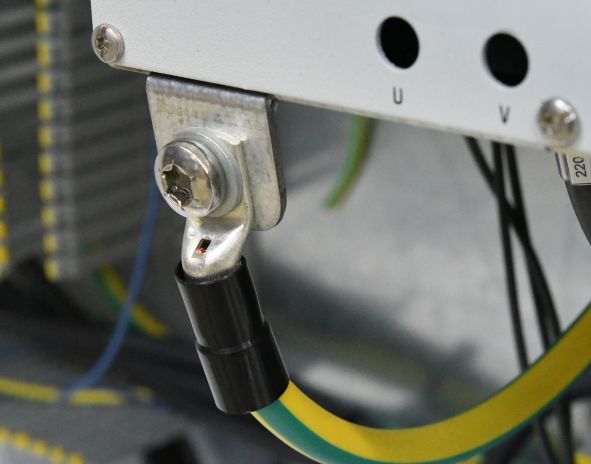

Installation follows Cembre's installation instructions: select the correct connector, tool, and die set according to the table in the documentation, strip the cable to the recommended length, insert the conductor into the connector, and perform one crimp in the middle of the tube section. The documentation includes strip lengths and recommended crimping die types for the ANE-M series. There are also safety instructions that crimping operations must be performed on de-energized conductors and that there is a risk of crushing by moving parts during the crimping process.
Documentation
See datasheet from the manufacturer
Specifications
- Manufacturer: Cembre
- Product name / item number: ANE2-M10
- Application: Pre-insulated ring terminal for flexible copper conductor 10 mm²
- Ring size / screw: M10 (ØD 10.5 mm)
- Material, conductor body: Electrolytic copper (min. 99.9%)
- Coating: Tin plating (min. thickness 3 μm indicated in documentation)
- Insulation: PA6.6 (partially insulated), insulation color indicated as black
- Approval information: UL listed for US per UL486A-486B and for CNL per CSA C22.2 (indicated in the installation document)
- Electrical: Max. 600 V (indicated in the documentation)
- Thermal: Max. operating temperature 105 °C (indicated in the documentation)
- Fire characteristic: Flammability V-2 (indicated in the documentation)
- Instructions for use: One crimp in the middle of the connector tube; use correct tool and die as indicated in the documentation
- Note: Single use – not to be reused (indicated in the documentation)
