Product Description

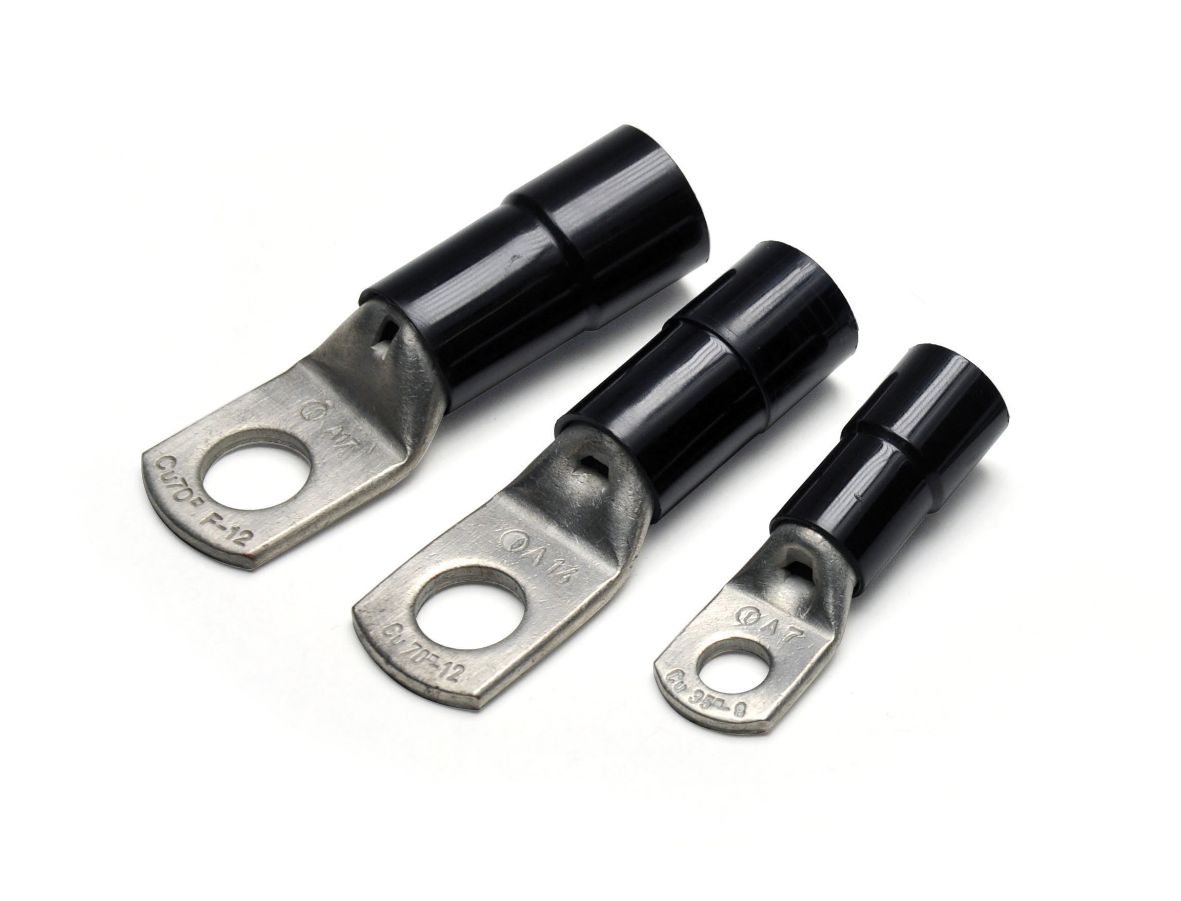

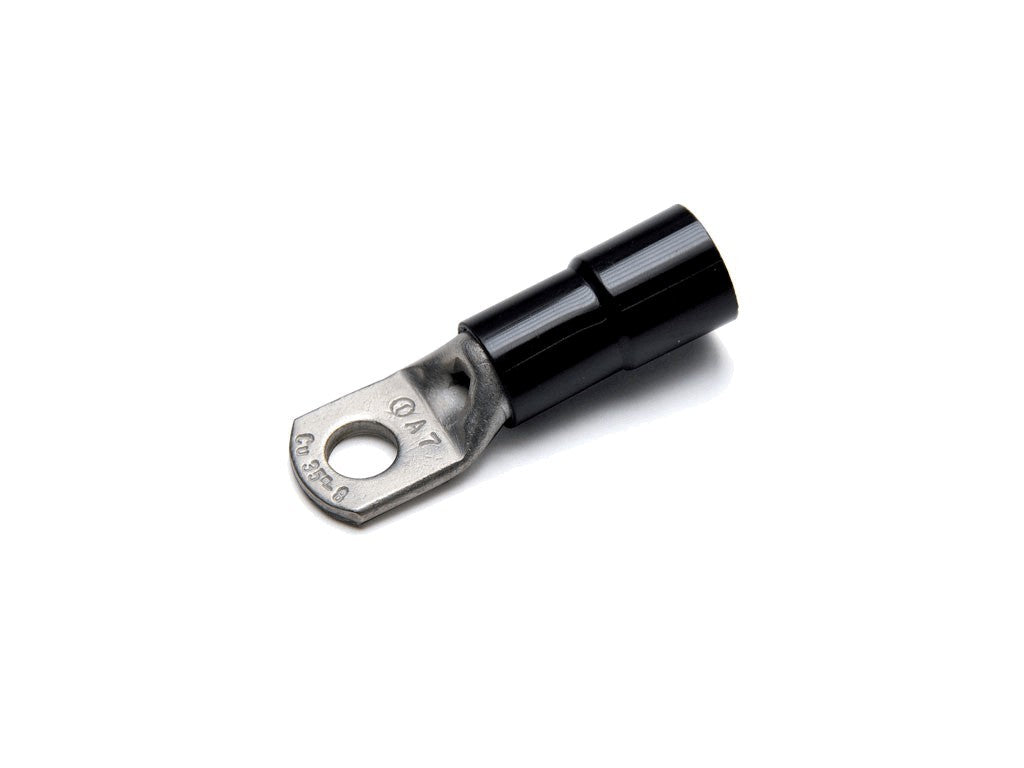

The ANE2-M5 is a ring terminal (ANE-M series) from Cembre designed for crimp connection of copper conductors. The product is a pre-insulated ring terminal with partial polyamide (PA 6.6) insulation sleeve in black, made from electrolytically annealed copper and tin-plated. The ANE2-M5 is specified with M5 screw thread and a Ø (palm) value of 5.3 mm; the ANE2-M variant supports flexible conductors of 10 mm².Application and Installation

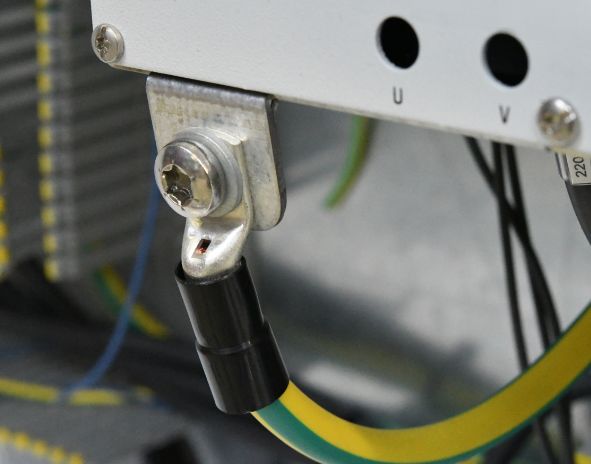

The ANE2-M5 is used for electrical connections where an M5 ring terminal is specified. Installation follows the manufacturer's mounting instructions: select the correct terminal size for the copper conductor used, use the recommended stripping length, insert the conductor into the terminal barrel and perform one crimp in the middle of the barrel with the correct tools and dies. The datasheet states that appropriate crimping tools and dies as specified in the table in the instructions must be used.Technical Reference
- Material: electrolytically annealed copper, tin-plated (min. 3 µm)
- Insulation: polyamide PA 6.6, partial insulation, black colour
- Compatibility: for use with class 2 and 5 copper conductors; ANE2‑M specified for 10 mm²
- Screw: M5, Ø (palm) 5.3 mm
Specifications
- Manufacturer: Cembre
- Material: electrolytically annealed copper
- Plating: tin (min. 3 µm)
- Insulation material: Polyamide PA 6.6, partial insulation, black colour
- Type/variant: ANE2-M5 (ANE-M series)
- Conductor compatibility: class 2, 5 copper conductors; ANE2‑M for 10 mm²
- Screw thread: M5; Ø (palm): 5.3 mm
- Maximum voltage: 600 V (building installation)
- Max. operating temperature: 105 °C
- Usage: single-use (not reusable)
- Certification/standards (stated in datasheet): UL listed for USA (UL486A-486B) and for Canada (CSA C22.2)
- Flammability: V-2
- Sold only with installation instructions
- Manufacturer's part number: 2408825
