Insulated cable lug 10mm-Ø8mm

Product Overview

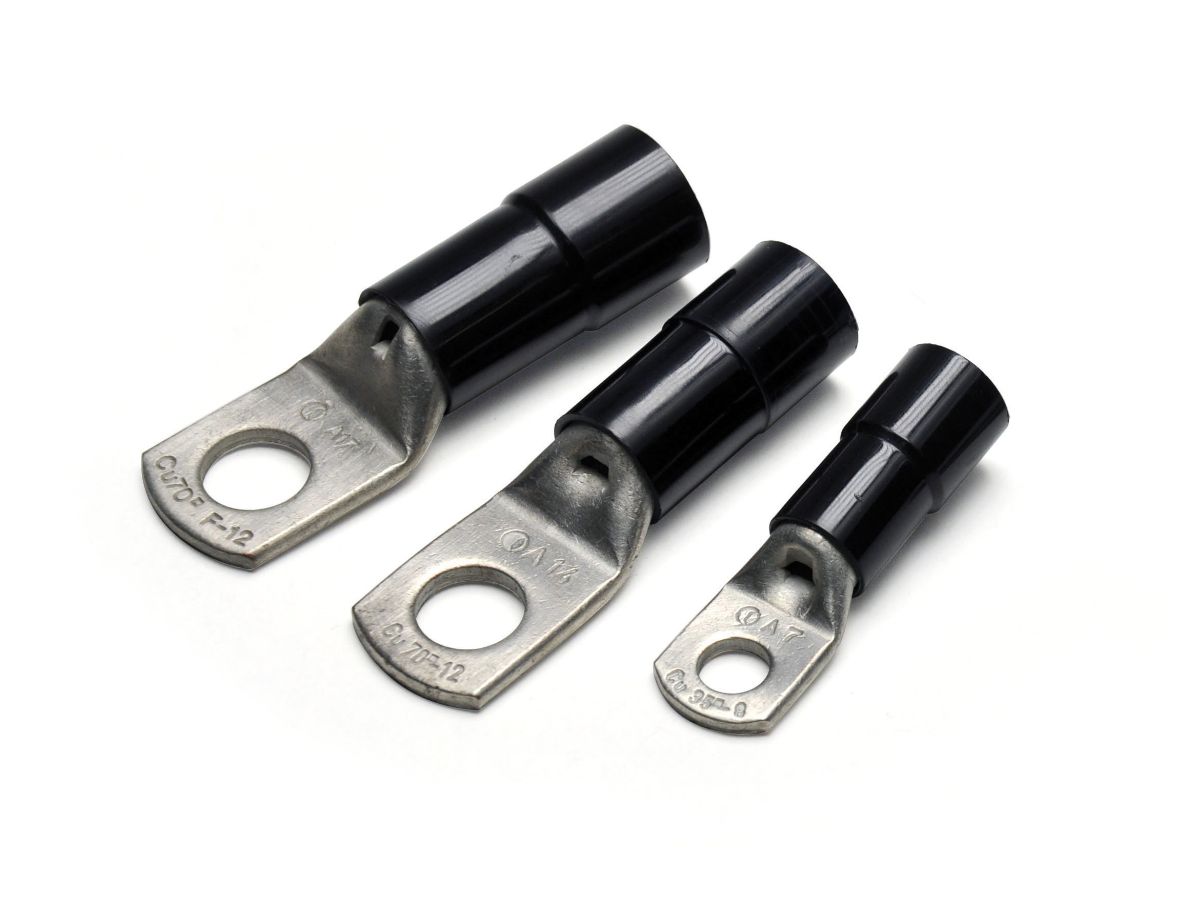

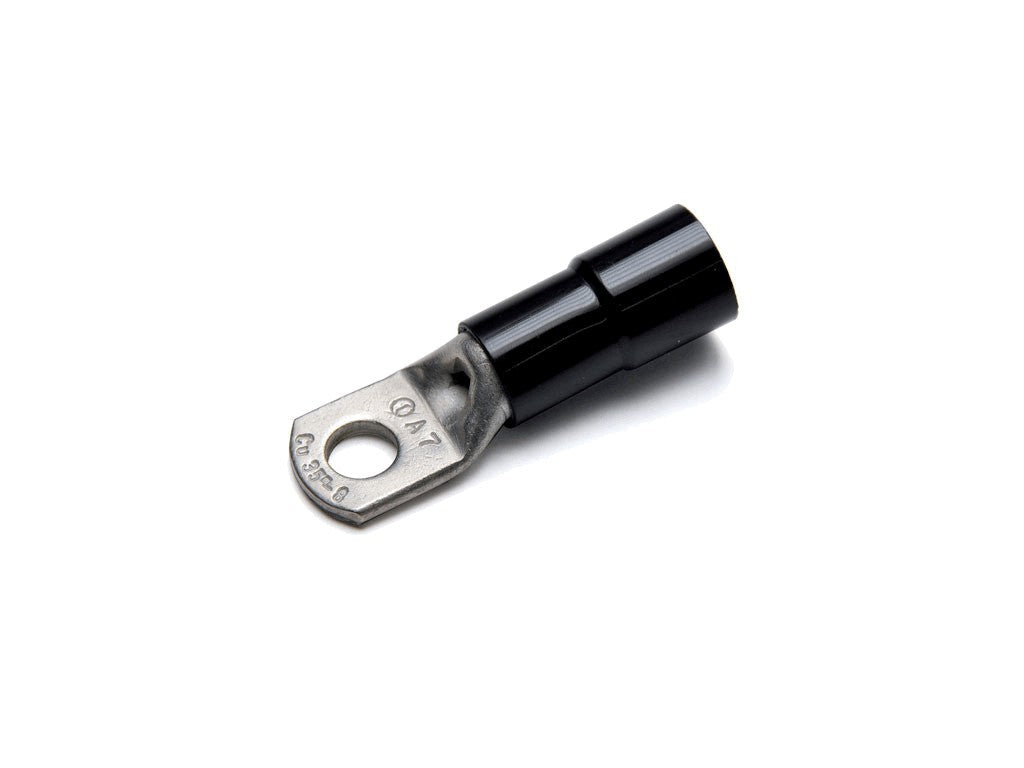

The ANE2-M8 is a pre-insulated ANE-M ring terminal from Cembre designed for copper conductors. The product features a tin-plated copper body and an insulating polyamide (PA 6.6) sleeve. The ANE2-M8 is specified for a conductor cross-section of 10 mm² and has a ring connection for M8 screw diameter with a ring opening ØD 8.4 mm.

Function and Application

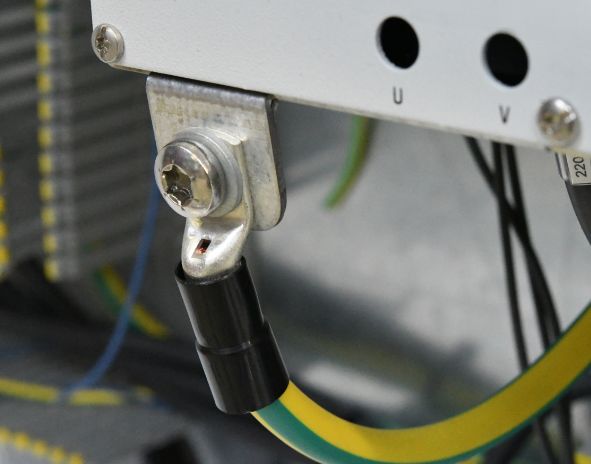

The product serves as a mechanical and electrical transition between a copper conductor and a screw/bolt connection. The connection is established by inserting a stripped conductor into the terminal's barrel and performing a crimp with appropriate tools. This ensures good electrical contact through the tin-plated copper body and mechanical retention via the crimp. The manufacturer's operating and installation instructions describe the following essential steps:

• Select the correct terminal size in relation to the conductor cross-section.
• Choose the correct crimping tool and dies as indicated by the manufacturer.
• Strip the conductor to the recommended length without damaging the strands.
• Insert the conductor into the terminal.
• Perform a single crimp in the middle of the barrel in accordance with the tool's instructions.

Documentation

See datasheet from the manufacturer

Specifications

• Product: ANE2-M8 (pre-insulated ANE-M ring terminal)
• For conductor type: Copper conductors (specified for class 2 and 5 in manufacturer's documentation)
• Conductor cross-section: 10 mm²
• Ring connection: M8, ring opening ØD 8.4 mm
• Body material: Copper (99.9% min.), tinned (at least 3 µm)
• Insulation: Polyamide PA 6.6 (nylon), partial black insulation
• Visible inspection hole (spy hole)
• Connection technique: Crimp (manufacturer specifies one crimp in the middle of the barrel)
• Electrical max. voltage (family indication): 600 V (building wiring, according to manufacturer documentation)
• Product use: Single use (not to be reused, according to manufacturer documentation)
• Flammability class (family indication): V-2
