Grounding chain 120mm 3000mm 1-pole

Product Overview

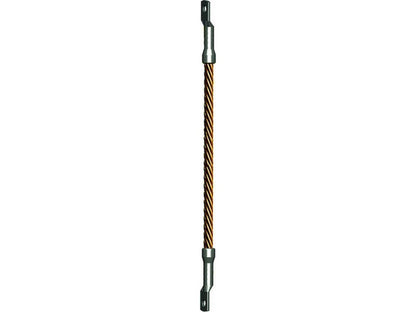

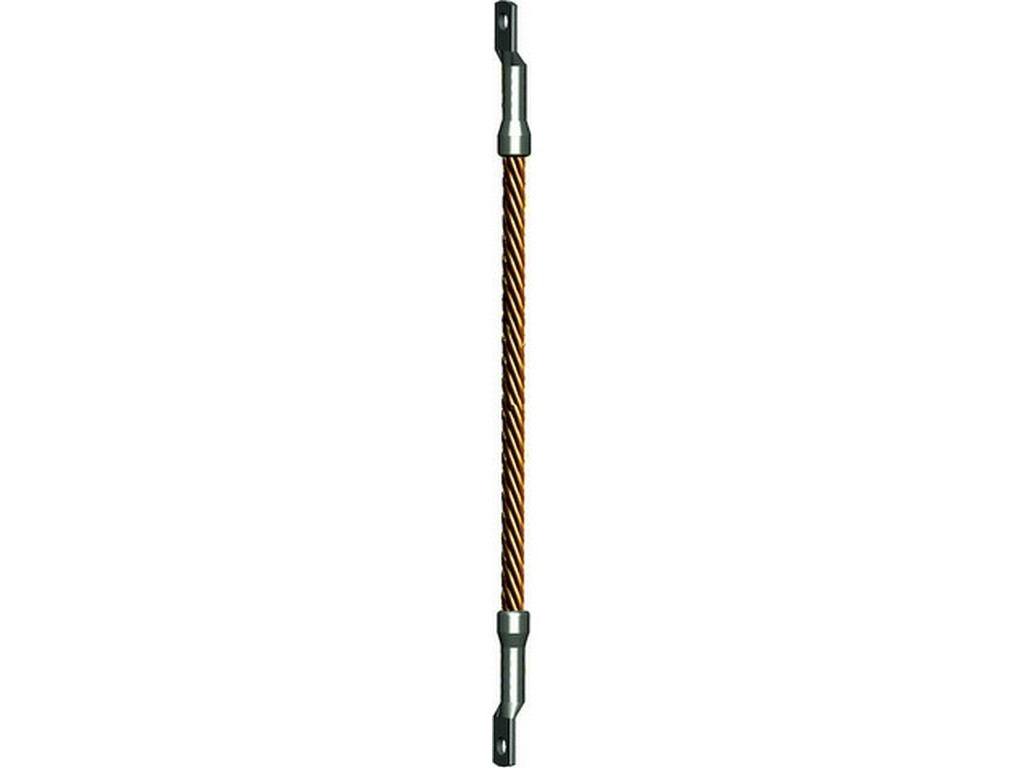

This single-pole earthing and short-circuiting device from HORSTMANN (article number 61-0106-006) is a portable earthing tool designed for temporary earthing of single conductors or components in low and medium voltage systems. The device consists of a flexible, highly conductive copper cable with cable lugs mounted at both ends.

Function and Construction

• Cross-section: 120 mm² Cu.
• Cable length: 3,000 mm.
• Cable lugs at both ends, each with a 13 mm hole.
• Cables assembled from highly flexible copper conductors with transparent insulation.
• Rated short-circuit current: Ir = 23.7 kA (tr = 1 s).

The product's construction and specified properties follow the manufacturer's description. The application sequence is described by the manufacturer: first, connect the earth potential to a fixed earthing point, then connect the phase connection to the point to be earthed; disassembly is done in reverse order.

Typical Applications

This single-pole earthing and short-circuiting device is used for temporary earthing of individual conductors or components in low and medium voltage systems. The product description specifically mentions this application without further elaboration.

Documentation

For further product information and verification of the stated values, please refer to the manufacturer's product page: See manufacturer's product page.

Specifications

• Product: Single-pole earthing and short-circuiting device.
• Manufacturer: HORSTMANN.
• Article number: 61-0106-006.
• Copper cable cross-section: 120 mm² Cu.
• Cable length: 3,000 mm.
• Rated short-circuit current: Ir = 23.7 kA (tr = 1 s).
• Cable lugs: 13 mm hole on each cable lug.
• Material/construction: Highly flexible copper conductors with transparent insulation.
• Standard reference in manufacturer text: IEC 61230 (VDE 0683-100).
