Product Overview

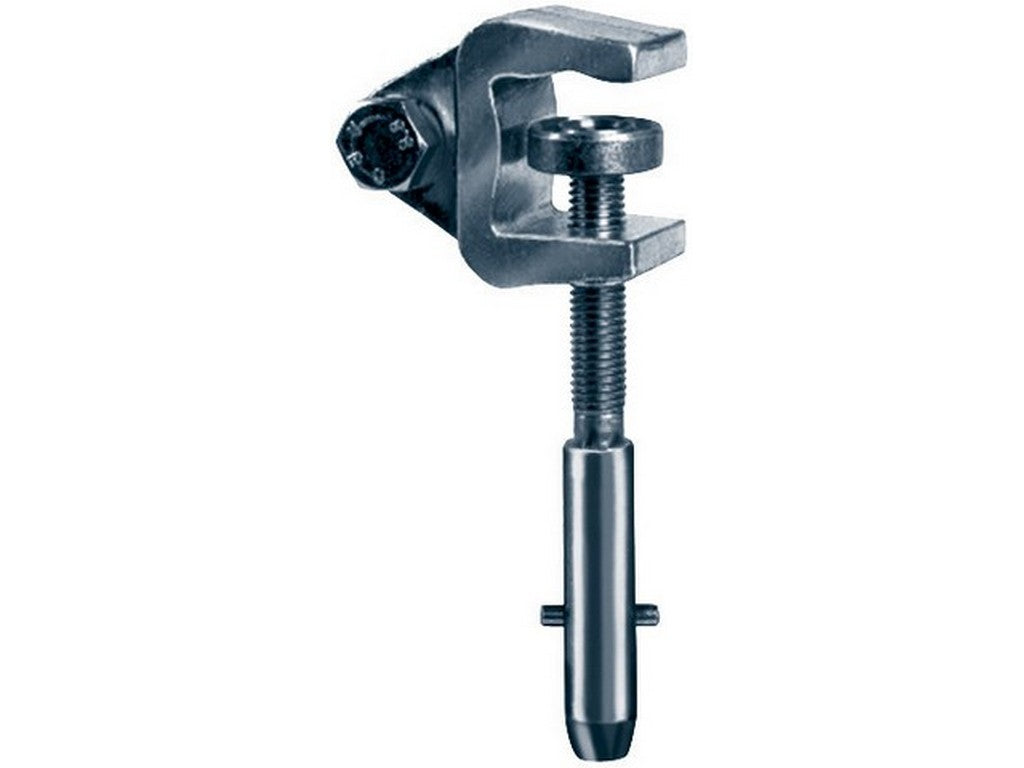

This earthing clamp from HORSTMANN, Horstmann 64-0201-006, is designed as an earthing clamp for flat conductors. The product is made of copper-nickel (CuNi) and is zinc-plated. The clamp is equipped with a bayonet connection and has a specified clamping range of 38 mm. The specified rated short-circuit current is Ir = 29.6 kA (tr = 1 s). The manufacturer's order/item number is 64-0201-006.Design and Materials
The construction is described by the manufacturer as CuNi (copper-nickel) with zinc plating. The bayonet connection is specified as the connection type for this model. No further dimensions, weight, or temperature data are provided in the documented material.Documentation
The manufacturer's product page contains product information and the model number corresponding to Horstmann 64-0201-006. For details, please refer to the manufacturer's page for this product group.Typical Applications
The clamp is specified for use in temporary or permanent earthing on flat conductors with a clamping range of 38 mm. The description in the manufacturer's material directly indicates that the model is for flat conductors and is made with a bayonet connection.Specifications
- Product name: Horstmann 64-0201-006.
- Manufacturer: HORSTMANN.
- Material: CuNi (copper-nickel).
- Surface: Zinc-plated.
- Connection type: Bayonet connector.
- Clamping range: 38 mm.
- Rated short-circuit current: Ir = 29.6 kA (tr = 1 s).
- Manufacturer's item number: 64-0201-006.
Sources
- Manufacturer's product page: https://horstmanngmbh.com/en/products/earthing-devices/earth-connecting-elements/
