Earthing Clamp (Earth Potential Connection) from HORSTMANN
Product Overview

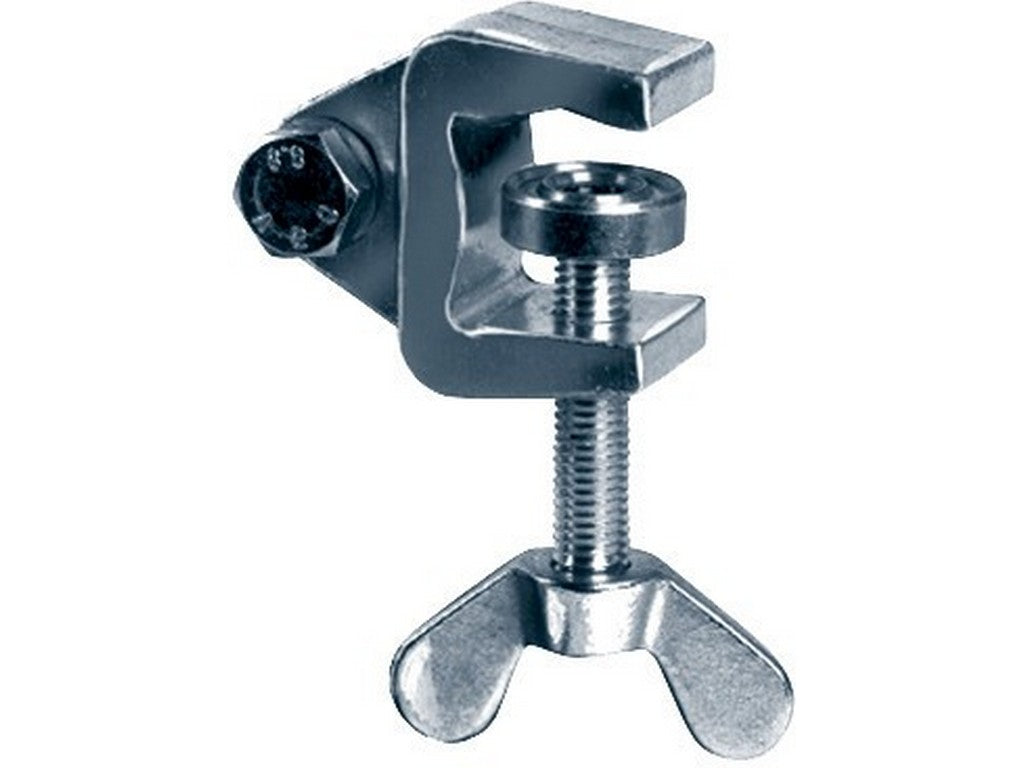

Horstmann 64-0201-003 is an earthing clamp for flat conductors (Erdungsklemme für Flachleiter) with a wing screw. The product is listed in Horstmann's product overview for earth potential connections and is made of CuNi material with a zinc coating (Werkstoff: CuNi, verzinkt). The clamp has a clamping width (Klemmweite) of 23 mm and a rated current Ir of 18.7 kA for tr = 1 s.
Documentation
Source and technical reference can be found on the manufacturer's product page: See manufacturer's product page.
Typical Applications
As stated by the manufacturer, the product is used to establish a defined connection to earth potential and as a connection point for equipotential bonding conductors. The clamp functions as a standardized point for earthing and equipotential bonding in electrical systems where a secure and electrically conductive connection point is necessary.
Technical Characteristics
- Product name: Horstmann 64-0201-003.
- Type: Earthing clamp for flat conductors (with wing screw).
- Material and surface: CuNi, zinc-plated.
- Clamping width (Klemmweite): 23 mm.
- Rated current Ir: 18.7 kA for tr = 1 s.
Specifications
- Manufacturer: HORSTMANN.
- Manufacturer's article number: 64-0201-003.
- Type designation: Earthing clamp for flat conductors, with wing screw.
- Material: CuNi, zinc-plated.
- Clamping width: 23 mm.
- Rated current Ir: 18.7 kA (tr = 1 s).
- Source: Horstmann product page for earth potential connections.
