Product Overview

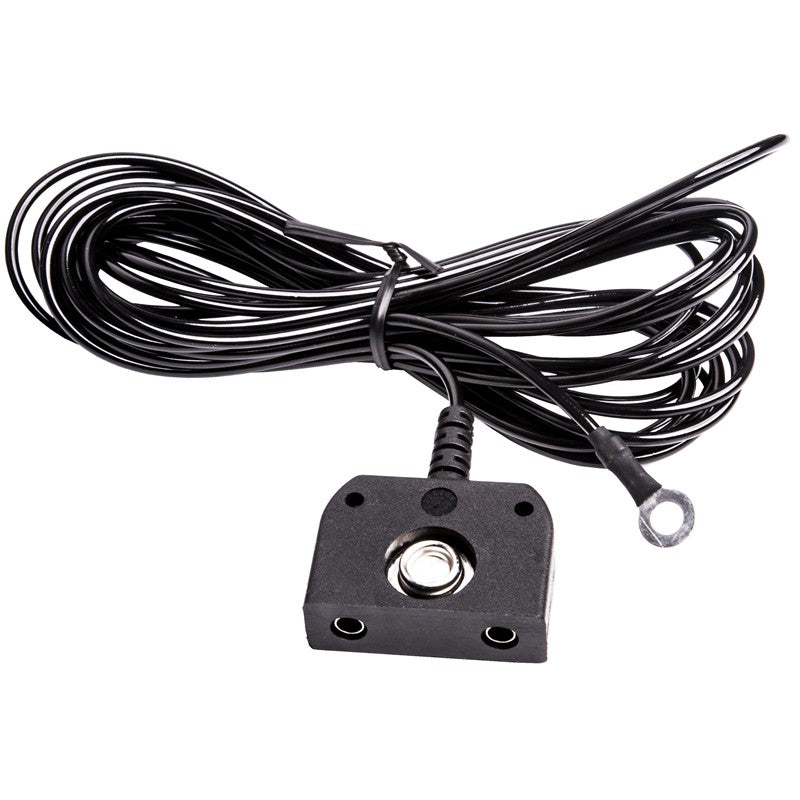

This 231250 earth-bonding point (EBP) cord from DESCO is a cord connection designed for grounding wrist straps via banana plugs. The product comes with a 4 m long cable and an integrated 10 mm stud designed to fit into a 10 mm socket on a mat.
Construction and Function
The 231250 includes the following verified features and components:
- 4 m cable.
- Built-in 10 mm stud, designed to be inserted into a 10 mm socket on a mat.
- Built-in 1 megohm resistor in the stud.
- Capacity to accept up to two banana plugs from wrist straps for connection to ground.
- Ends in an M5 ring terminal.
Typical Applications
The product's function is directly verified: the 231250 is used to connect up to two wrist straps via banana plugs to ground via an earth-bonding point. This application follows from the product's ability to accept banana plugs and its stud design for mat-socket connection.
Documentation
The information in this text is based on the product description from the manufacturer's product page for item 231250 (DESCO).
Specifications
- Product name: 231250.
- Type: Earth-bonding point (EBP) cord.
- Cable length: 4 m.
- Stud: 10 mm stud, for 10 mm socket on mat.
- Built-in resistance: 1 megohm (in stud).
- Connections: Accepts up to two banana plugs from wrist straps.
- Termination: M5 ring terminal.
- Previous item number (Vermason): J6448.
- Country of origin: Taiwan.
- Source: Desco Europe product page for item 231250.
