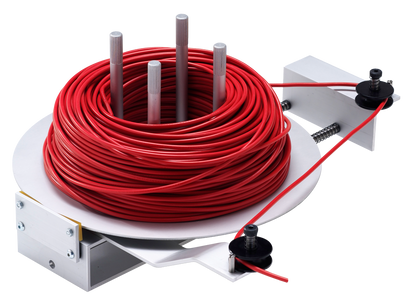

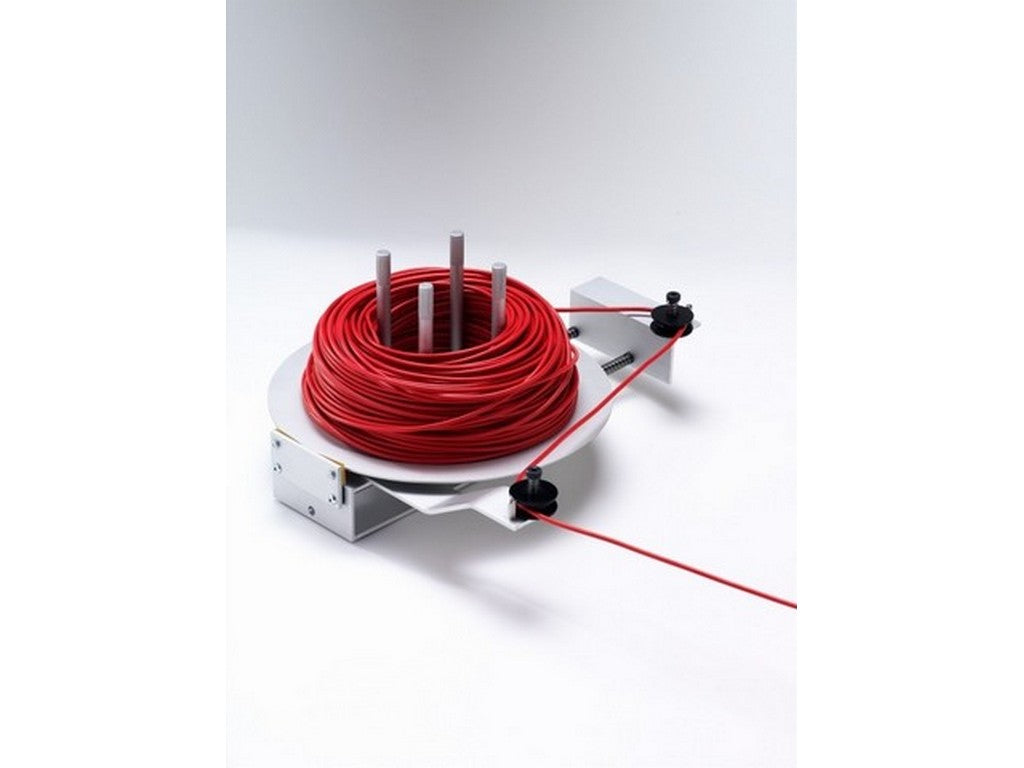

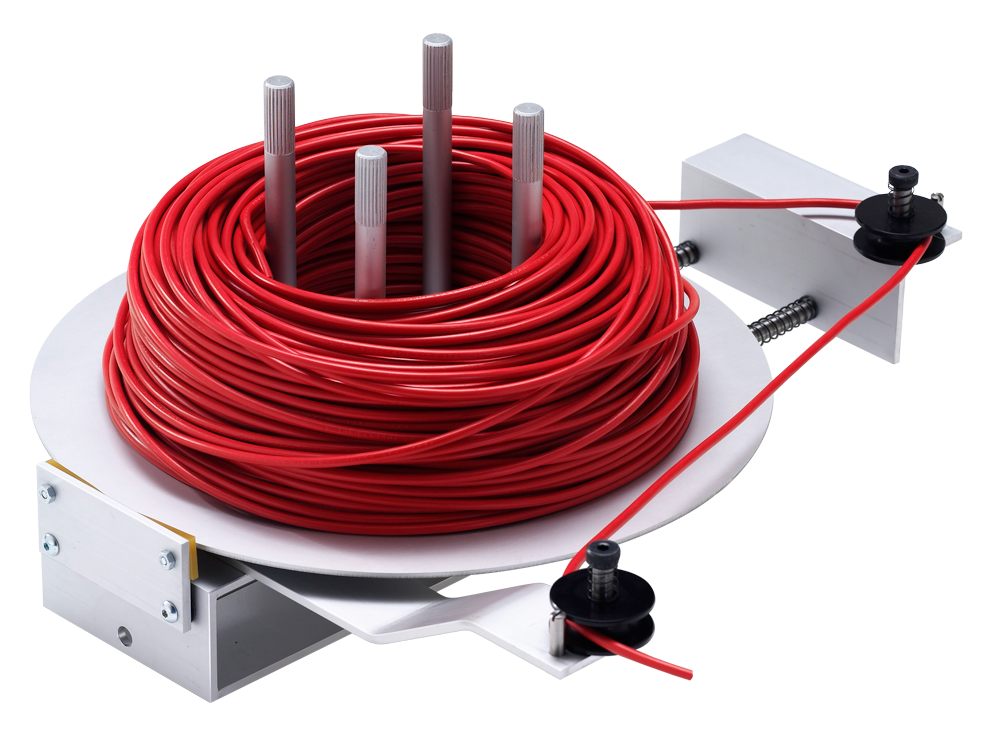

Cable Dispenser: GLW Cable Dispenser DR 30 (Article No. 006180)
What it is
The GLW Cable Dispenser DR 30 is an accessory for cable processing designed to uncoil cable reels during cutting and length measurement operations. The unit prevents cable tangling and twisting and ensures smooth feeding by means of an integrated brake. The DR 30 does not require its own motor and comes with a screw clamp for mounting on a workbench.
Functionality and Application
The primary function of the unit is to control cable tension during cutting, ensuring that the cable is fed continuously without twists or knots. The integrated brake provides a uniform pulling force, which, according to the manufacturer, improves the measurement precision of cutting equipment. The DR 30 is mounted directly on the workbench with the included screw clamp and operates without external power.
Typical Applications
- Uncoiling cable reels during cutting and length measurement operations to prevent twisting and knot formation.
- Ensuring smooth cable feeding for improved measurement accuracy with cutting equipment.
Specifications
- Product: GLW Cable Dispenser DR 30 (Article No. 006180)
- Manufacturer: GLW
- Turntable: 300 mm
- Cable coil core diameter: Ø 80–170 mm
- Cable coil maximum outer diameter: Ø 260 mm
- Cable coil maximum height: 120 mm
- Max. reel weight / load weight: 7 kg
- Weight (unit): 2 kg
- Dimensions (W x H x D): 420 x 380 x 200 mm
- Integrated brake for smooth cable feeding
- Does not require its own motor
- Includes screw clamp for mounting on a workbench
