Cable Gland from SIB — C5216200

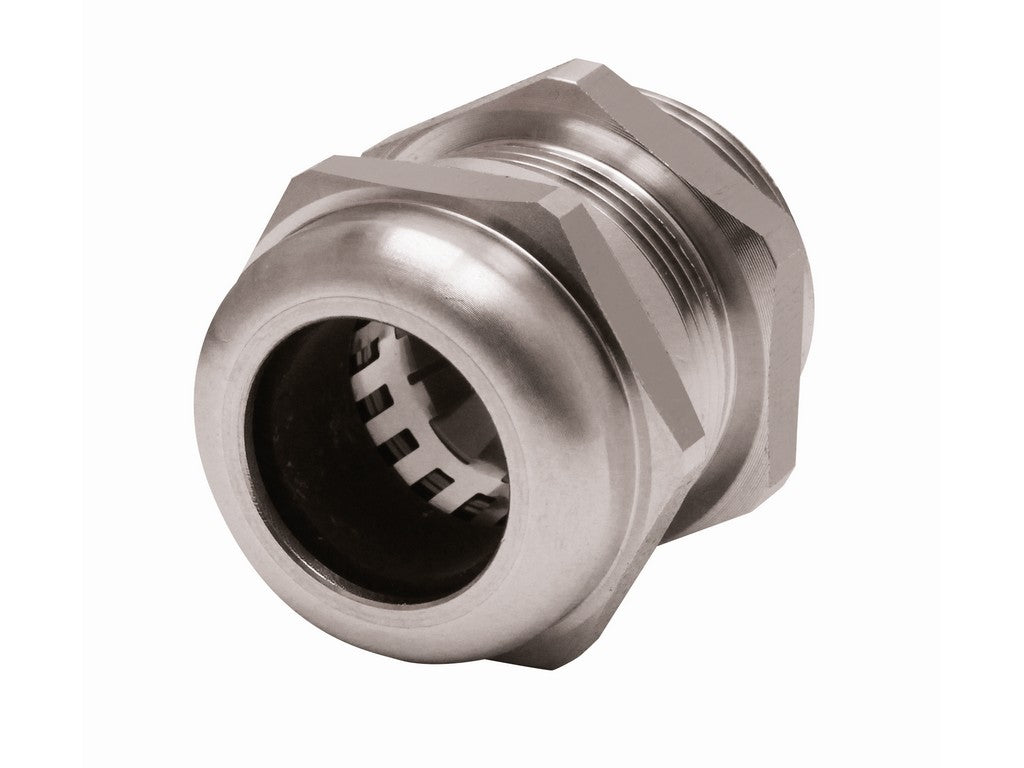

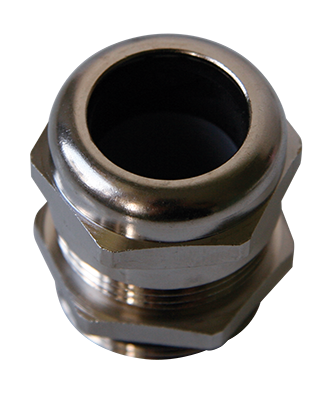

This cable gland (C5216200) from SIB is a nickel-plated brass compression fitting designed for cable entry in machines and equipment. The product is specified with M16 threads (EN 60423) and a clamping range for cable diameters, making it suitable for a tight connection between the entry point and the cable.

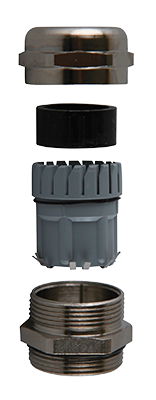

Materials and Sealing Components
- Body material: nickel-plated brass
- Cap / nut: nickel-plated brass
- Insert: PA6
- Gasket: neoprene 65 ShA
- O-ring: nitrile 70 ShA

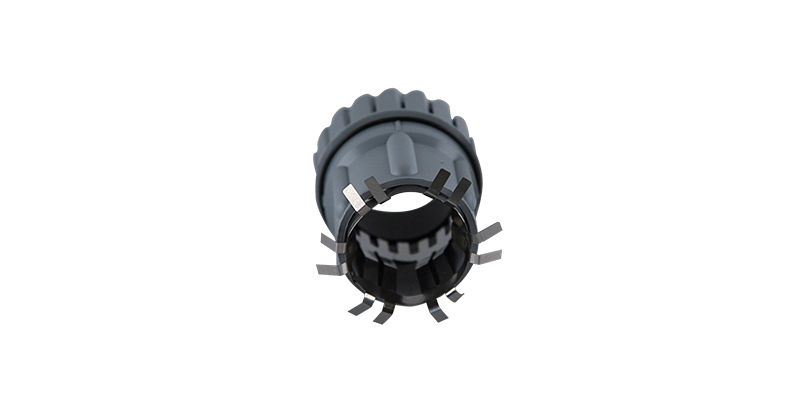

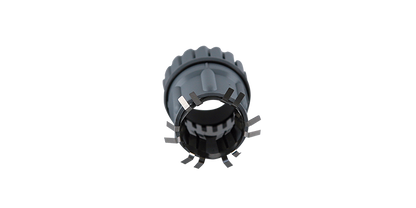

- Metal basket / contact: stainless steel
Protection and Temperature
- IP rating: IP68 (stated in manufacturer documentation)
- Operating temperature: -40 °C to +100 °C (stated in manufacturer documentation)
Typical Applications
The product is specified in the documentation for use on machines and equipment as a cable entry seal. The C5216200 is used as a mechanical and sealing component for guiding cables through enclosures or chassis.
Documentation
Technical information and dimensions can be found in the manufacturer's datasheet: See datasheet from manufacturer.
Specifications
- Manufacturer: SIB
- Type / reference: C5216200
- Thread: M16 (EN 60423)
- Clamping range / cable diameter: 4.0 mm – 9.5 mm
- Material: nickel-plated brass (body and nut)
- Sealing materials: neoprene 65 ShA; O-ring nitrile 70 ShA
- IP rating: IP68
- Operating temperature: -40 °C to +100 °C
- Weight (M16): 18 g (stated in manufacturer's table)
