Product Overview

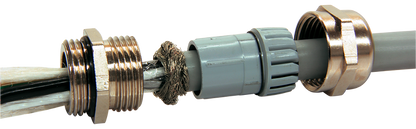

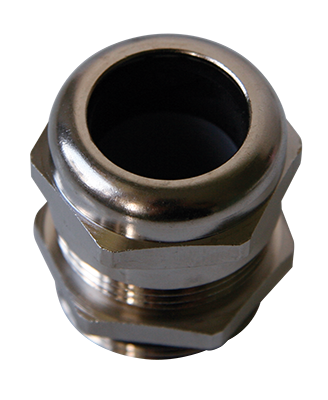

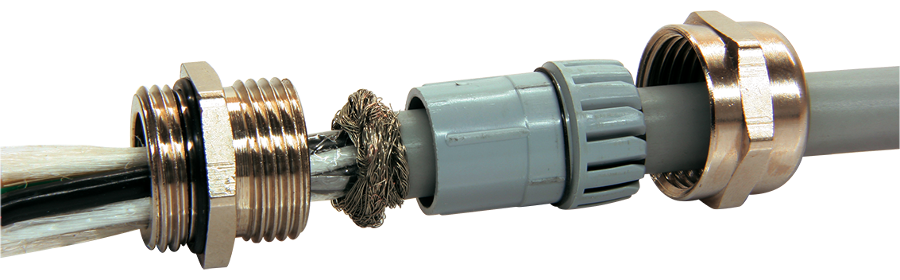

This SIB cable gland C5220100 (SIB-TEC EMC LIGHT) is an M20 cable gland made of nickel-plated brass. The product is specified for use in machinery and equipment and provides sealing and cable strain relief with EMC functionality, as indicated by the manufacturer.
Material and Sealing

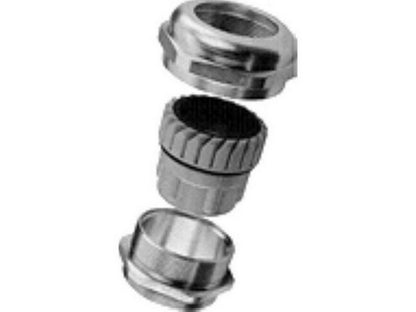

The C5220100 has a body and nut made of nickel-plated brass. Sealing components include a neoprene packing ring and an O-ring on the external thread, and clamping is achieved by using clamp lamella.
Technical Characteristics
- Metric thread: M20 (according to EN 60423, as specified)
- Cable clamping range: 7.0–13.0 mm
- Protection class: IP68
- Continuous operating temperature: -40 °C to +100 °C
- Material: nickel-plated brass (body and nut)
- Sealing materials: neoprene (65 Sh A) and nitrile O-ring (70 Sh A) according to manufacturer documentation
- Packaging quantity: 50 pcs per package
Documentation

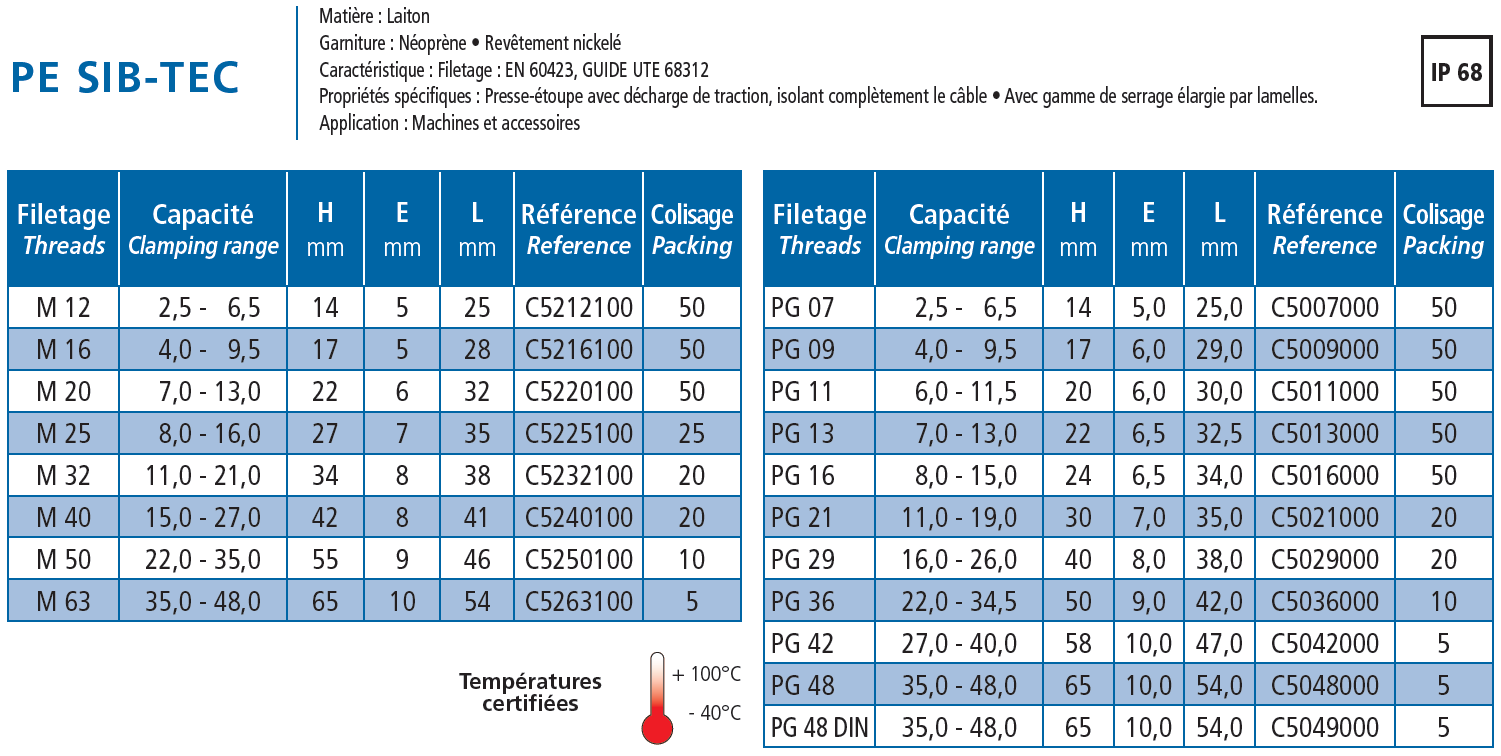

Further technical information and dimensions can be found in the manufacturer's datasheet. See manufacturer's datasheet
Typical Applications
The C5220100 is specified for use in machinery and equipment where an M20 cable gland with IP68 sealing and a cable clamping range of 7.0–13.0 mm is required. The manufacturer's description directly indicates this application.
Specifications
- Product name: C5220100 (SIB-TEC EMC LIGHT)
- Manufacturer: SIB
- Thread: M20 (EN 60423)
- Clamping range: 7.0–13.0 mm
- Material: nickel-plated brass
- Sealing: neoprene packing ring; O-ring (nitrile 70 Sh A)
- IP class: IP68
- Operating temperature: -40 °C to +100 °C
- Packaging: 50 pcs per package
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
