Product Overview

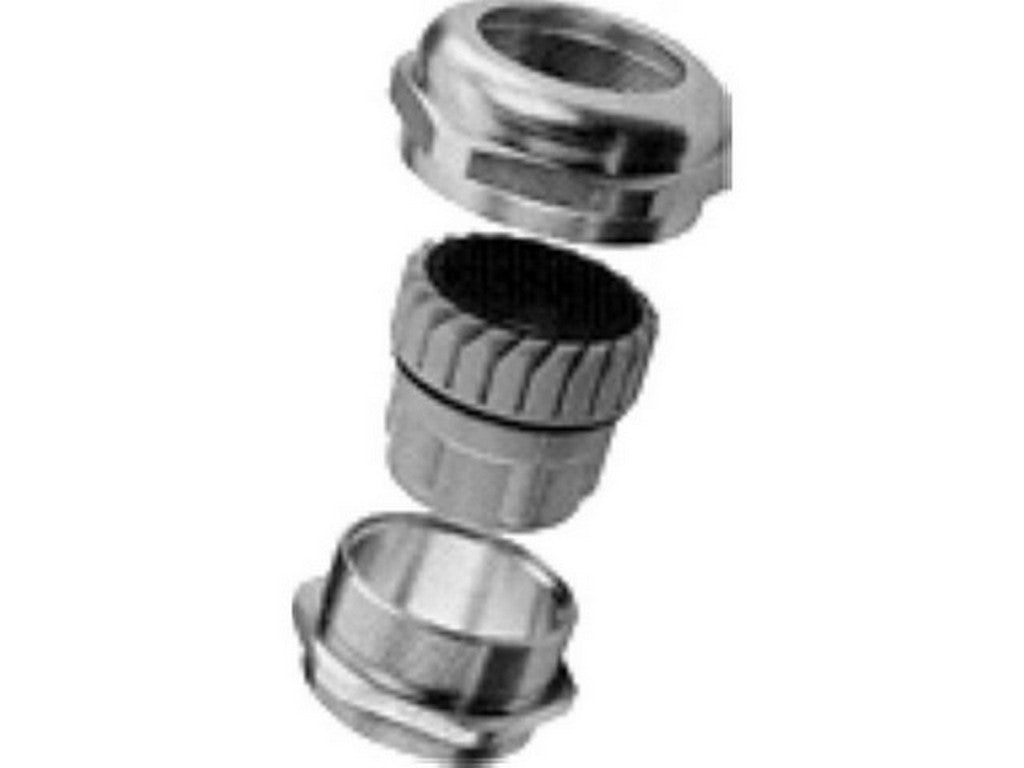

The SIB-TEC EMC LIGHT M25 is a cable gland from SIB with the manufacturer's reference C5225100. The primary function of the product is to provide mechanical fastening and sealing of cables when passing through items with an M25 thread. The product designation "SIB-TEC EMC LIGHT M25" is used in the manufacturer's documentation and on the product sheet.Materials and Seals
- Body and nut: brass, nickel-plated
- Insert: PA 6
- Gland/packing: neoprene 65 Sh A
- O-rings: nitrile 70 Sh A
Documentation
Technical documentation is available from the manufacturer. For detailed dimensions and product data, please refer to the manufacturer's PDF datasheet: View datasheet from manufacturer.Functional Properties
The description in the manufacturer's material indicates that the SIB-TEC EMC LIGHT M25 provides IP68 protection and has a specified operating temperature range. This information is documented in the manufacturer's datasheet and product overview.Specifications
- Manufacturer: SIB
- Manufacturer no.: C5225100
- Product name: SIB-TEC EMC LIGHT M25
- Type: cable gland (M25)
- Material: brass, nickel-plated
- Insert material: PA 6
- Gland/packing: neoprene 65 Sh A
- O-ring: nitrile 70 Sh A
- Cable diameter (clamping range): 8.0 mm – 16.0 mm
- Thread/size: M25
- Protection class: IP68
- Temperature range: -40 °C to +100 °C
- Weight (specified for M25 in manufacturer table): 46 g
