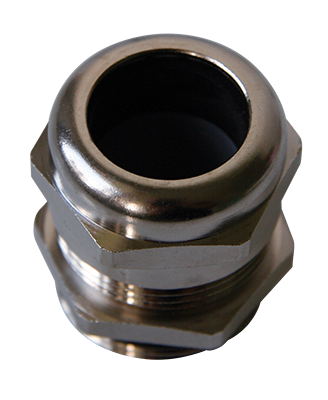

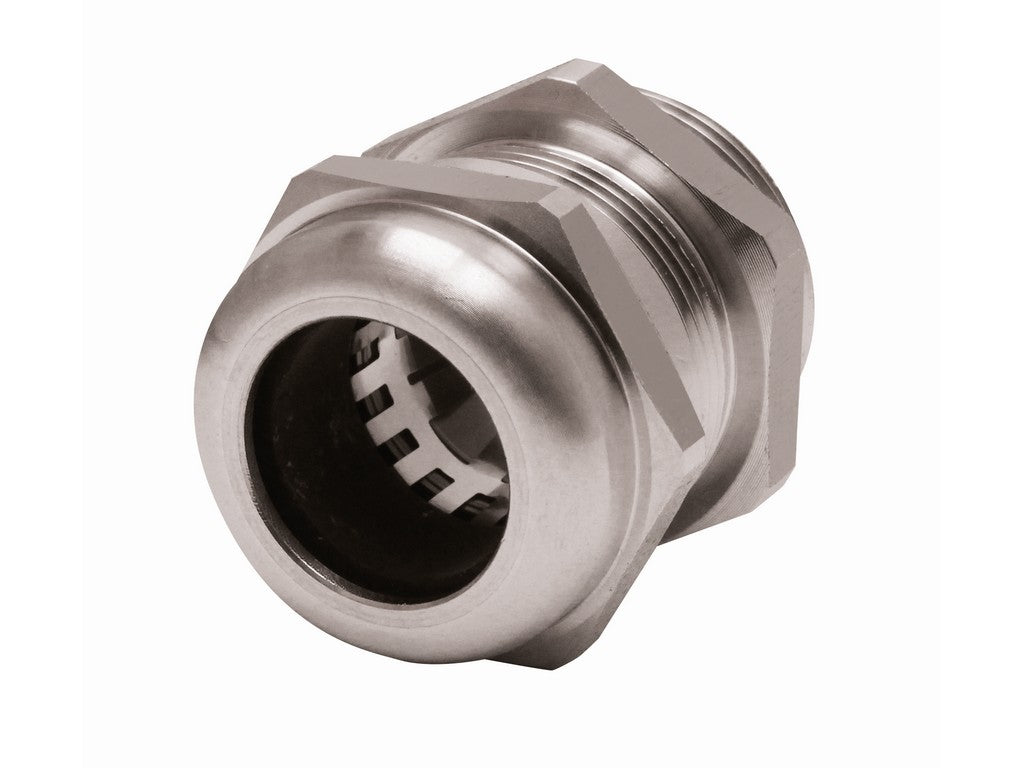

SIB-TEC EMC cable gland (SIB C5225200)
This SIB-TEC EMC cable gland, SIB C5225200, is a metric M25 cable gland designed for electromagnetic compatibility (EMC). The product is made of nickel-plated brass and comes with a neoprene sealing ring. The thread is based on EN 60423 metric thread, and the declared protection class is IP68.

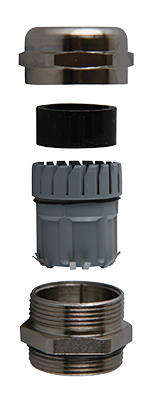

Materials and construction
- Housing and nut: nickel-plated brass
- Sealing ring: neoprene (65 ShA)
- O-ring: nitrile (70 ShA)
- Insert: PA6
- Metallic contact/insert grid: stainless steel (stated in manufacturer documentation)
SIB C5225200 is referenced in the manufacturer's technical documentation with detailed component materials and mounting parts. For complete technical information, please refer to the manufacturer's datasheet.
See datasheet from the manufacturer

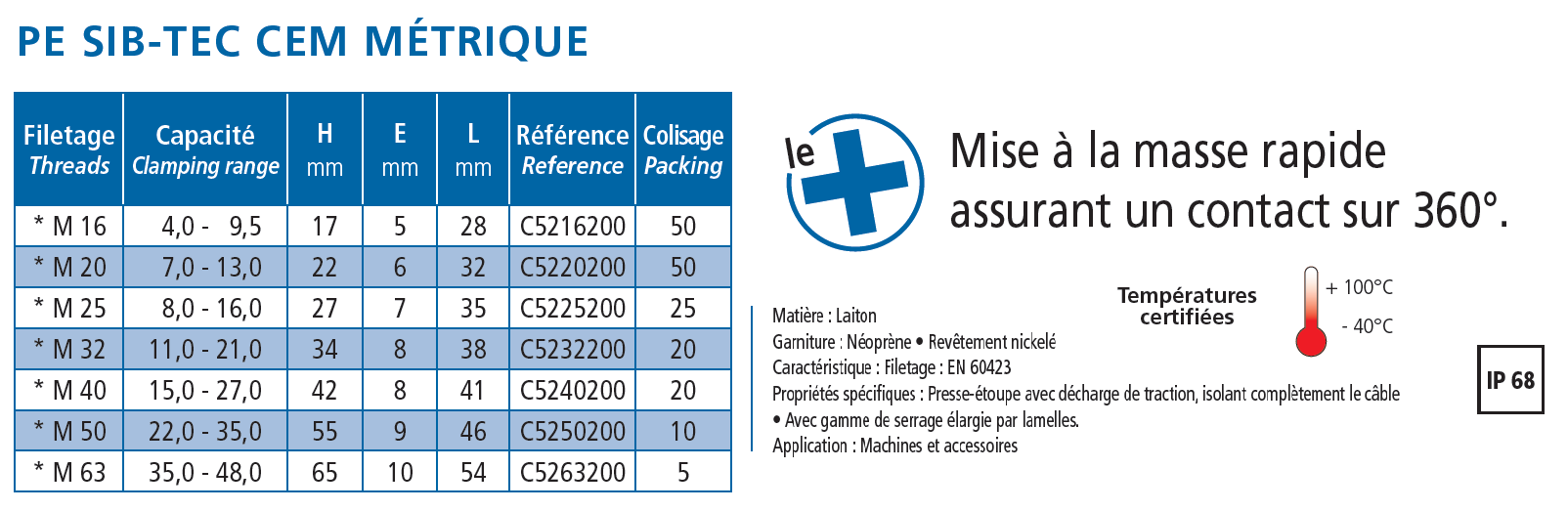

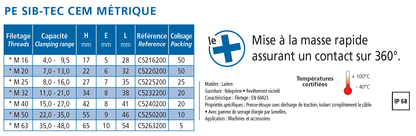

Specifications
- Manufacturer: SIB
- Manufacturer's item number: C5225200
- Product type: SIB-TEC EMC cable gland
- Thread standard: EN 60423 (metric)
- Thread size: M25
- Clamping range / cable diameter: 8.0 mm – 16.0 mm
- Material: nickel-plated brass (housing and nut)
- Sealing material: neoprene and nitrile (stated in datasheet)
- Protection class: IP68
- Operating temperature: -40 °C to +100 °C
- Weight (stated for M25 version): 46 g (according to manufacturer table)
Source: Manufacturer's technical documentation and product sheets (see datasheet link above).
