Product Overview

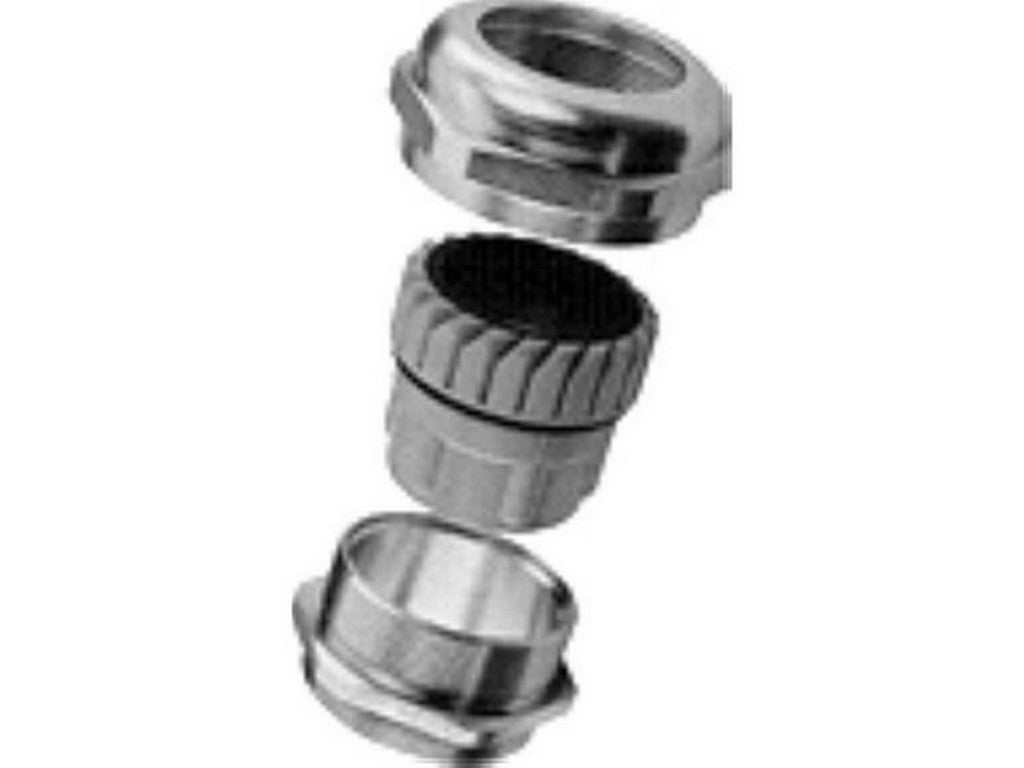

This cable gland is the SIB-TEC EMC LIGHT M32 from SIB, indicated under the manufacturer's reference C5232100. The product is an M32 cable gland with EN 60423 threads and is designed for sealing cables within the specified clamping range. The description below has been prepared solely based on manufacturer information and the verified datasheet.Construction and Materials
- Body: nickel-plated brass
- Cap/counter nut: nickel-plated brass
- Insert: PA 6 (plastic)
- Sealing ring: neoprene, 65 Sh A
- O-ring: nitrile, 70 Sh A
Functional Properties
The SIB-TEC EMC LIGHT M32 is rated with an IP68 degree of protection and a certified operating temperature from -40 °C to +100 °C. The gland has a specified clamping range of 11.0 mm to 21.0 mm and uses EN 60423 threads (M32) as its thread standard.Documentation
The manufacturer's technical documentation is available and can verify the above information: See datasheet from manufacturer.Specifications
- Manufacturer: SIB
- Manufacturer's reference number: C5232100
- Product name: SIB-TEC EMC LIGHT M32
- Thread: EN 60423 (M32)
- Material: nickel-plated brass (body and cap)
- Insert: PA 6
- Sealing ring: neoprene 65 Sh A
- O-ring: nitrile 70 Sh A
- Clamping range (min/max): 11.0 mm – 21.0 mm
- Degree of protection: IP68
- Operating temperature: -40 °C to +100 °C
- Packaging: supplied in packs of 20 pcs.
- Weight (indicated for M32 in manufacturer's table): 70 g
