Product Overview

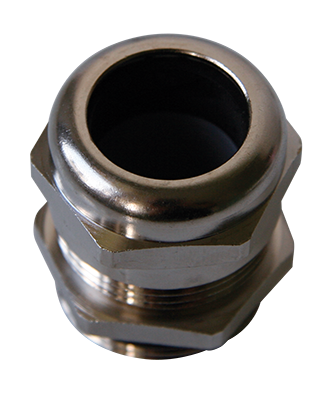

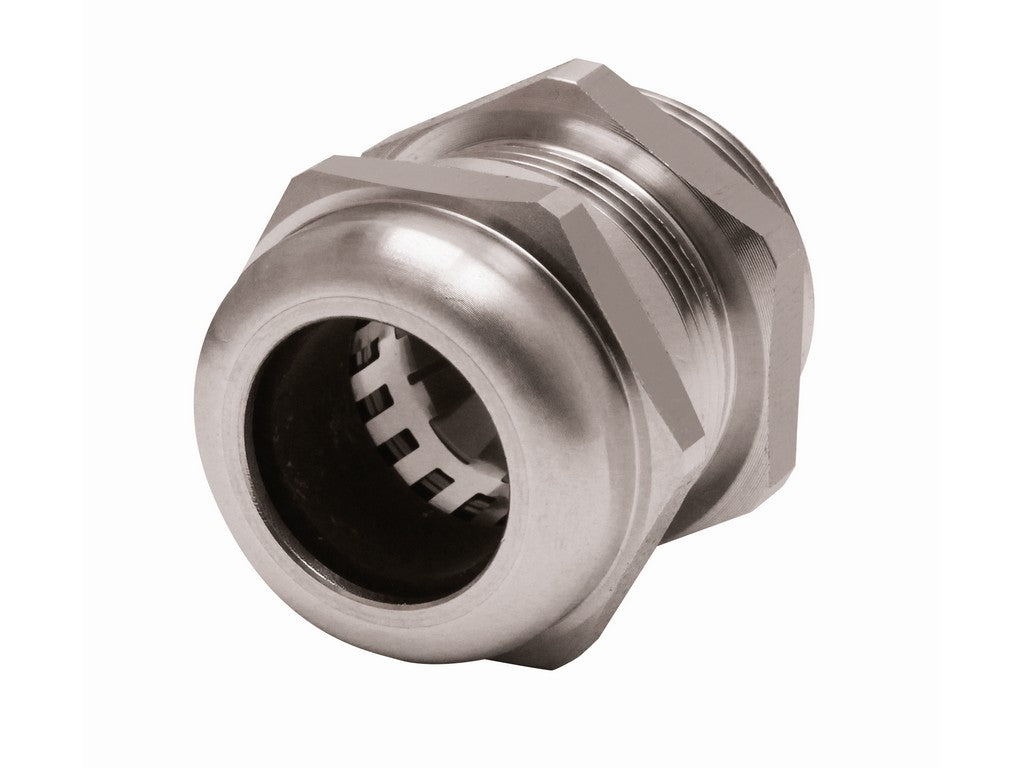

This product is a cable gland: Cable Gland brass SIB-TEC EMC M50 (reference C5250200) from SIB. The product is an EMC cable gland made of chrome-plated/nickel-plated brass with an M50 thread and is listed on the manufacturer's product page.
Function and Construction
The Cable Gland brass SIB-TEC EMC M50 (reference C5250200) is designed to provide EMC contact, mechanical strain relief, and sealing around the cable entry. According to the manufacturer's information, the product has the following features:
- Material: brass, nickel-plated (main parts) and stainless steel metal insert (metallic contact) — specified in the manufacturer's documentation.
- Seals: neoprene sealing ring and O-ring (nitrile) on the external thread.

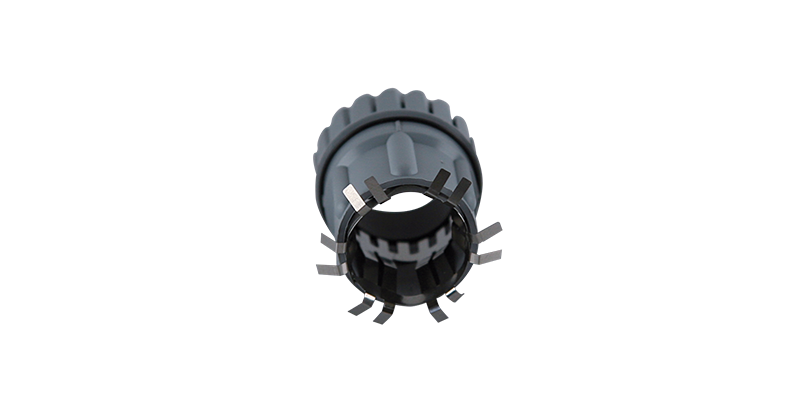

- Insulation and Strain Relief: fully insulated design, provides strain relief and wide clamping range via clamping lamellae.
- Thread: M50 (specified as compatible with EN 60423 in the product information).
- Protection class: IP 68 as specified by the manufacturer.
- Temperature range: operating temperature from -40 °C to +100 °C.
Documentation
Technical information and further details can be found in the manufacturer's datasheet documentation:
View datasheet from the manufacturer
Specifications
- Product name: Cable Gland brass SIB-TEC EMC M50 (reference C5250200)
- Manufacturer: SIB
- Type: EMC cable gland, nickel-plated brass
- Clamping range / cable diameter: 22.0 mm – 35.0 mm
- Thread: M50 (according to EN 60423 as stated by the manufacturer)
- Protection class: IP 68
- Seals: neoprene sealing ring and O-ring (nitrile) on the external thread
- Temperature (operation): -40 °C to +100 °C
- Features: fully insulated, strain relief, wide clamping solution via clamping lamellae
