Product Overview

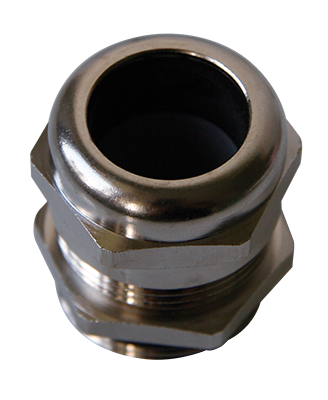

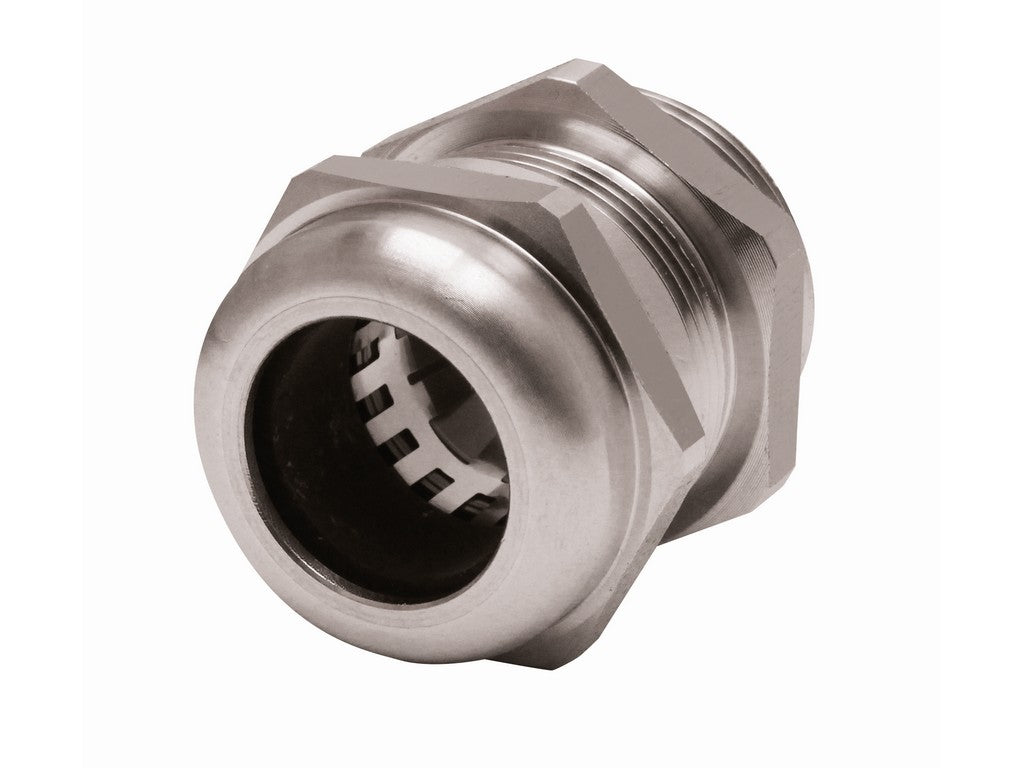

This EMC cable gland from SIB, manufacturer reference C5263200, is a nickel-plated brass cable gland designed for M63 metric threads (EN 60423). The C5263200 is designed to provide electrical contact for shielded cables, as well as mechanical cable strain relief and sealing in applications where sealing and EMC contact are required.Key Features
- Nickel-plated brass construction
- Thread: M63 (EN 60423 metric)
- Clamping range: 35.0 mm – 48.0 mm
- Neoprene sealing ring and O-ring on outer thread
- IP68 protection rating
- Operating temperature range: -40 °C to +100 °C
- Wide clamping capacity via clamping lamellas for cable strain relief
Typical Applications
C5263200 is used for EMC-related feedthroughs where both electrical contact between the cable shield and the feedthrough, as well as mechanical strain relief for the cable, are necessary. The product is suitable for cables with a diameter within the specified clamping range (35.0–48.0 mm) and where an IP68 seal and operation in the temperature range -40 °C to +100 °C are required.Documentation
For technical drawings and further product information, please refer to the manufacturer's datasheet.
See datasheet from the manufacturer
Specifications
- Product name: C5263200
- Manufacturer: SIB
- Material: Nickel-plated brass
- Thread: M63 (EN 60423)
- Clamping range: 35.0 mm – 48.0 mm
- Sealing ring: Neoprene
- O-ring: Located on outer thread
- Protection rating: IP68
- Operating temperature: -40 °C to +100 °C
- Cable strain relief: Wide clamping range via clamping lamellas
