Product Overview
This SIB-TEC PG09 brass cable gland (C5009000) from SIB is a metal cable gland with PG 09 thread. The description below is factual and based on information from the manufacturer.
Material and Sealing
- Material: nickel-plated brass
- Sealing: neoprene as the sealing element
Functional Properties
- Thread: PG 09
- Clamping range: 4.0 mm – 9.5 mm
- Strain relief: designed with lamellae for increased clamping range
- Protection class: IP68
Temperature and Packaging
- Operating temperature range: -40°C to +100°C (specified for neoprene seal)
- Packaging unit: 50 pcs. per package
Documentation

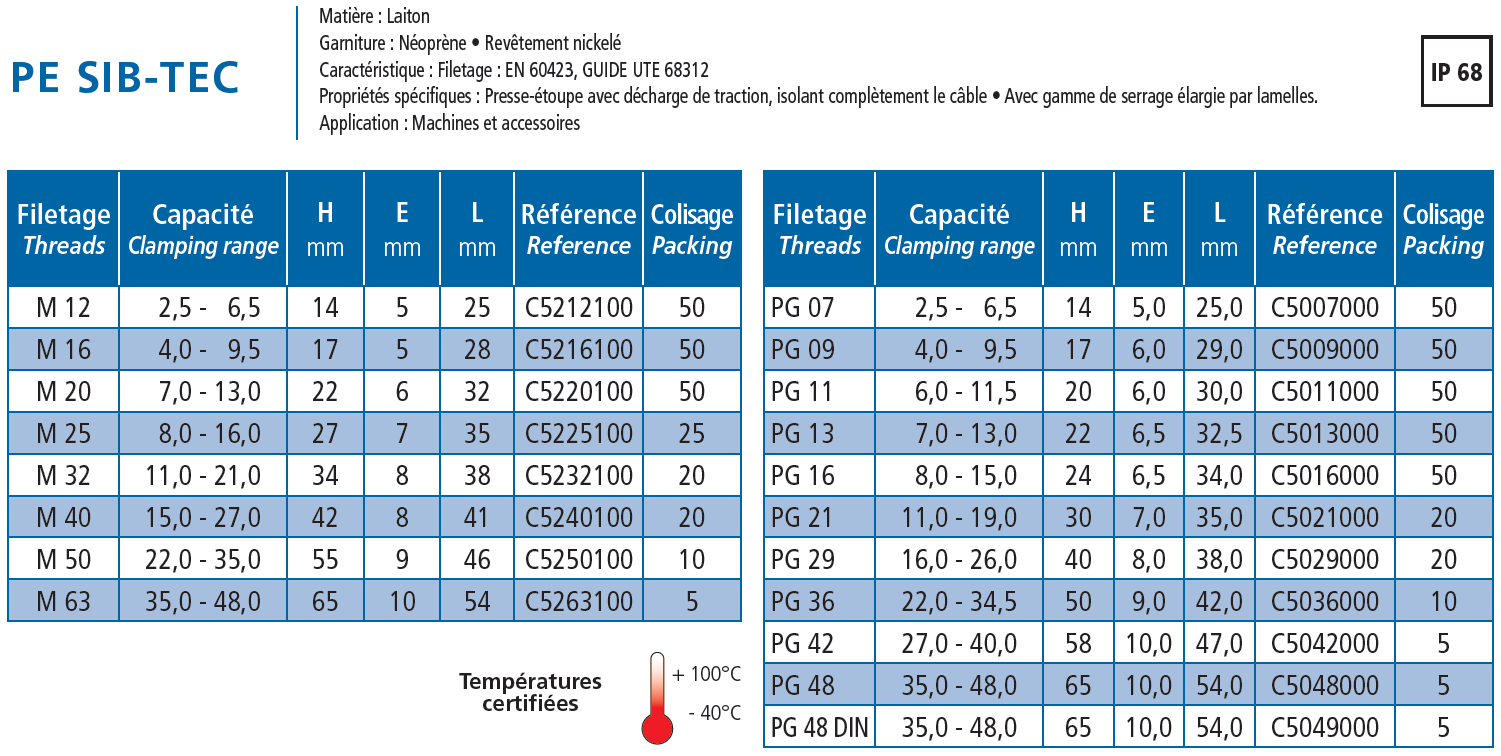

Further product and dimension tables can be found in the manufacturer's complete datasheet. See datasheet from the manufacturer
Specifications
- Product name: SIB-TEC PG09 brass cable gland
- Manufacturer: SIB
- Item number: C5009000
- Thread: PG 09
- Clamping range: 4.0 mm – 9.5 mm
- Material: nickel-plated brass
- Sealing: neoprene
- Strain relief: lamellae for increased clamping range
- Protection class: IP68
- Operating temperature: -40°C to +100°C
- Packaging quantity: 50 pcs.
