Product Overview

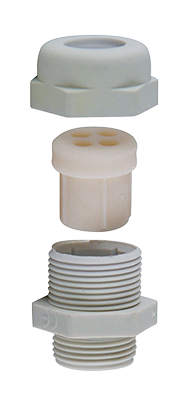

This cable gland from SIB, SIB WADI-TEC Z6722014, is a metric M20 multi-entry cable gland designed for multiple cables in the same entry point. The SIB WADI-TEC Z6722014 has five entries with a passage diameter (Ø) of 5 mm per entry opening. The product is manufactured from polyamide 6 reinforced with 25% glass fibre and uses a Tefabloc seal. The colour is specified as RAL 7035 (grey) and the type is specified with protection class IP68.Documentation
View datasheet from manufacturer
Technical Notes
Information regarding material, sealing system, colour, IP class, number of entries, and passage diameter is based on the manufacturer's reference for this part (Z6722014). The specified dimensions H and E are provided in the catalogue for this reference.
Specifications
- Manufacturer: SIB
- Product reference: Z6722014
- Product name: SIB WADI-TEC Z6722014
- Type: Metric M20 multi-entry cable gland
- Number of entries: 5
- Passage diameter per entry: Ø 5 mm
- Material: Polyamide 6 (PA6) reinforced with 25% glass fibre
- Sealing system: Tefabloc
- Colour: RAL 7035 (grey)
- Protection class: IP68
- Dimensions (catalogue information): H = 27 mm, E = 9 mm
