Product Overview

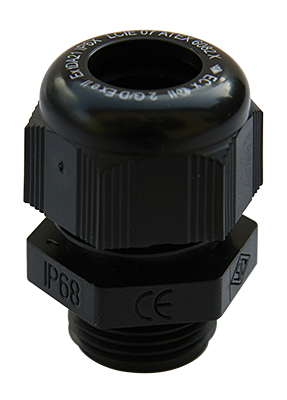

This SIB F8022050E cable gland from SIB is a polyamide cable gland with a flat neoprene gasket, designed to provide Ex e and tD type protection. The product is certified for equipment group II, categories 2 and 3 for gas and dust atmospheres, and is supplied in RAL 9005 (black).Technical Description
- Material: polyamide (specified in product data).
- Seal: flat neoprene gasket.
- Gland thread: M20.
- Cable diameter range: 7.0 mm – 12.0 mm.
- Protection class: IP68 (stated in product data).
- Temperature range: -35°C to +95°C (specified in documentation).
- Ex protection: Ex e and tD (specified in product text and documentation).
Typical Applications
This cable gland is used for introducing cables through walls or enclosures and for ensuring sealing at the cable entry. The function is described in the manufacturer's technical information as a component for leading and sealing cables in metal or plastic enclosures, requiring correct fastening and strain relief close to the gland.Documentation
The manufacturer's technical documentation and declaration of conformity are available on the product's technical page. For detailed certificate and installation information, please refer to the manufacturer's document: See datasheet from manufacturerSpecifications
- Product name: SIB F8022050E
- Material: polyamide
- Gasket: flat neoprene
- Thread: M20
- Cable Ø: 7.0 mm – 12.0 mm
- Protection class: IP68
- Ex protection: Ex e and tD (Equipment group II, category 2 & 3 for gas and dust)
- Colour: RAL 9005 (black)
- Operating temperature: -35°C to +95°C
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
