Product Overview

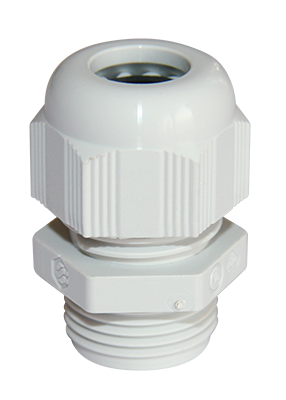

SIB part F7021650 is a cable gland from the SIB-TEC series with an M16/09 thread size. The product is designed as a plastic gland made of polyamide 6 V2 (UL94) with a neoprene seal, and has a specified ingress protection rating of IP68.
Function and Construction
SIB part F7021650 provides a combination of sealing and clamping for single cables through cabinets or plastic and metal plates. The gland uses lamellae to achieve an enlarged clamping range and specifies a clamping range of 2.5–8.0 mm. The stated IP68 rating documents the sealing capability according to the manufacturer's data.
Material and Operation
- Body material: Polyamide 6 V2 (UL94)
- Sealing ring: Neoprene
- Specified continuous operating temperature: -40 °C to +100 °C
- Color: RAL 7035 (light grey)
Packaging and Standard
The product is supplied in packs of 50 units. The thread size and associated mounting information are given as M16/09, and the thread standard is stated as EN 60423 in the manufacturer's material.
Technical Documentation
Detailed technical data and reference tables can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Specifications
- Manufacturer: SIB
- Manufacturer's item number: F7021650
- Type: SIB-TEC plastic cable gland
- Thread size: M16/09
- Material: Polyamide 6 V2 (UL94)
- Seal: Neoprene
- Ingress protection rating: IP68
- Clamping range: 2.5–8.0 mm (enlarged clamping range via lamellae)
- Continuous operating temperature: -40 °C to +100 °C
- Color: RAL 7035 (light grey)
- Packaging: 50 units per pack
- Thread standard: EN 60423
