Product Overview

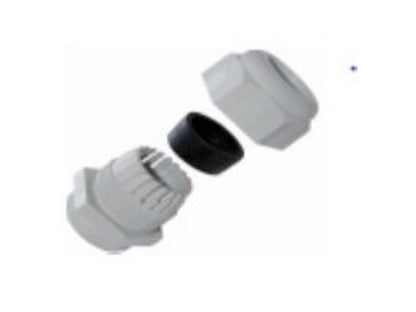

This cable gland SIB-TEC M16/11 (manufacturer reference F7021600) from SIB is specified in the manufacturer's SIB-TEC ISO catalog. The description below is based solely on documentation and information provided by the manufacturer.Material and Construction
The Cable gland SIB-TEC M16/11 (F7021600) is made of polyamide 6 V2 (UL 94) and comes with a neoprene sealing ring. The product's construction and choice of materials are evident from the manufacturer's catalog material.Functional Features
- External thread size: M16 (specified as external thread in manufacturer text).
- Clamping range (cable diameter): Ø3.5–10.0 mm.
- Protection class: IP68 (specified in manufacturer documentation).
- Continuous operating temperature: -40°C to +100°C (certified in manufacturer's information).
- Color: RAL 7035 (light grey) as specified by the manufacturer.
- Packaging: Supplied in packs of 50 units.
Documentation
The manufacturer provides a SIB-TEC ISO catalog and a 3D-PDF on its official website. Further technical data and drawings can be found in the manufacturer's datasheet: See datasheet from the manufacturer.Specifications
- Product: Cable gland SIB-TEC M16/11 (manufacturer reference F7021600)
- Material: Polyamide 6 V2 (UL 94)
- Sealing ring: Neoprene
- Clamping range: Ø3.5–10.0 mm
- External thread: M16
- IP rating: IP68
- Continuous operating temperature: -40°C to +100°C
- Color: RAL 7035 (light grey)
- Packaging: 50 units per pack
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
