Product Overview

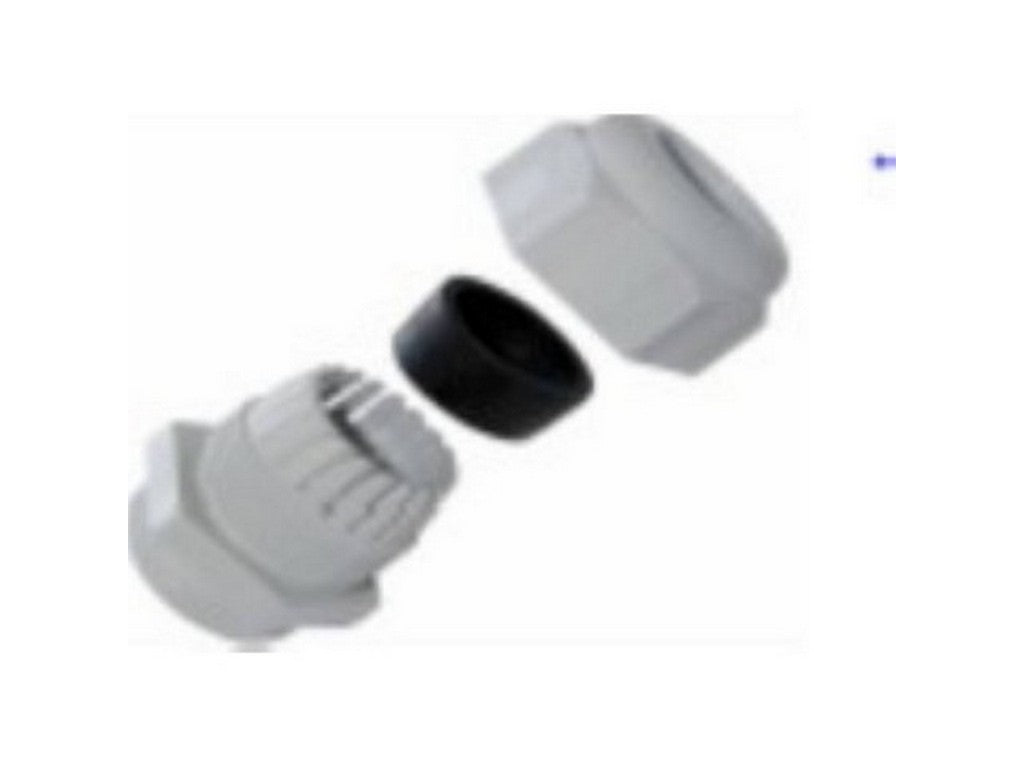

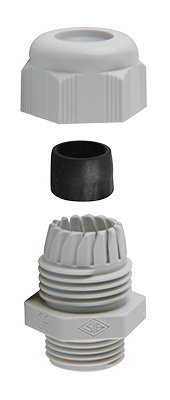

SIB reference F7000900 is a plastic cable gland (SIB-TEC) with PG 09 thread. The product is designed as a complete cable gland for securing and sealing cable entries in cabinets or similar installations.Materials and Sealing
- Body: Polyamide 6 V2 (according to UL 94)
- Sealing ring: Neoprene
Environmental and Operational Characteristics
- Protection class: IP68
- Certified operating temperature range: -40 °C to +100 °C
Packaging and Color
- Standard color: RAL 7035 (grey)
- Standard packaging quantity: 50 pcs.
Documentation
The manufacturer's technical information and catalog data can be found in the official datasheet: See datasheet from manufacturer.
Specifications
- Product name: SIB reference F7000900
- Type: Plastic cable gland with PG 09 thread
- Clamping range: 2.5 mm to 8.0 mm
- Body material: Polyamide 6 V2 (according to UL 94)
- Sealing: Neoprene
- Protection class: IP68
- Operating temperature: -40 °C to +100 °C
- Standard color: RAL 7035 (grey)
- Standard packaging: 50 pcs.
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
