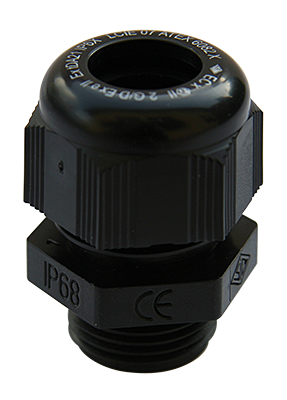

PG16 Plastic Cable Gland from SIB
SIB F8001600 is a PG16 plastic cable gland specified by the manufacturer SIB. The product's primary function is to provide mechanical fastening and sealing of cables via PG16 threaded bushings. The description below is based on information from the manufacturer's product page and datasheet.
Material and Construction
- Body Material: Polyamide 6 (PA 6)
- Seal: Neoprene gasket
- Color: RAL 9005 (black) as stated on the manufacturer's page
Properties
- Thread: PG16
- Cable outer diameter (clamping range): 7.0 mm – 14.0 mm
- Protection class: IP68 (stated by the manufacturer)
- Temperature range for continuous use: -40°C to +100°C
Documentation
Further technical data and dimensions can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Specifications
- Manufacturer: SIB
- Manufacturer Part Number: F8001600
- Product: PG16 plastic cable gland
- Material: Polyamide 6 (PA 6)
- Seal: Neoprene
- Clamping Range: 7.0 mm – 14.0 mm
- Thread: PG16
- Protection Class: IP68
- Temperature, continuous use: -40°C to +100°C
- Color: RAL 9005 (black)
Sources
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
