STH-REEL2310-30j

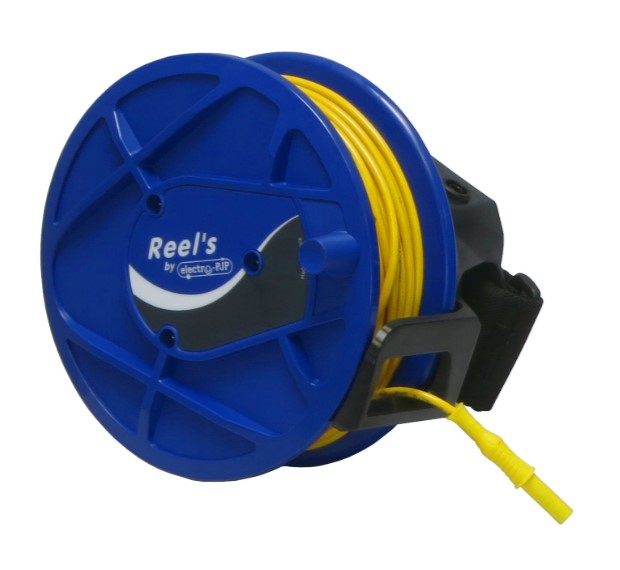

This is a hand-operated cable reel for measurement and installation work, where a practical way to handle a longer Ø4 mm measuring cable is desired. It has two female connectors and one male connector in Ø4 mm format, so it fits into common test and measurement equipment where this type of connection is used.
The reel is rated for 1000 V CAT III, so it is intended for use in a professional measurement context where the connection between the instrument and the cable needs to be managed. When the cable is wound up, the nominal current is 2 A. When a 2.5 mm² cable is fully unwound, it is rated for up to 36 A.
The housing is made of ABS with UL94 V0 classification, and the metallic contact parts are made of nickel-plated brass. In practice, this means a robust construction where both insulation and contact surfaces are chosen for technical use.
Typical Applications
It is particularly used when there is a need to move a Ø4 mm-connected measuring cable back and forth in a more organized manner, for example in control and installation work. It is available with cable lengths of 30 m and 50 m.
Specifications
- Type: STH-Reel
- Reference: STH-Reel231[X]-[L]-#
- Ø4 mm connections: 2 female connectors and 1 male connector
- Rating: 1000 V CAT III
- Nominal current: 2 A with cable wound up
- Nominal current: up to 36 A with 2.5 mm² cable fully unwound
- Available cable lengths: 30 m and 50 m
- Housing material: ABS UL94 V0
- Metal part: nickel-plated brass
