Product Overview

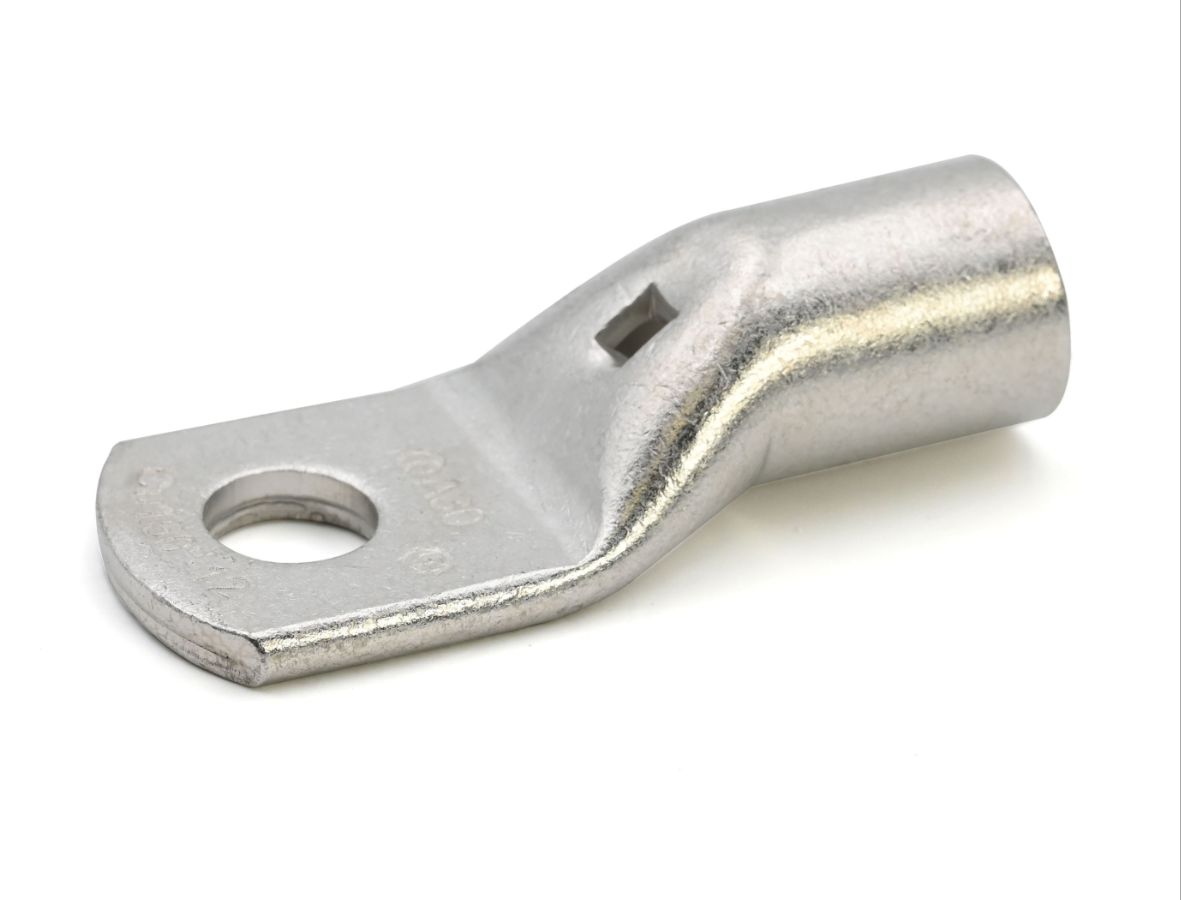

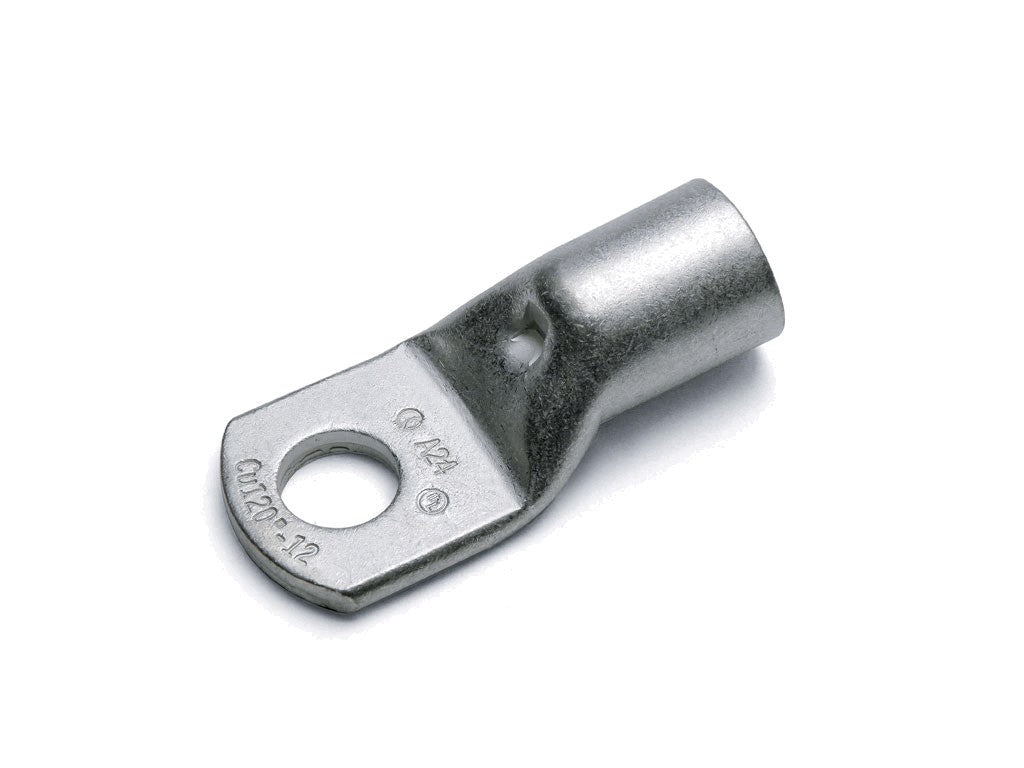

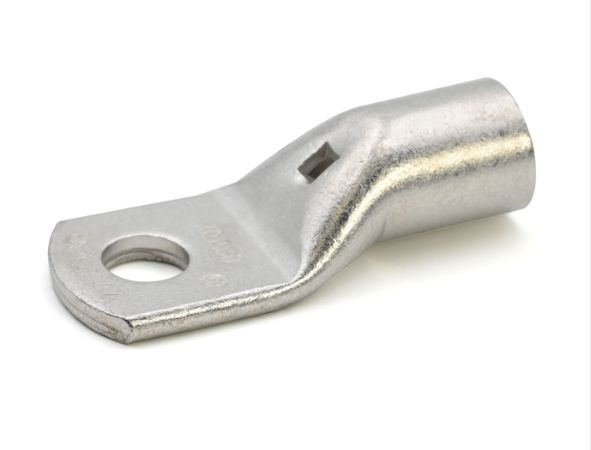

The Cembre A06-M5 is a tin-plated copper ring terminal from the A-M series, designed for terminating copper conductors using crimping. The product is developed to provide a mechanical and electrical connection between the conductor and a screw connection with an M5 screw dimension.Design and Materials
- Electronically drawn (electrolytic) copper with a declared purity greater than 99.95%.
- Tin plating on the copper; datasheet indicates at least 3 µm tin plating.
- Hexagonal crimping pattern (hexagonal indent) for crimp.
- Includes inspection hole (inspection / spy hole) in lugs for visual verification of correct conductor insertion.
- Annealed design of the conductor part.

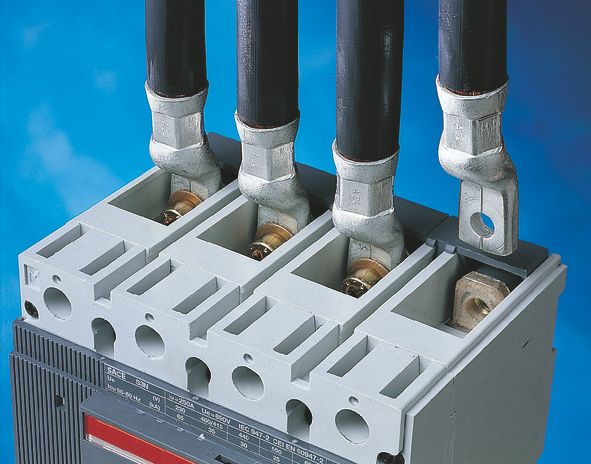

Function and Installation
The Cembre A06-M5 functions as a crimp-type ring terminal for copper conductors. The product is specified for conductor cross-sections of 1.5–2.5 mm² and is suitable for both flexible (fine stranding) and low-stranded conductors, as indicated in the manufacturer's product data. The ring terminal fits an M5 screw (indicated ØD 5.3 mm) and is mechanically fastened by crimping with appropriate tools and die. The datasheet states that correct tool selection and number of crimps must be followed during installation. See datasheet from the manufacturerSpecifications
- Manufacturer: CEMBRE
- Manufacturer's Part Number: 2101150
- Type: Tin-plated copper ring terminal (A-M series)
- Conductor Cross-section: 1.5–2.5 mm² (flexible and low-stranded conductors)
- Screw Fitting: M5 (ØD 5.3 mm)
- Crimp: Hexagonal indent crimp geometry
- Inspection Hole: Yes (inspection/spy hole)
- Condition: Annealed
- Material: Electrolytic copper, purity > 99.95%
- Tin Plating: ≥ 3 µm (according to manufacturer's datasheet)
- Operating Temperature Range: −50 °C to 150 °C
- Minimum Packaging: 100 pcs.
- UL Listing: UL listed per UL486A - 486B (up to 35 kV, File no. E125401) — indicated in manufacturer's documentation
