Product Overview

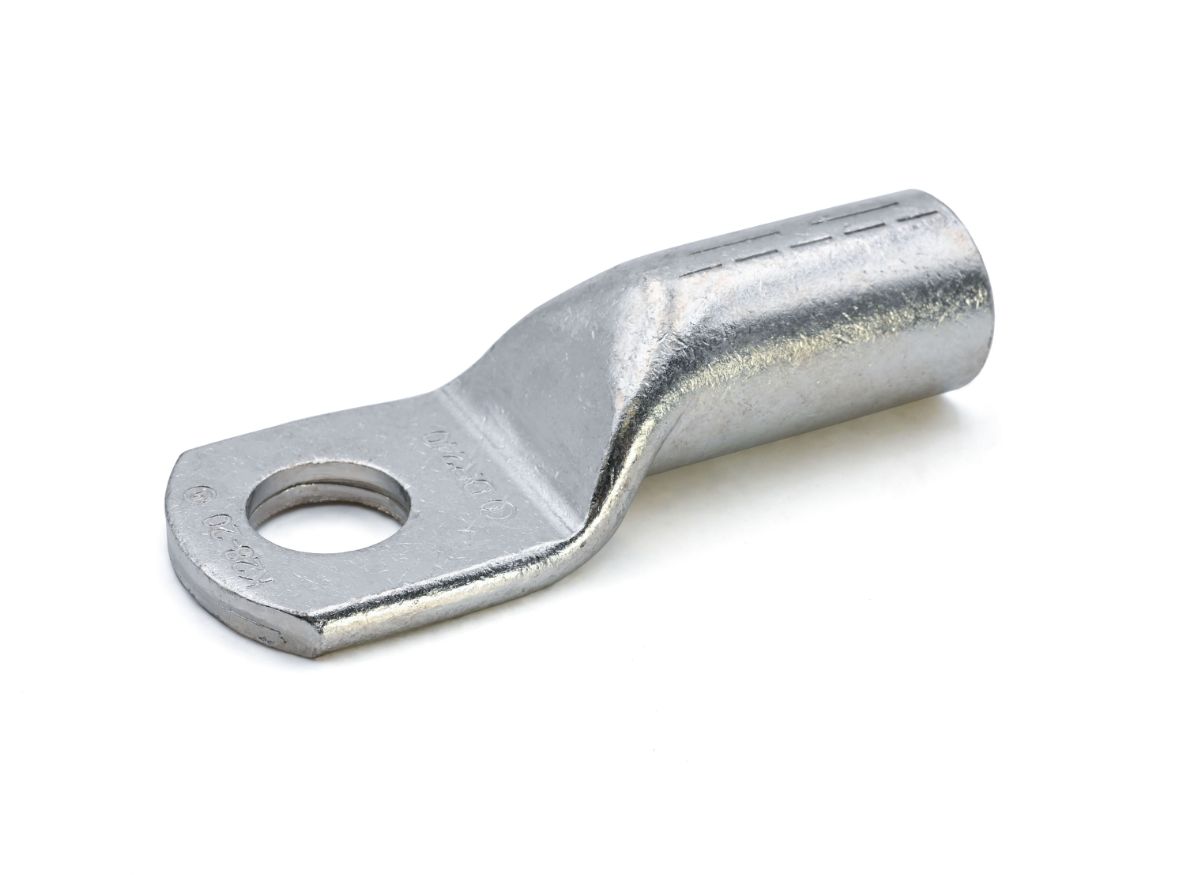

The DR16-10N is a ring terminal from CEMBRE's DR-N series, manufactured to DIN 46235 for connecting copper conductors. The product is specified for a 16 mm² conductor cross-section and features a single mounting hole with an M10 screw thread and ØD = 10.5 mm. The DR16-10N is supplied in electrolytic copper with tin plating and is designed for crimp connections for copper conductors.Application and Installation
The description and manufacturer's datasheet provide the basic installation instructions: select the correct connection for the conductor size, use appropriate crimping tools and forming dies, strip the cable to the recommended length (22 mm), insert the conductor fully into the lug's barrel, and perform the specified crimps, starting from the lug's flange side. For tightening, 20 Nm is recommended for high-conductivity screws and 35 Nm for grade 8.8 screws.Technical Reference
- Material: electrolytic copper, density specified in manufacturer's material. - Surface: tin plating as specified in manufacturer documentation. See manufacturer's datasheetSpecifications
- Product: DR16-10N
- Manufacturer: CEMBRE
- Manufacturer Part Number: 2389160
- Type: Ring Terminal (DR-N series) in accordance with DIN 46235
- Conductor Cross-section: 16 mm²
- Hole: M10, ØD = 10.5 mm
- Overall Length (L): 50.5 mm
- Recommended Stripping Length: 22 mm
- Recommended Tightening Torques: 20 Nm (high-conductivity screws), 35 Nm (grade 8.8 screws)
- Material: Electrolytic copper (≥99.95%), tin-plated
- Operating Temperature: −50 °C to 150 °C
- Compliance: RoHS
- UL Listed: in accordance with UL486A - 486B (up to 35 kV, file no. E125401)
