Product Overview

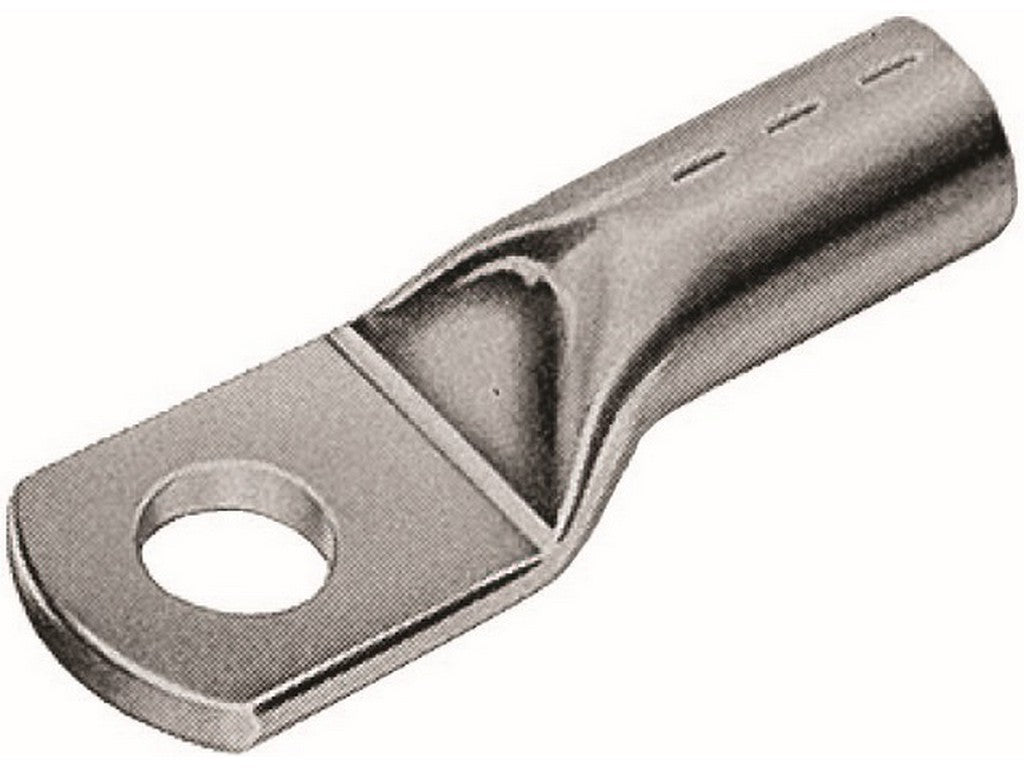

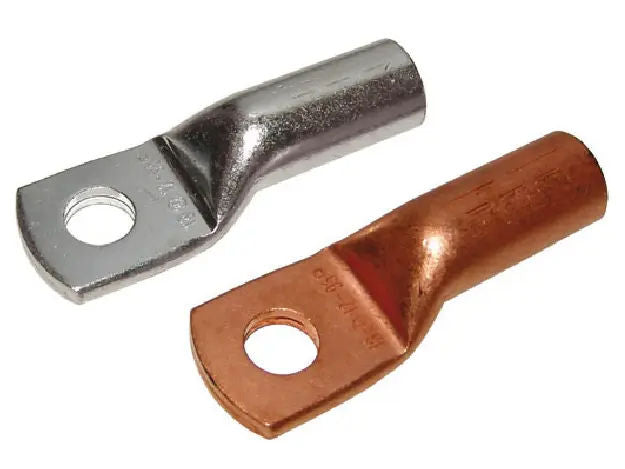

This Cu DIN series straight tubular cable lug ICD168 is specified for DIN 46235 and rated for 16 mm² nominal cross-section. The ICD168 is designed for use with solid, stranded, fine, and extra-fine conductors and is manufactured from Cu-HCP according to DIN EN 13600. The surface can be electro-tinned or plain, as indicated by the manufacturer's product documentation.Material and Standards
- Material: DIN EN 13600 Cu-HCP.
- Standard: DIN 46235.
- Original manufacturer designation: Intercable Tools product series ICD.
Typical Applications
- Used for connecting solid conductors.
- Used for connecting stranded conductors.
- Suitable for fine and extra-fine stranded conductors.
Dimensions and Mechanical Limits

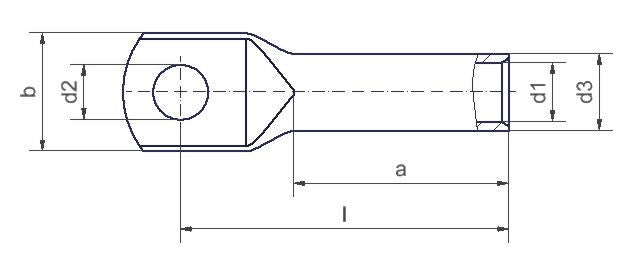

The ICD168 is specified with an M8 screw and the listed geometric measurements, as shown in the manufacturer's table. Dimensionally, the ICD168 is specified with d1 = 5.5 mm, d3 = 8.5 mm, d2 = 8.4 mm, b = 13 mm, l = 37 mm, and a = 20 mm.Documentation
Product information and table values are documented by Intercable Tools on the manufacturer's product page (Intercable Tools / Intercable CEE). For further technical details, please refer to the manufacturer's product page as a source.Specifications
- Product name: ICD168.
- Manufacturer: WEITKOWITZ (specified manufacturer).
- Part number: ICD168 (Manufacturer part number specified).
- Type: Cu DIN series straight tubular cable lug.
- Nominal cross-section: 16 mm².
- Screw: M8.
- Material: DIN EN 13600 Cu-HCP (electrolytic copper according to manufacturer's text, stated >99.95% purity in manufacturer's product text).
- Surface: electro-tinned or plain.
- Dimensions: d1 = 5.5 mm; d3 = 8.5 mm; d2 = 8.4 mm; b = 13 mm; l = 37 mm; a = 20 mm.
- Source: Intercable Tools product page (Intercable CEE).
