ICR168SL — Tubular cable lugs (R-series)

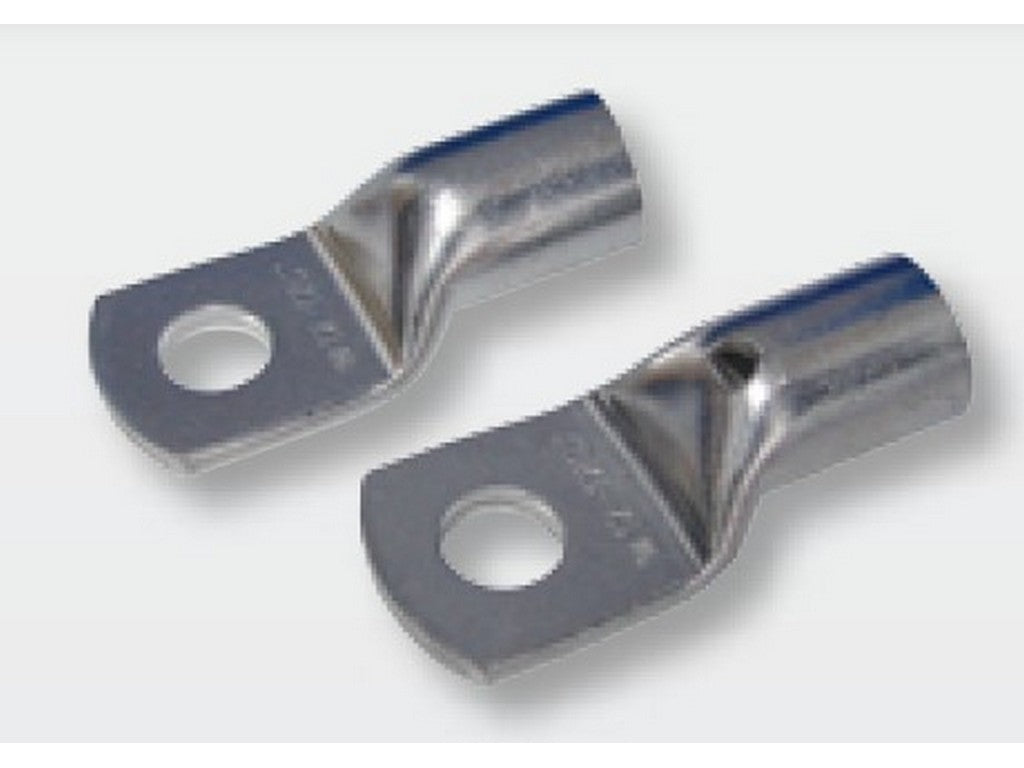

ICR168SL is a tubular ring cable lug from the R-series designed for copper conductors. The product is uninsulated and comes with an inspection hole (SL) to check for proper insertion of the conductor. The connection thread is M8, and the nominal cross-section is 16 mm². The material is copper with a tin-plated surface.
Technical characteristics
- Type: ICR168SL (R-series, with inspection hole)
- Nominal cross-section: 16 mm²
- Connection thread: M8
- Insulation: Uninsulated
- Material: Copper with tin plating
- Flange type: Ring, connection angle 180°
Documentation
Product data and dimensions are verified in the manufacturer's product list for the R-series (Intercable Tools / Weitkowitz). See the manufacturer's product overview for R-series variants for further range information.
Typical applications
ICR168SL is intended for electrical connection of copper conductors with a nominal cross-section of 16 mm² and is mounted on screw/bolt connections with M8 thread. The inspection hole allows checking for correct insertion of the conductor before assembly.
Specifications
- Product name: ICR168SL.
- Manufacturer: WEITKOWITZ.
- Type/series: R-series, with inspection hole (SL).
- Nominal cross-section: 16 mm².
- Connection thread: M8.
- Dimension d1: 5 mm.
- Dimension d3: 8 mm.
- Dimension D2: 8 mm.
- Dimension B: 15 mm.
- Dimension L: 29 mm.
- Dimension A: 13 mm.
- Inspection hole: Yes (SL).
- Insulation: Uninsulated.
- Material/surface: Copper, tin-plated.
- Packaging: 50 pcs per pack.
- Net weight: 1.04 kg per 100 pcs (listed in manufacturer table).
- Manufacturer item number: ICR168SL.
Source: Manufacturer's product list for the R-series (Intercable Tools / Weitkowitz).
The content has been generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
