Tubular Cable Lugs: ICR5010SL

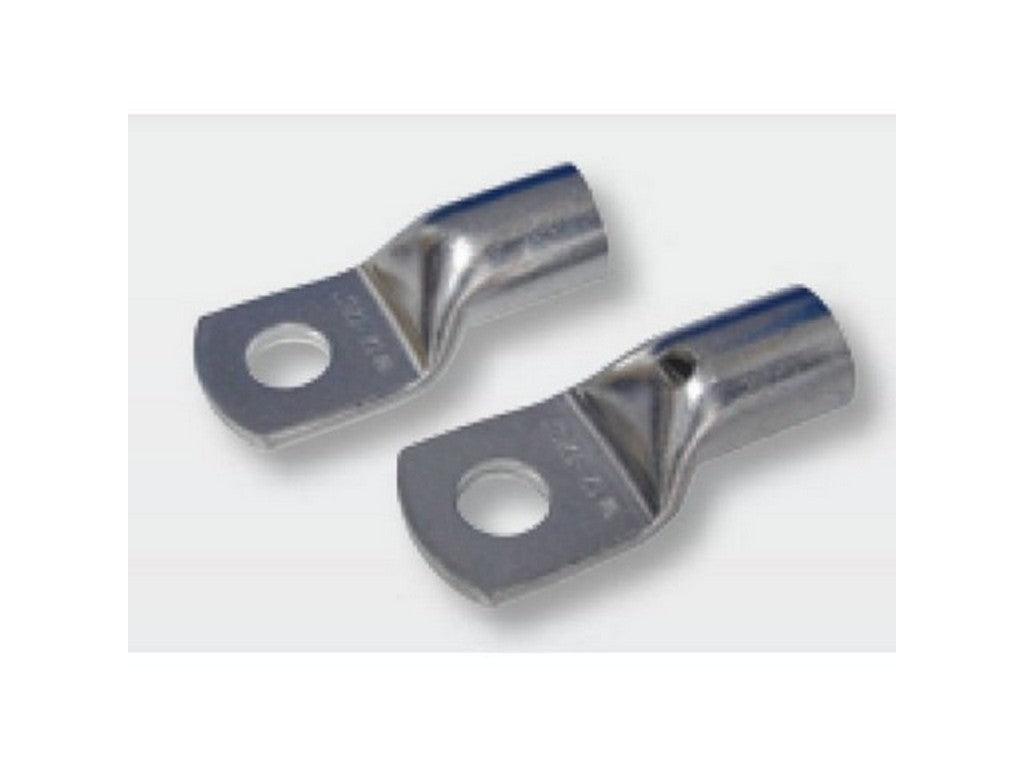

ICR5010SL is a tubular cable lug (Rohrkabelschuh) from Intercable Tools' R-series with an inspection hole. The product is listed with a nominal conductor cross-section of 50 mm² and a metric connection thread size M10. The description and table data on the manufacturer's product page indicate both geometric dimensions, packing size, and net weight.
Technical Overview
- Product: ICR5010SL
- Type: R-series tubular cable lug with inspection hole
- Nominal conductor cross-section: 50 mm²
- Connection thread (metric): 10 (M10)
Typical Applications
ICR5010SL is described on the manufacturer's product page as suitable for connecting the following conductor types:
- Multi-stranded conductors
- Fine-stranded conductors
- Compacted multi-stranded conductors
- Solid round conductors or sector conductors
Dimensions and Packaging
- Dimensions for ICR5010SL: d1 = 10 mm, d3 = 14 mm, D2 (hole) = 10 mm, B = 20 mm, L = 40 mm, A = 19 mm.
- Pack quantity: 25 pcs. per pack (listed on the product list).
- Net weight: 3.17 kg per 100 pcs. (indicated in the product table).
Documentation
Technical data and table information are sourced from the manufacturer's official product overview for the R-series with inspection hole.
Specifications
- Product name: ICR5010SL
- Manufacturer: WEITKOWITZ (listed in input)
- Nominal conductor cross-section: 50 mm²
- Connection thread: M10 (10)
- Dimensions: d1=10 mm, d3=14 mm, D2=10 mm, B=20 mm, L=40 mm, A=19 mm
- Pack size: 25 pcs.
- Net weight: 3.17 kg per 100 pcs.
